Secondary Air Injection Pump Pipe Replacement
WARNING: This page is about a different variant/trim than selected.

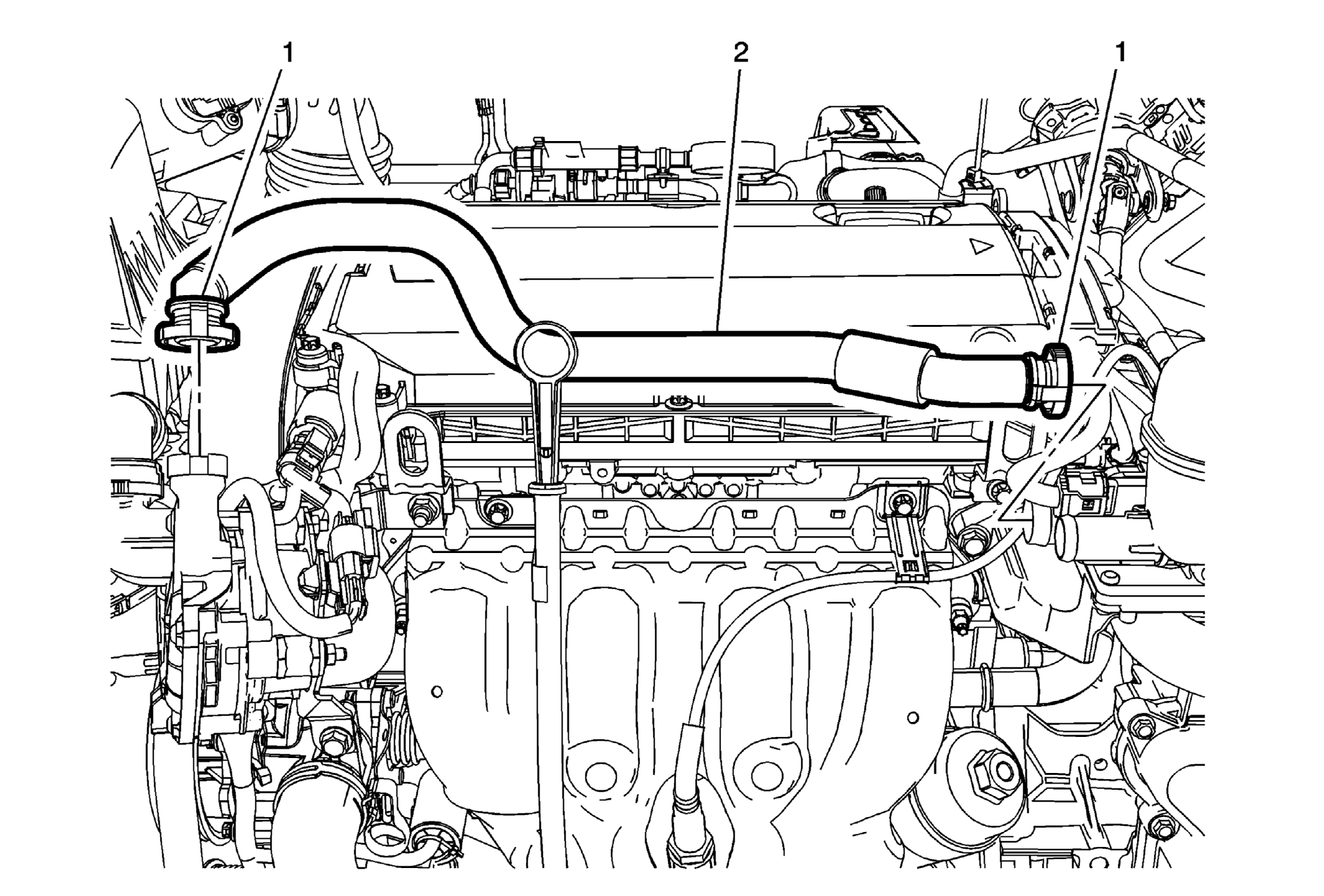

Courtesy of GENERAL MOTORS COMPANY Secondary Air Injection Pump Pipe Replacement
| Callout |
Component Name |
| 1 |
Hose Retainer (QTY:2)
NOTE:
Squeeze the retainer on opposite sides to release.
|
| 2 |
Secondary Air Injection Pipe.
Procedure
Disconnect the pipe from the secondary air injection pump and the secondary air injection check valve. |
