Secondary Air Injection Pump Air Cleaner Pipe Replacement
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY Secondary Air Injection Pump Air Cleaner Pipe Replacement

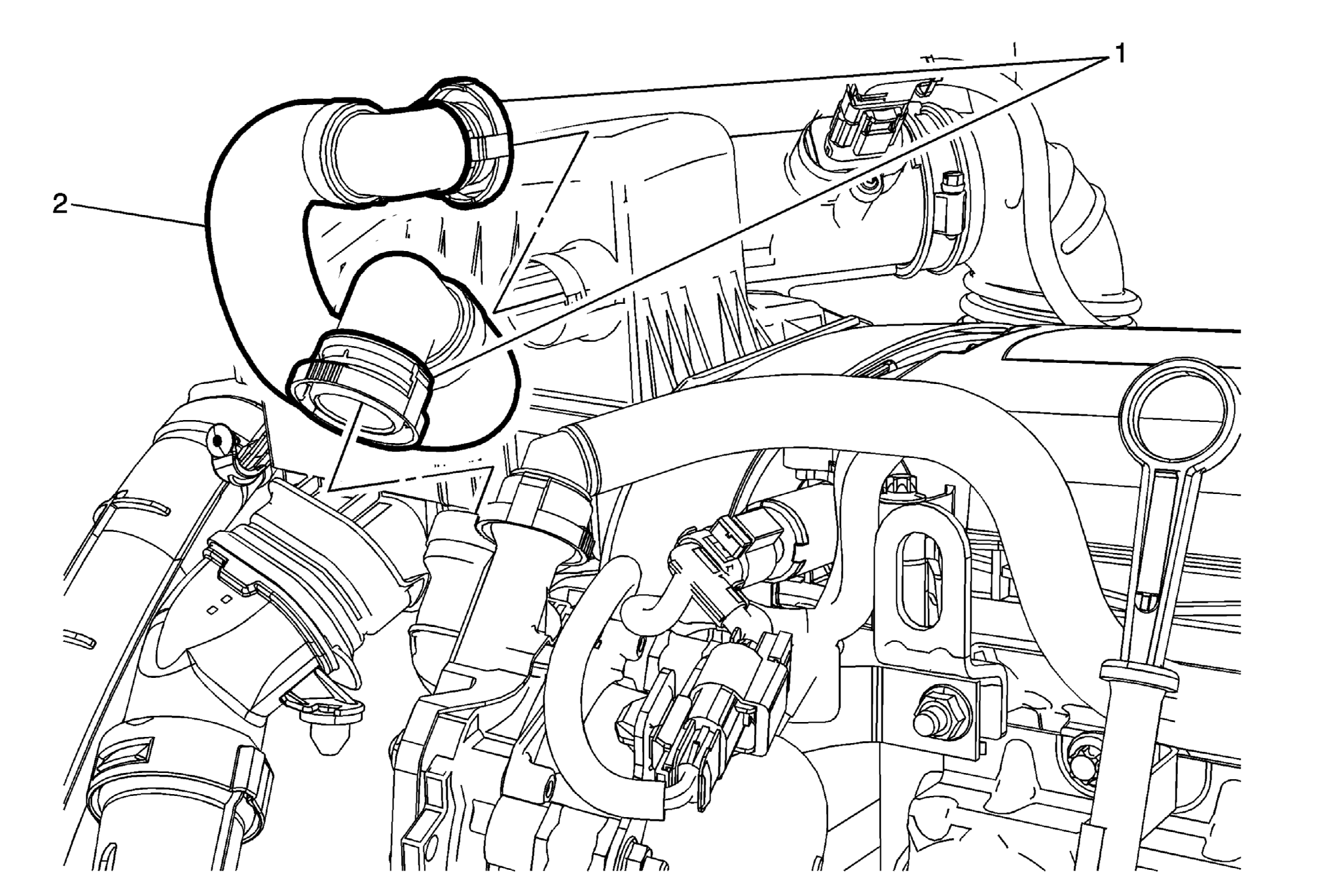

| Callout |
Component Name |
| 1 |
Hose Retainer (QTY:2)
NOTE:
Squeeze the retainer on opposite sides to release.
|
| 2 |
Secondary Air Injection Pipe.
Procedure
Disconnect the pipe from the secondary air injection pump and the air cleaner. |
