Secondary Air Injection Check Valve Replacement

WARNING: This page is about a different variant/trim than selected.

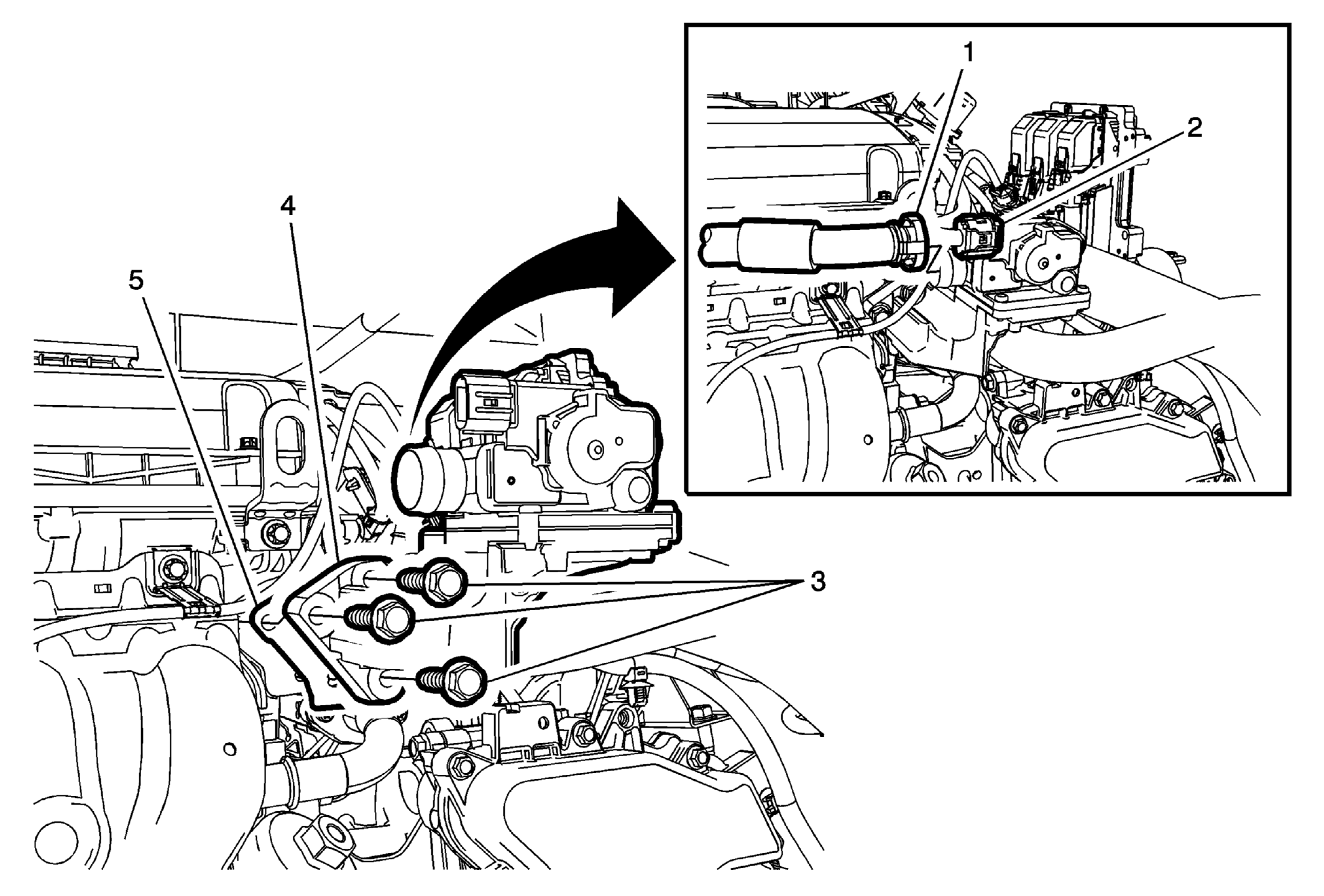

Fig 1: Secondary Air Injection Check Valve & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Secondary Air Injection Outlet Pipe NOTE: Squeeze the retainer on opposite sides to release.
2	Secondary Air Injection Check Valve Electrical Connector
3	Secondary Air Injection Check Valve Bolts (Qty: 3). CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
4	Secondary Air Injection Check Valve
5	Secondary Air Injection Check Valve Gasket
