Mass Airflow Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

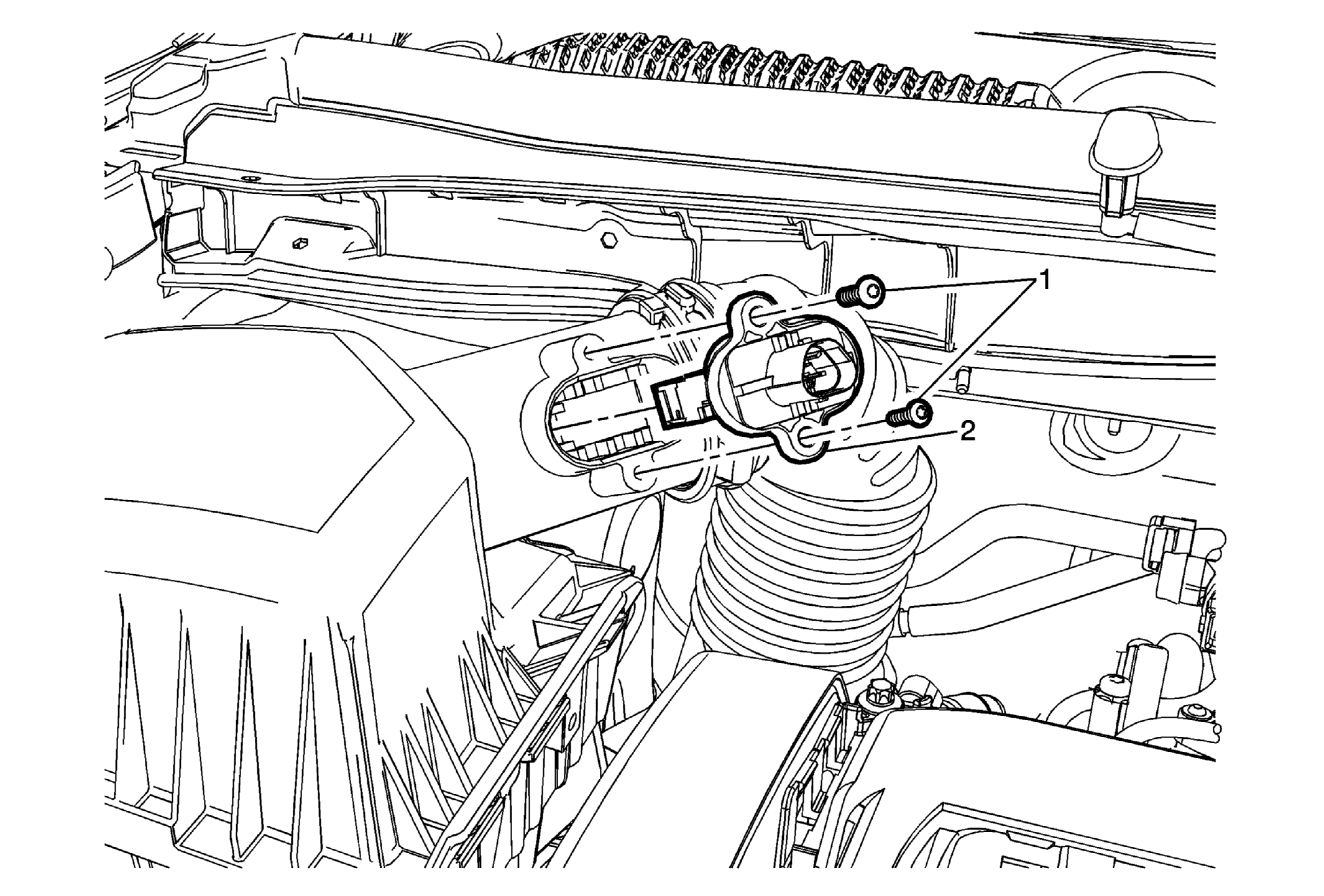

Fig 1: Mass Airflow Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Mass Airflow Sensor Fastener (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Mass Airflow Sensor Procedure Disconnect the electrical wiring harness connector from the Mass Airflow Sensor.
