Manifold Absolute Pressure Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

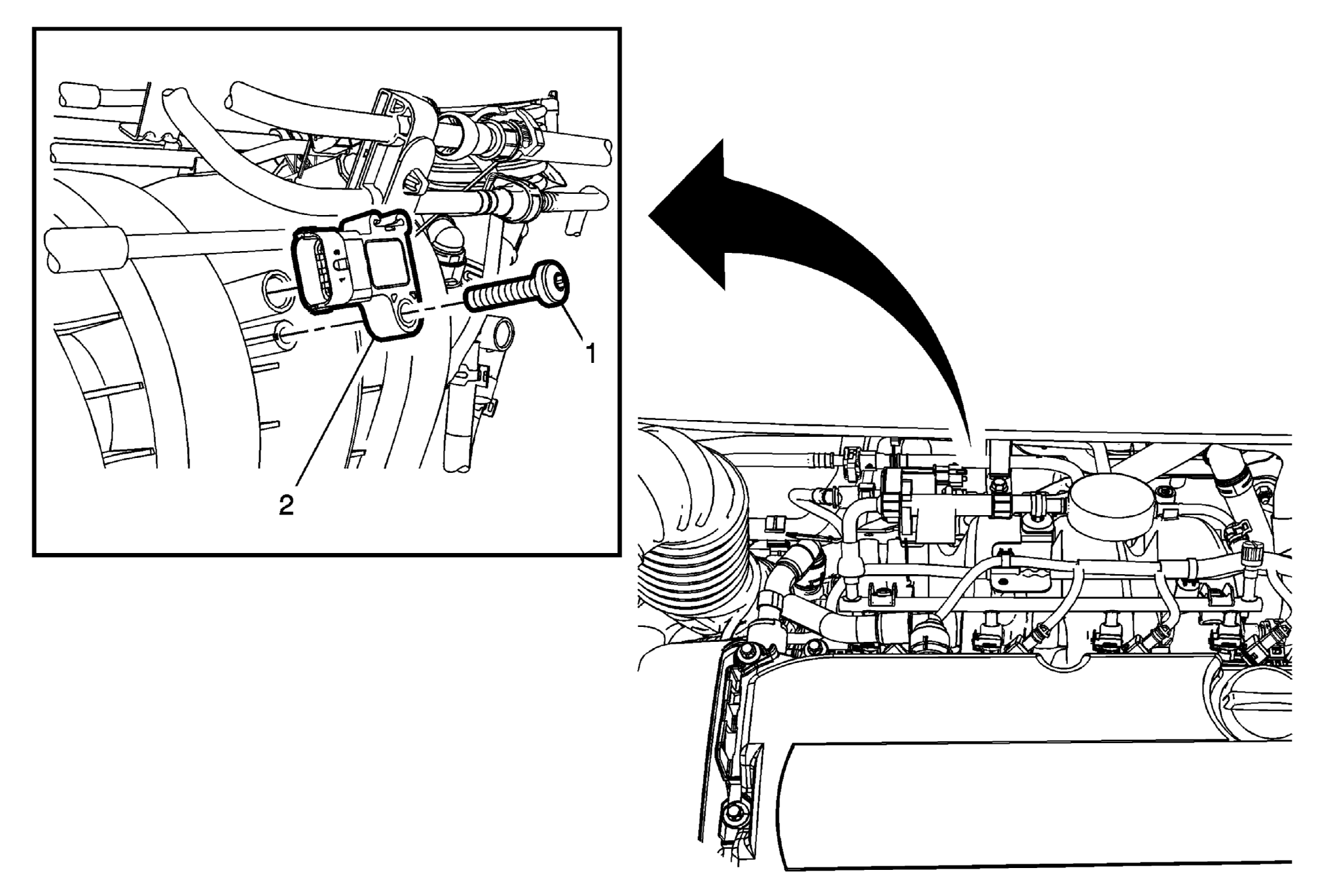

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution Tighten 6 N.m (54 lb in)
2	Manifold Absolute Pressure Sensor Procedure Disconnect the electrical wiring harness connector from the Manifold Absolute Pressure Sensor.
