Intake Manifold Tuning Valve Actuator Replacement

WARNING: This page is about a different variant/trim than selected.

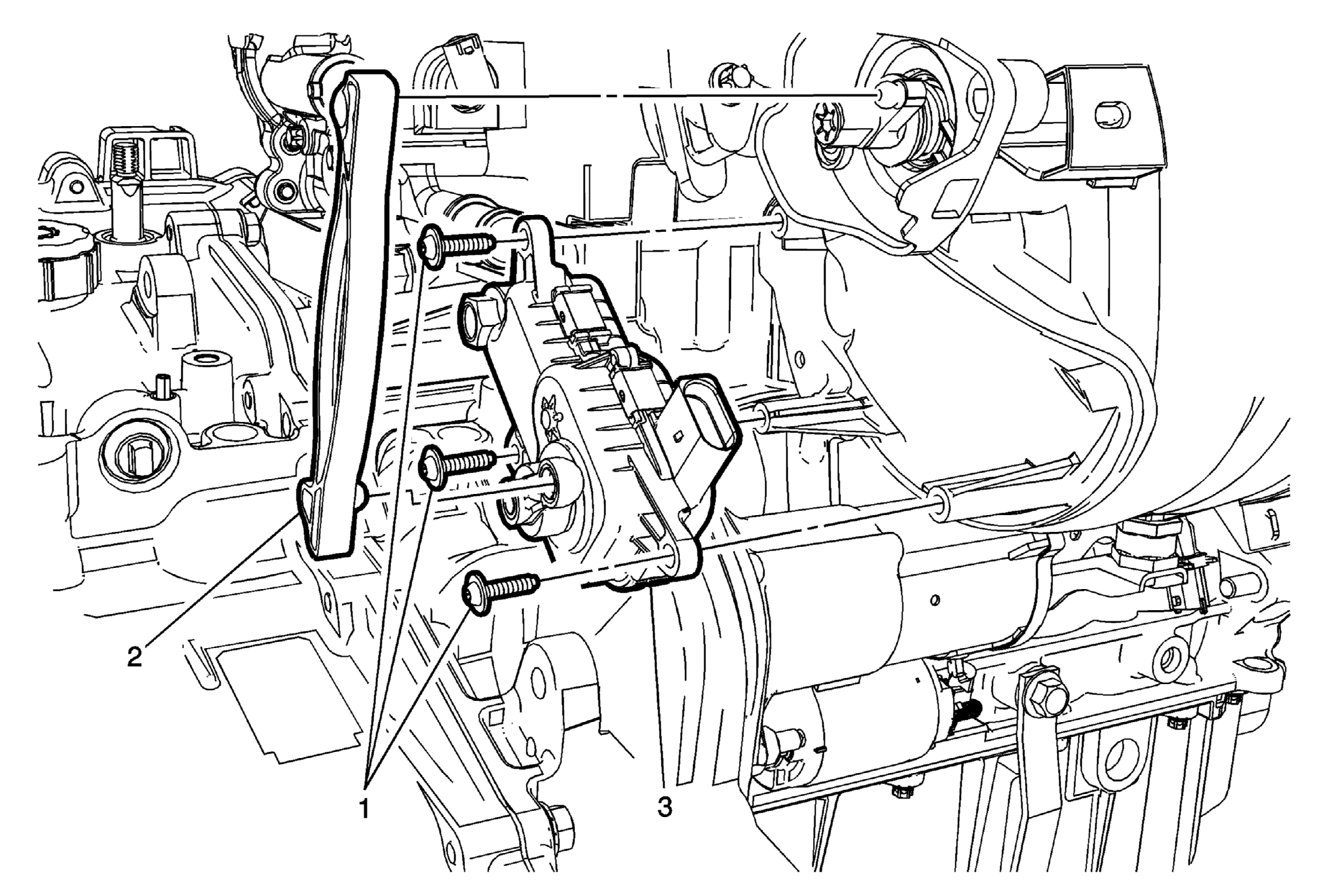

Fig 1: Intake Manifold Tuning Valve Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Properly raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Intake Manifold Runner Control Valve Actuator Solenoid Valve Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Intake Manifold Runner Control Valve Actuator Solenoid Linkage
3	Intake Manifold Runner Control Valve Actuator Solenoid Procedure Disconnect the wiring harness electrical connector from the intake manifold runner control valve actuator solenoid.
