Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
  2. Remove the fuel tank. Refer to Fuel Tank Replacement .

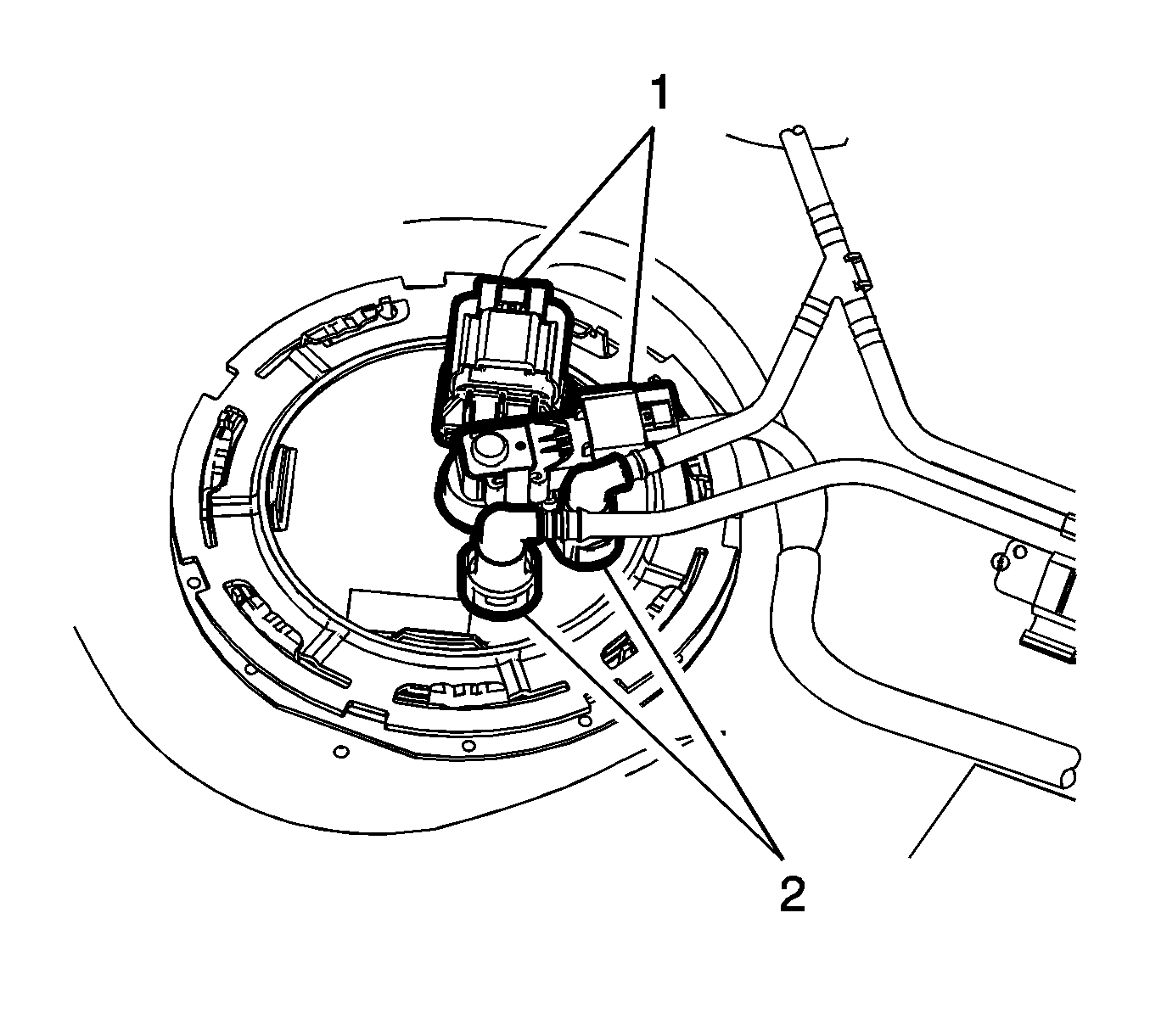

    3. Fig 1: Evaporative Emission & Fuel Feed Lines
    GM2495427Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the electrical connectors (1).
  4. Disconnect the evaporative emission and fuel lines (2). Refer to Plastic Collar Quick Connect Fitting Service .

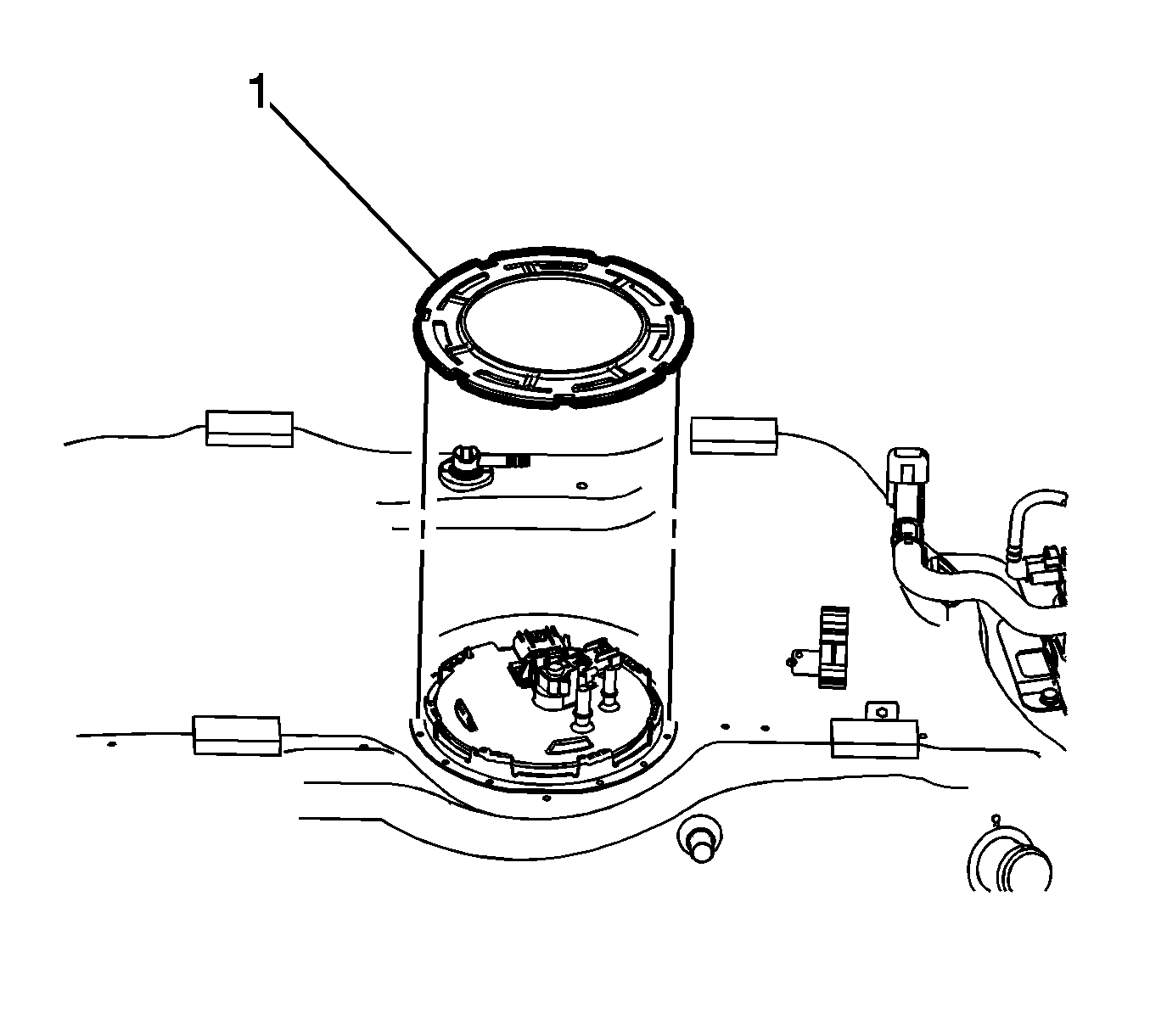

    5. Fig 2: Fuel Sender Lock Ring
    GM2495431Courtesy of GENERAL MOTORS COMPANY
  5. Using the EN-48279  fuel sender lock ring wrench , remove the lock ring (1) by turning counter-clockwise.

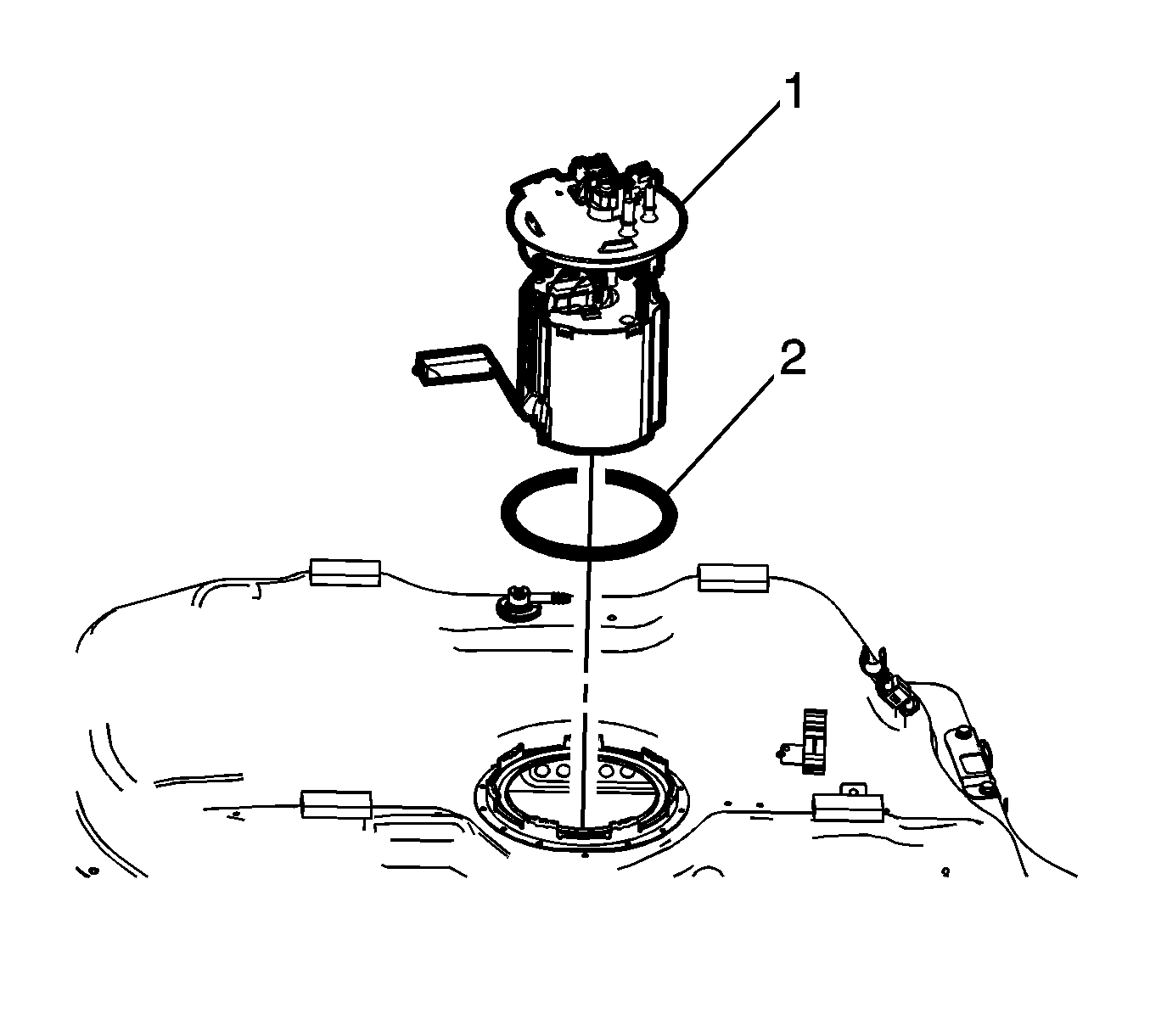

    6. Fig 3: Fuel Pump Module & O-Ring
    GM2495432Courtesy of GENERAL MOTORS COMPANY
  6. Remove the fuel pump module (1) and O-ring (2). Discard the seal.
