Removal Procedure

WARNING: This page is about a different variant/trim than selected.

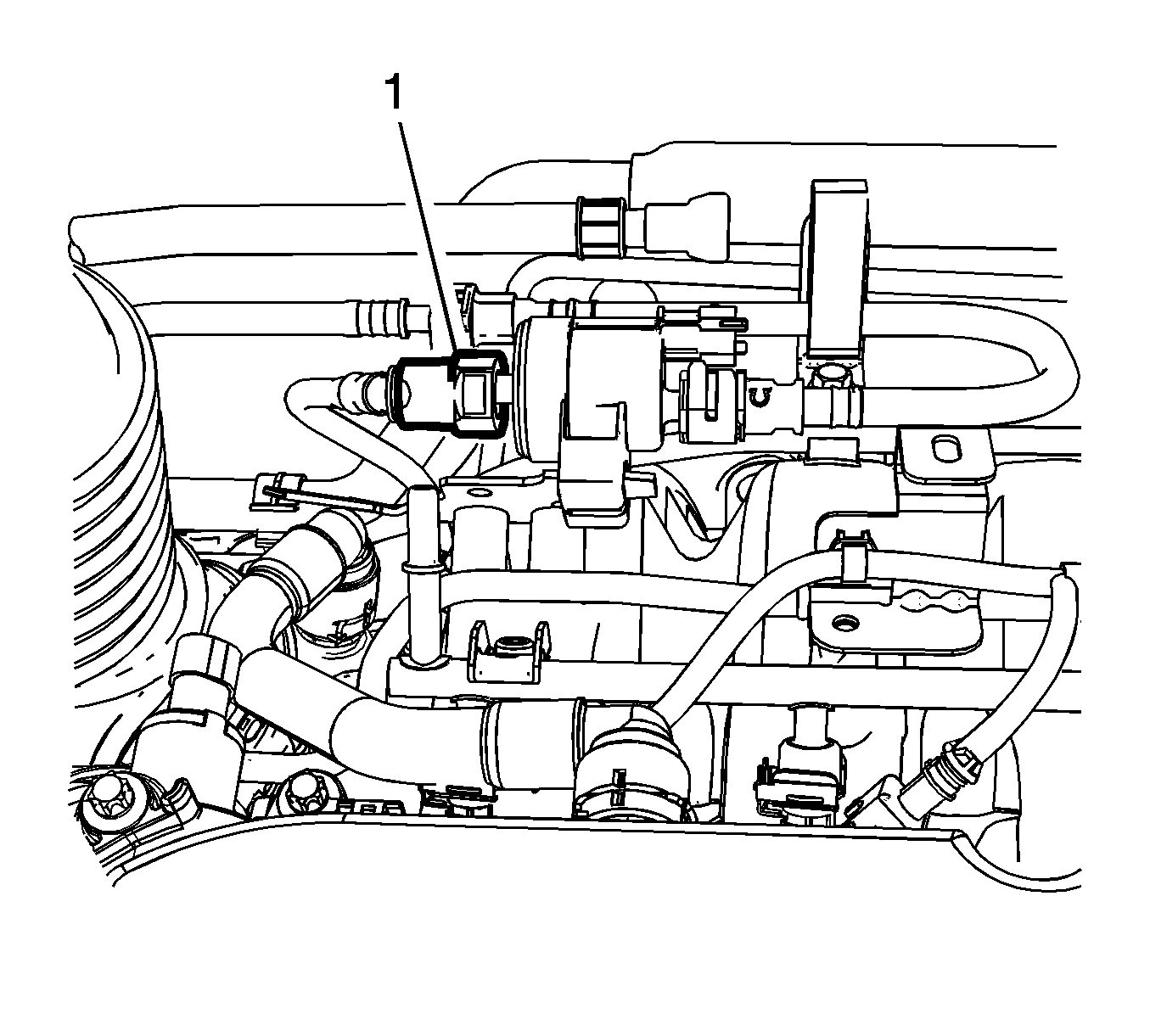

    Fig 1: Evaporative Emission System Hose/Pipe
    GM2676473Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the evaporative emission pipe (1). Refer to Plastic Collar Quick Connect Fitting Service .

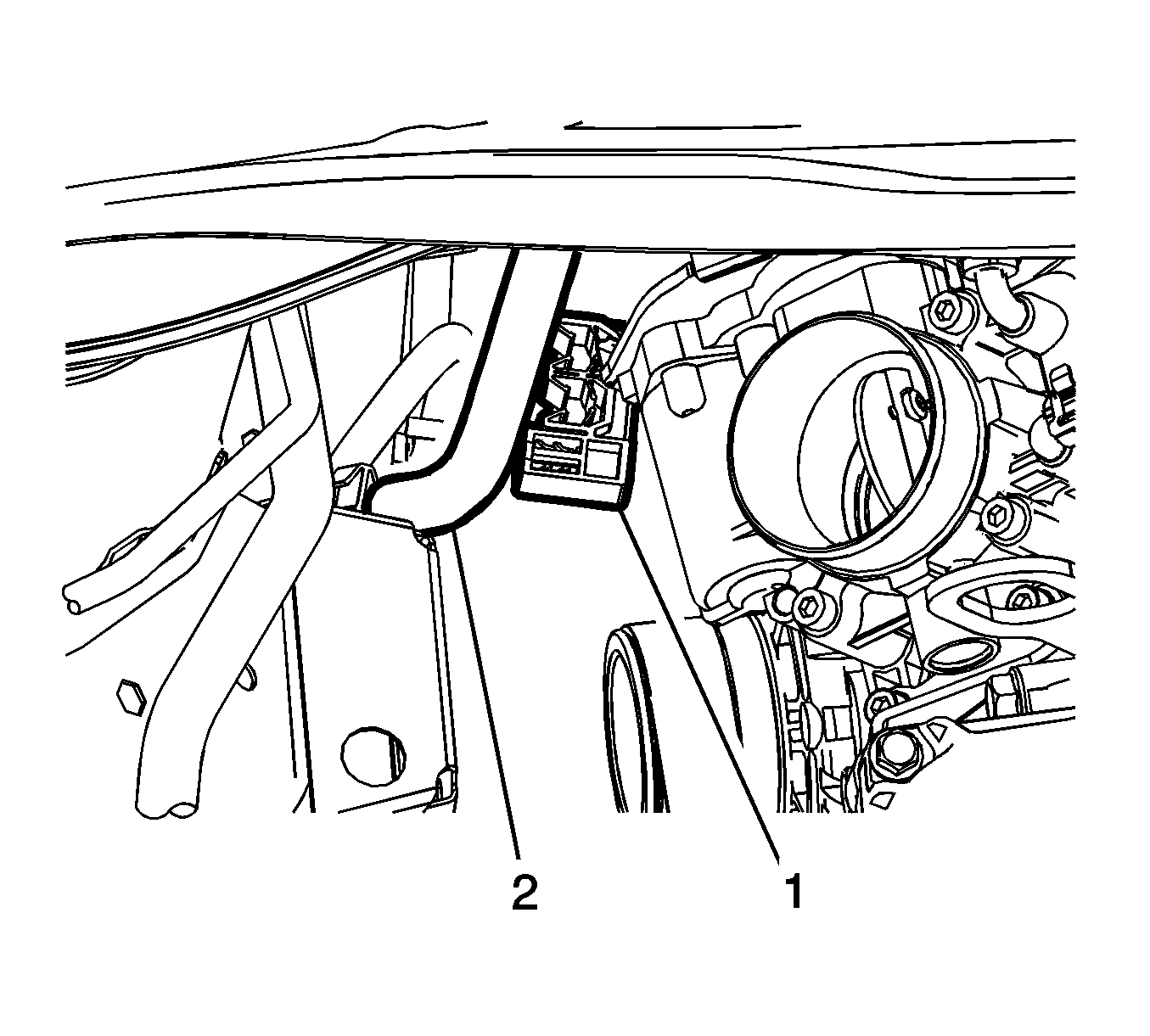

    2. Fig 2: Evaporative Emission System Hose/Pipe & Retainer
    GM2496058Courtesy of GENERAL MOTORS COMPANY
  2. Remove the plastic retainer (1) and disconnect the evaporative emission pipe (2).

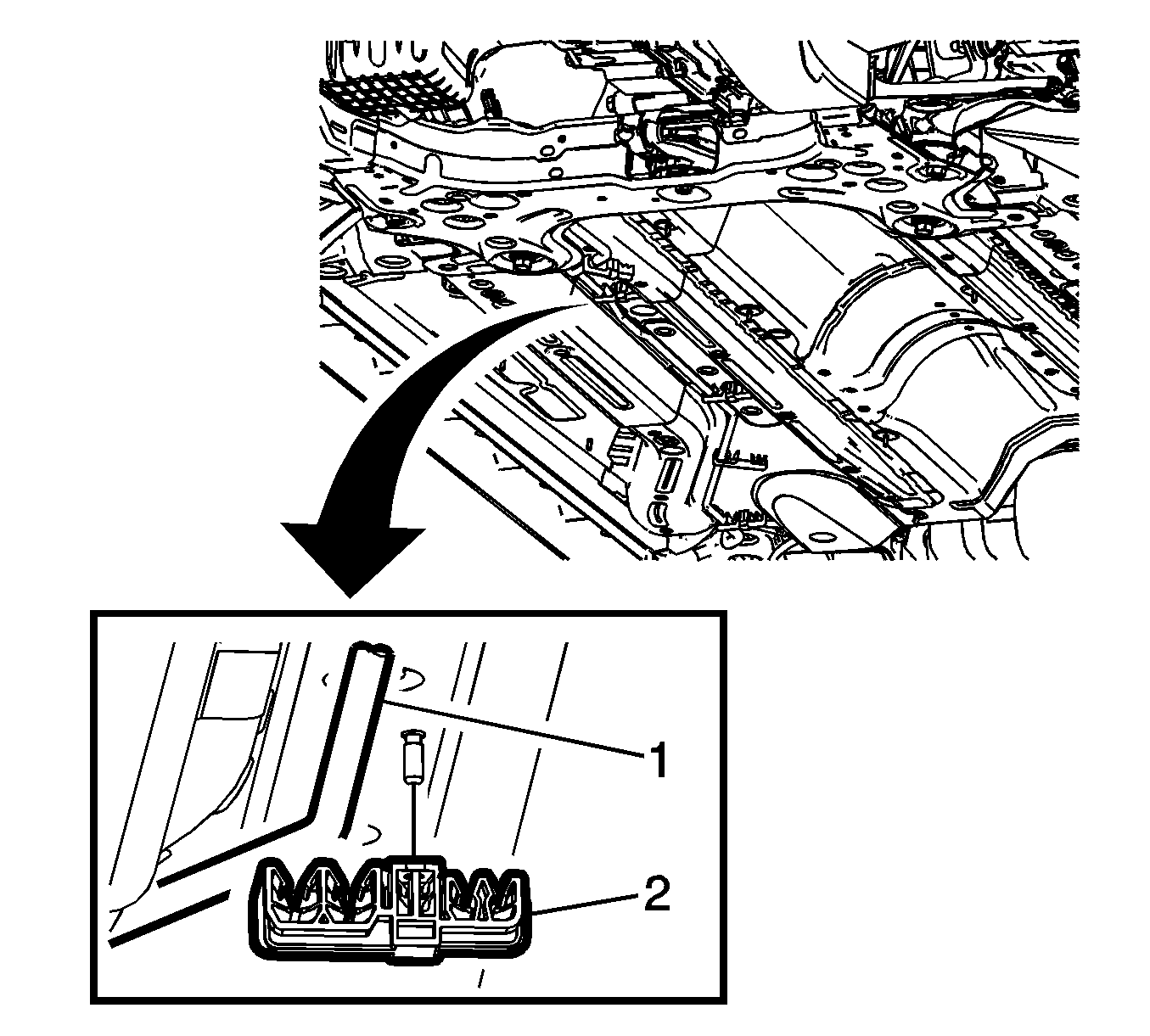

    3. Fig 3: Evaporative Emission System Hose/Pipe & Retainers
    GM2496064Courtesy of GENERAL MOTORS COMPANY
  3. Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. Disconnect the evaporative emission pipe (1) from the plastic retainers (2).

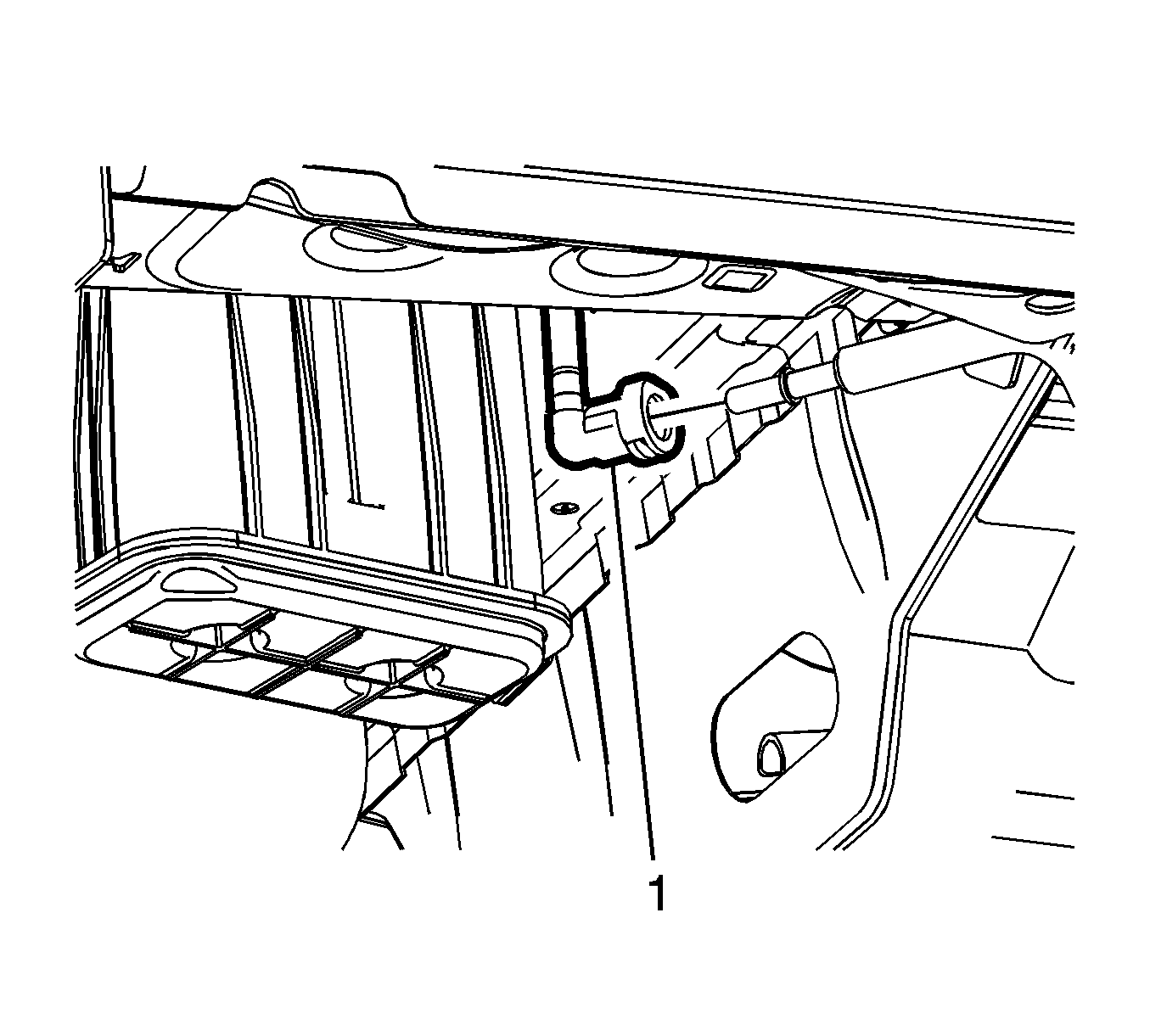

    5. Fig 4: Evaporative Emission System Hose/Pipe
    GM2496061Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect the evaporative emission pipe (1). Refer to Plastic Collar Quick Connect Fitting Service .
  6. Remove the evaporative emission pipe.
