Evaporative Emission Canister Vent Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

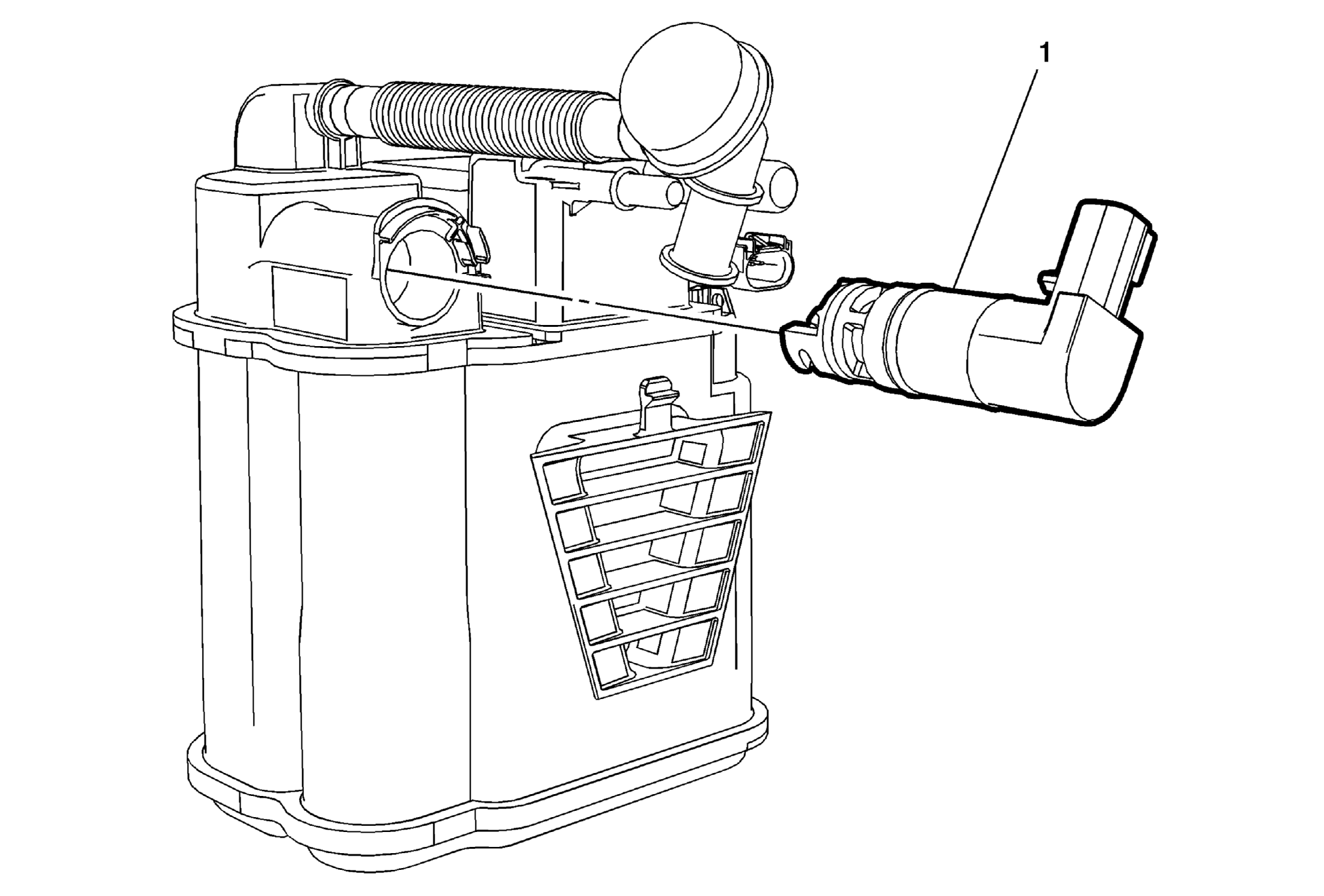

Fig 1: Evaporative Emission Canister Vent Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the evaporative emissions canister. Refer to Evaporative Emission Canister Replacement (Steel Tank) .
1	Evaporative Emissions Canister Vent Solenoid Valve Procedure Turn the evaporative emission canister vent solenoid valve counter clockwise 45 degrees and remove the solenoid from the evaporative emissions canister.

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the evaporative emissions canister. Refer to Evaporative Emission Canister Replacement (Steel Tank) .

Evaporative Emissions Canister Vent Solenoid Valve
Procedure
Turn the evaporative emission canister vent solenoid valve counter clockwise 45 degrees and remove the solenoid from the evaporative emissions canister.
