Removal Procedure

WARNING: This page is about a different variant/trim than selected.

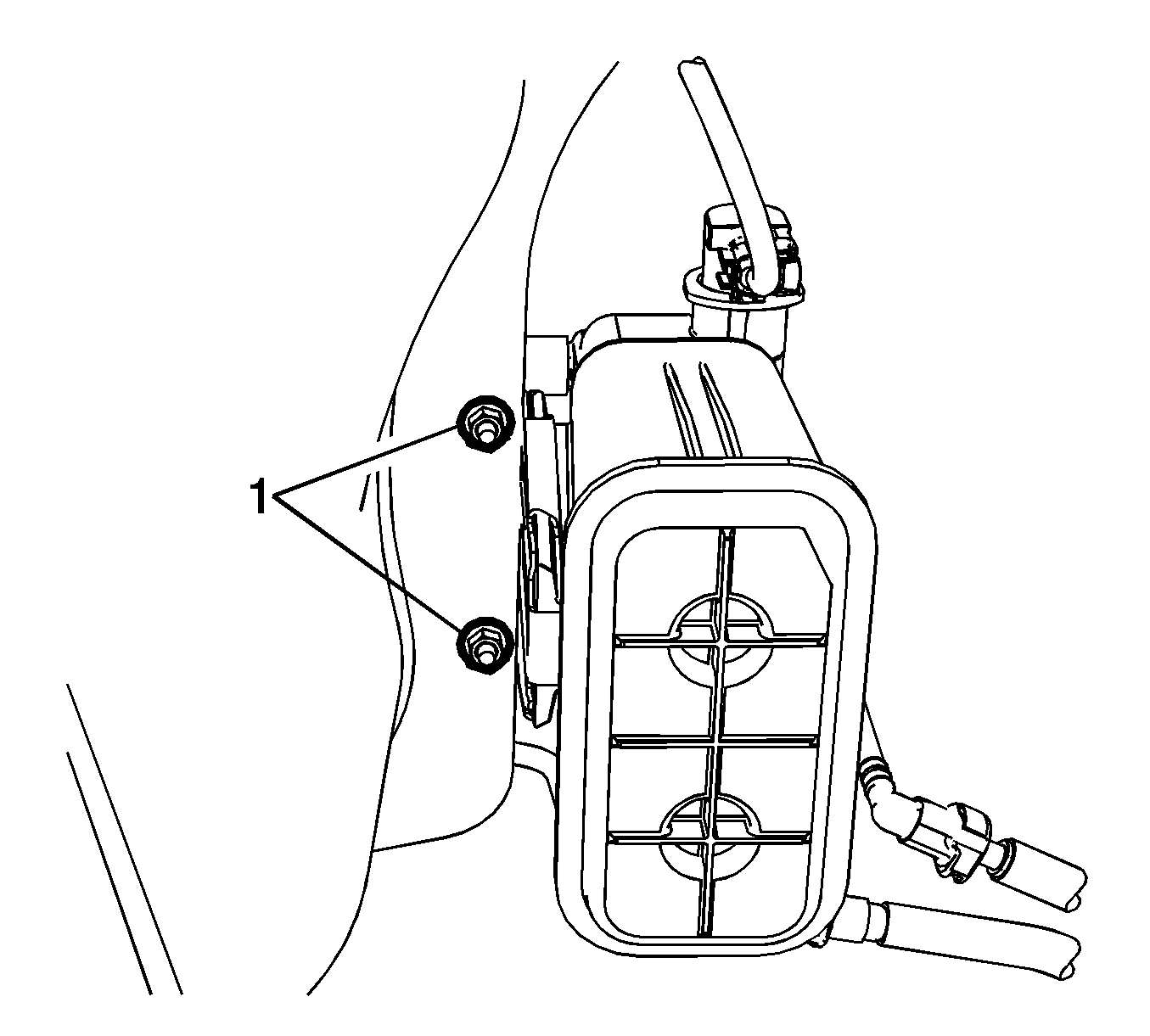

    Fig 1: Evaporative Emission Canister Bracket Fasteners
    GM2538905Courtesy of GENERAL MOTORS COMPANY
  1. Remove the evaporative emission canister bracket fasteners (1).

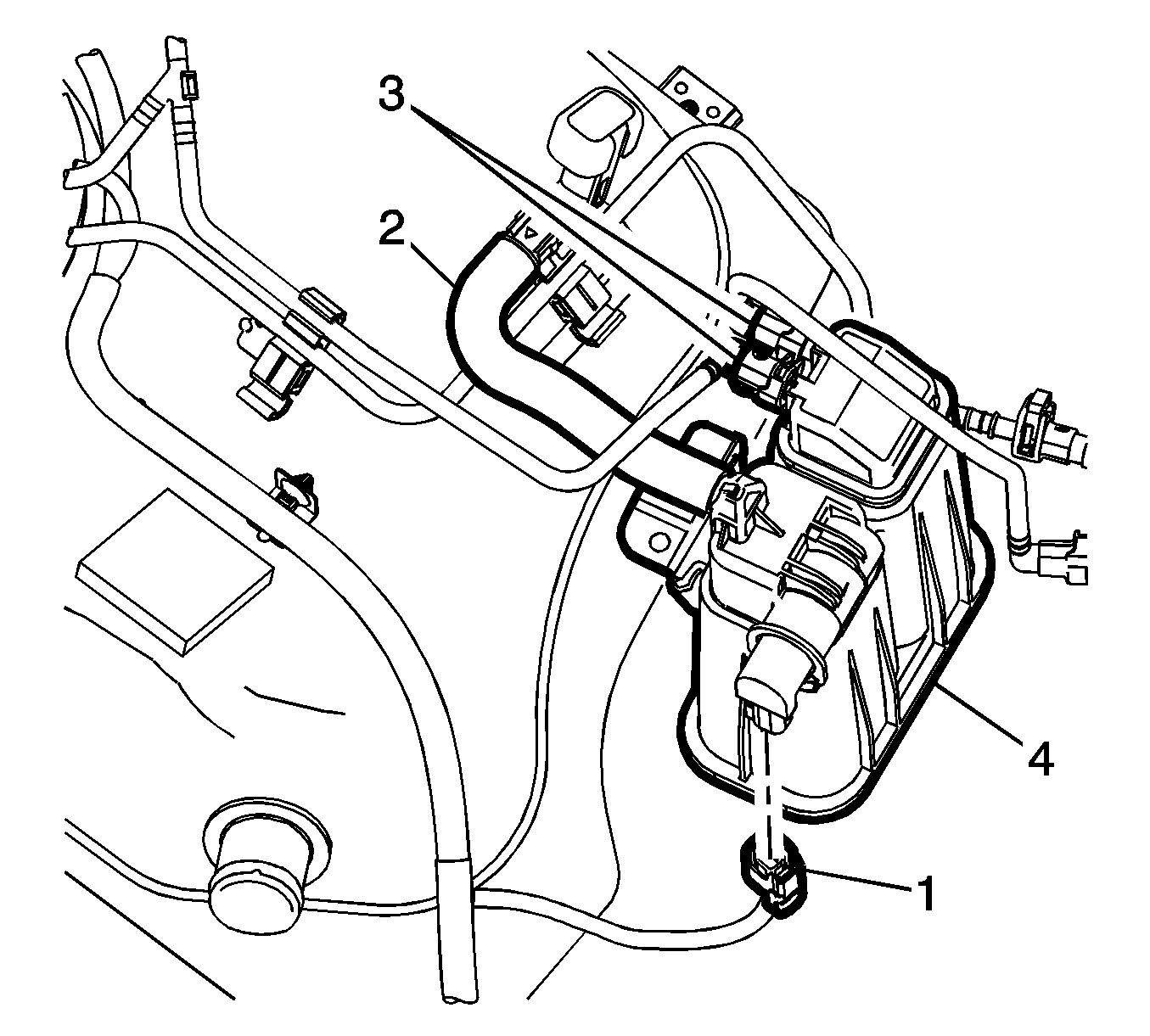

    2. Fig 2: Evaporative Emission Canister Components
    GM2538906Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the purge solenoid valve electrical connector (1).
  3. Disconnect the evaporative emission canister vent hose (2).
  4. Disconnect the evaporative emission canister pipes (3). Refer to Plastic Collar Quick Connect Fitting Service
  5. Remove the evaporative emission canister (4).

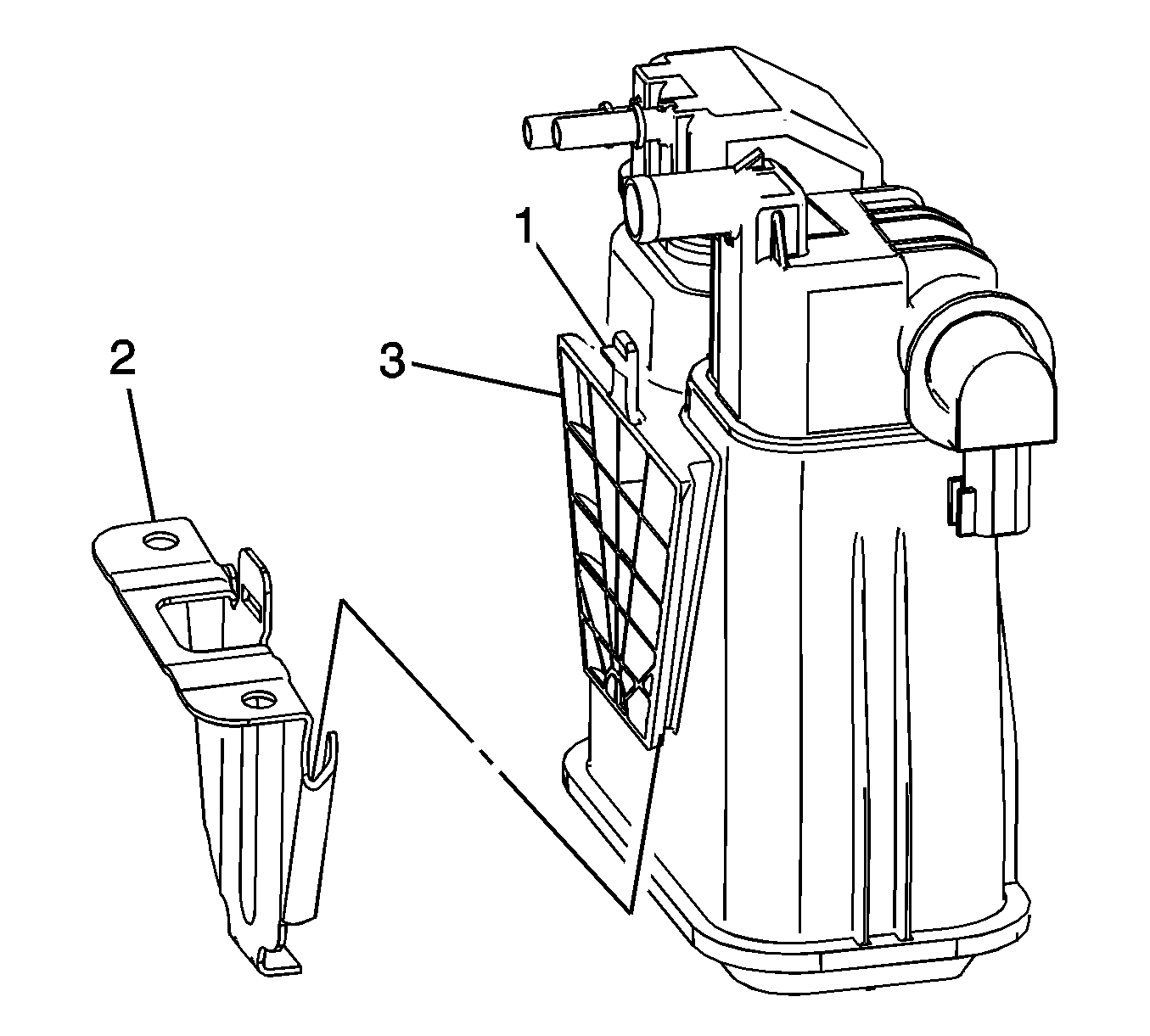

    6. Fig 3: Evaporative Emission Canister & Retaining Tab
    GM2538907Courtesy of GENERAL MOTORS COMPANY
  6. Release the retaining tab (1) and remove the evaporative emission canister (2).
