Evaporative Emission Canister Purge Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

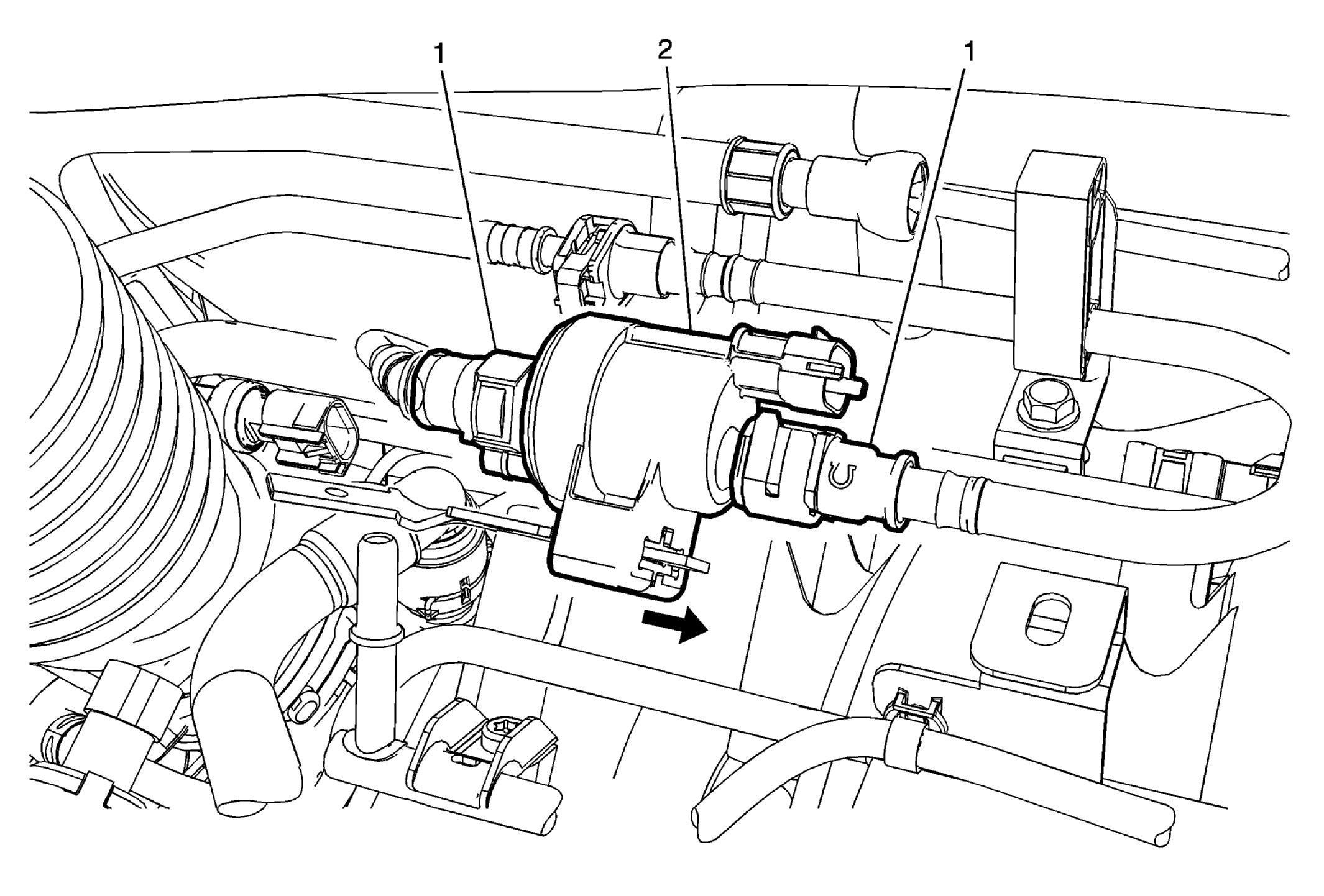

Fig 1: Evaporative Emission Canister Purge Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Purge Pipe Fittings (Qty: 2) Procedure Disconnect the vacuum lines quick connect fitting from the evaporative emission canister purge solenoid valve. Refer to Plastic Collar Quick Connect Fitting Service .
2	Evaporative Emission Canister Purge Solenoid Valve Procedure Disconnect the purge solenoid valve harness connector. Remove the evaporative emission canister purge solenoid valve from the bracket.

Callout

Component Name

Purge Pipe Fittings (Qty: 2)
Procedure
Disconnect the vacuum lines quick connect fitting from the evaporative emission canister purge solenoid valve. Refer to Plastic Collar Quick Connect Fitting Service .

Evaporative Emission Canister Purge Solenoid Valve

Procedure

Disconnect the purge solenoid valve harness connector.
Remove the evaporative emission canister purge solenoid valve from the bracket.
