Engine Coolant Temperature Sensor Replacement (Water Outlet)

WARNING: This page is about a different variant/trim than selected.

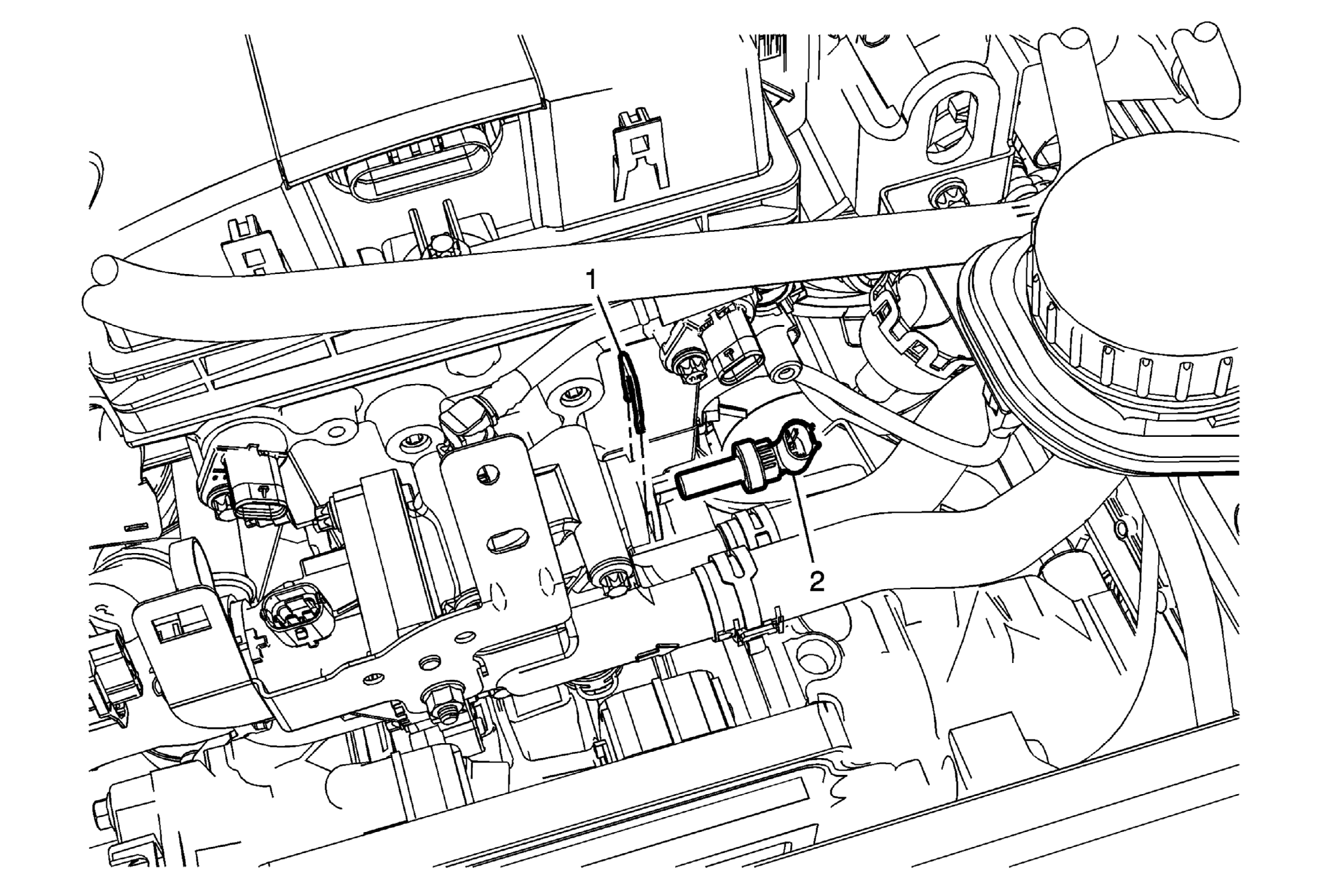

Fig 1: Engine Coolant Temperature Sensor (Water Outlet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling . Disconnect the electrical wiring harness connector.
1	Engine Coolant Temperature Sensor Fastener
2	Engine Coolant Temperature Sensor

Callout

Component Name

Preliminary Procedure

Engine Coolant Temperature Sensor Fastener

Engine Coolant Temperature Sensor
