Engine Coolant Temperature Sensor Replacement (Radiator)

WARNING: This page is about a different variant/trim than selected.

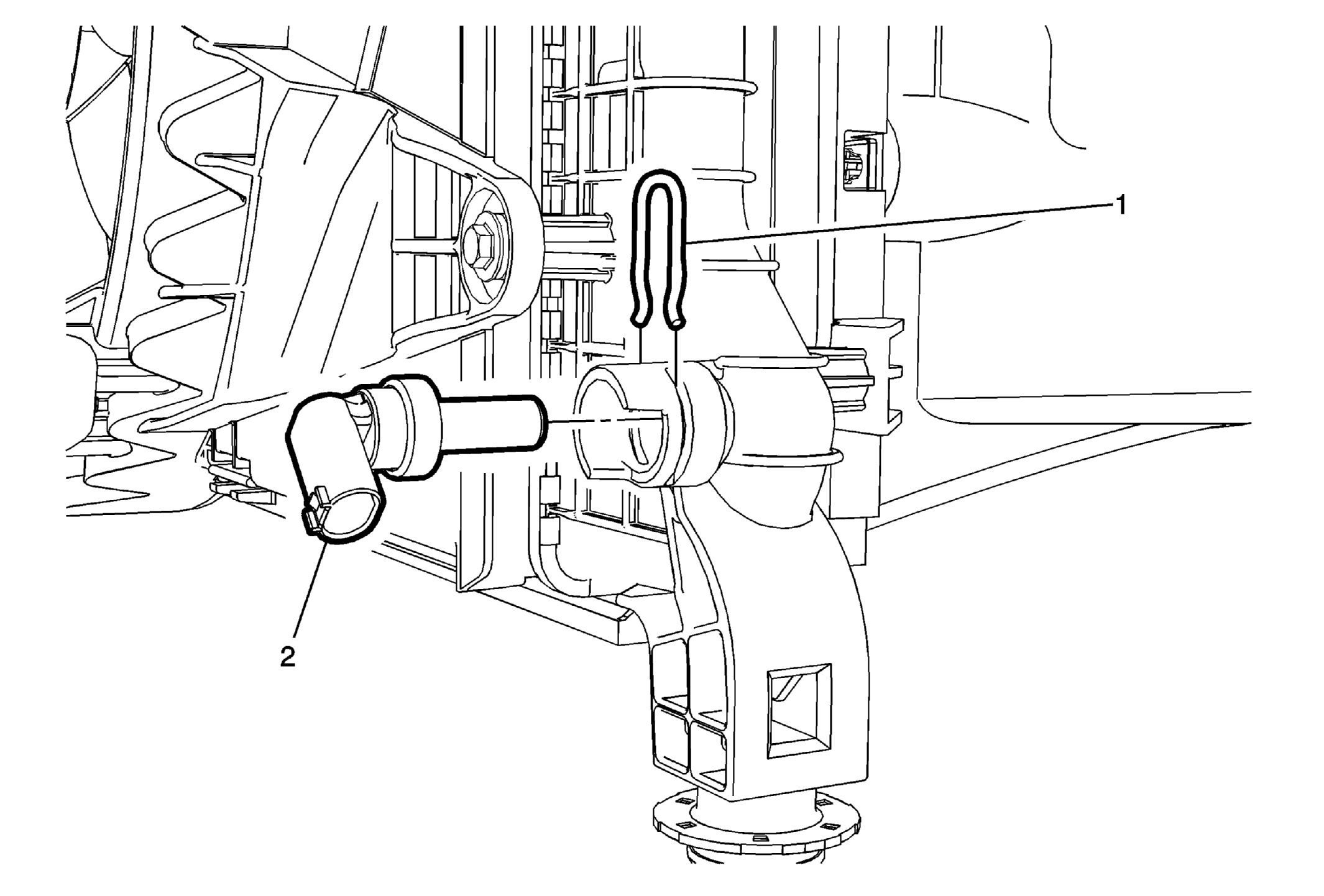

Fig 1: Engine Coolant Temperature Sensor (Radiator)
GM2826310Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Temperature Sensor Replacement (Radiator)

Callout Component Name
Preliminary Procedures
Drain the cooling system. Refer to Cooling System Draining and Filling .
1 Retaining Clamp
2 Engine Coolant Temperature Sensor
Procedure
Disconnect the electrical connector.
