Camshaft Position Sensor Replacement
WARNING: This page is about a different variant/trim than selected.
Camshaft Position Sensor Replacement

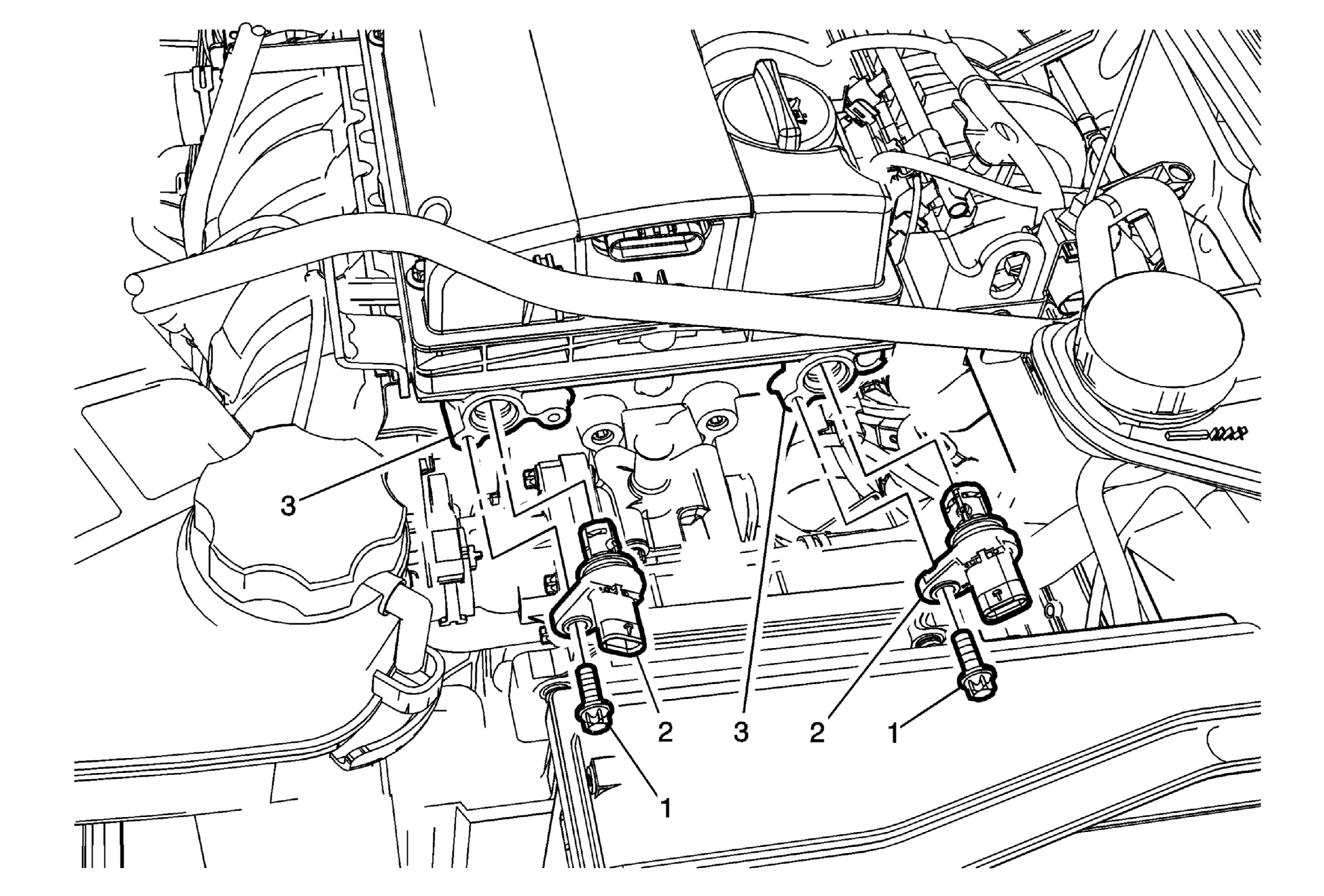

| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (54 lb in) |
| 2 | Camshaft Position Sensor Procedure Disconnect electrical wiring harness connector from the camshaft position sensor. |
| 3 | Remove the Camshaft Position Sensor Seal Ring |
