Air Cleaner Outlet Duct Replacement

WARNING: This page is about a different variant/trim than selected.

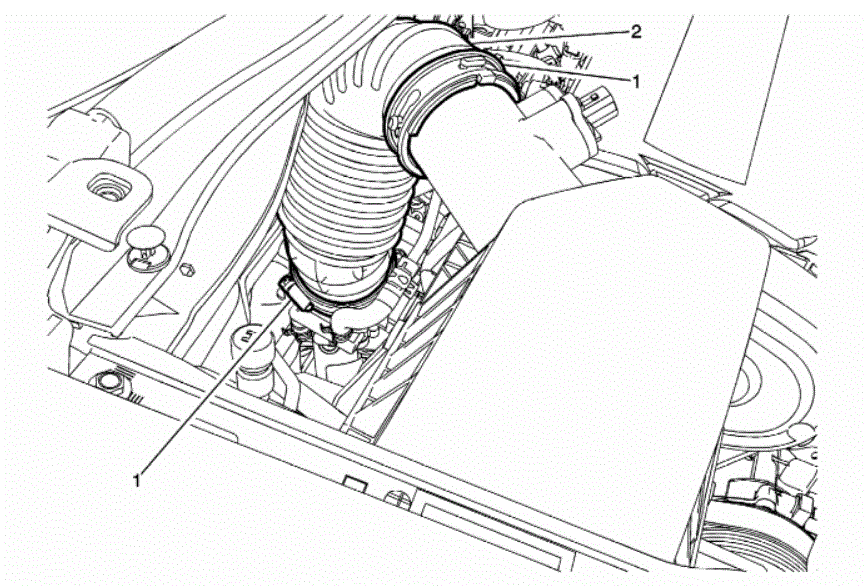

Fig 1: Air Cleaner Outlet Duct
GM2505699Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Outlet Duct Replacement

Callout Component Name
1 Air Cleaner Outlet Duct Clamps (Qty 2)
CAUTION:

Refer to Fastener Caution .
2 Air Cleaner Outlet Duct
