Installation Procedure

WARNING: This page is about a different variant/trim than selected.

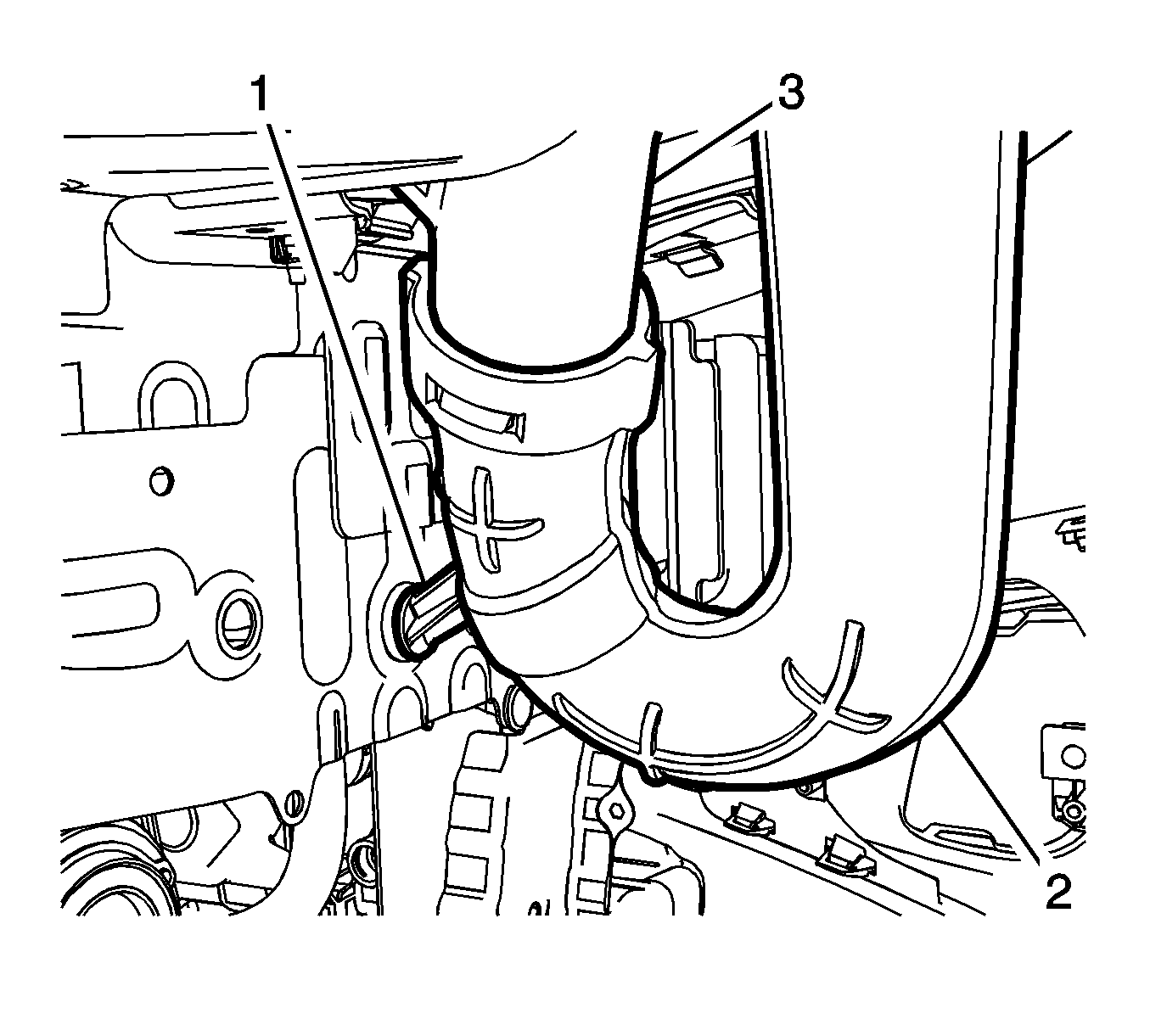

    Fig 1: Air Cleaner Inlet Duct & Mounting Grommet
    GM2498133Courtesy of GENERAL MOTORS COMPANY
  1. Attach the lower portion of the intake air duct (2) to the upper duct (3).
  2. Attach the lower portion of the intake air duct to the rubber mounting grommet (1).

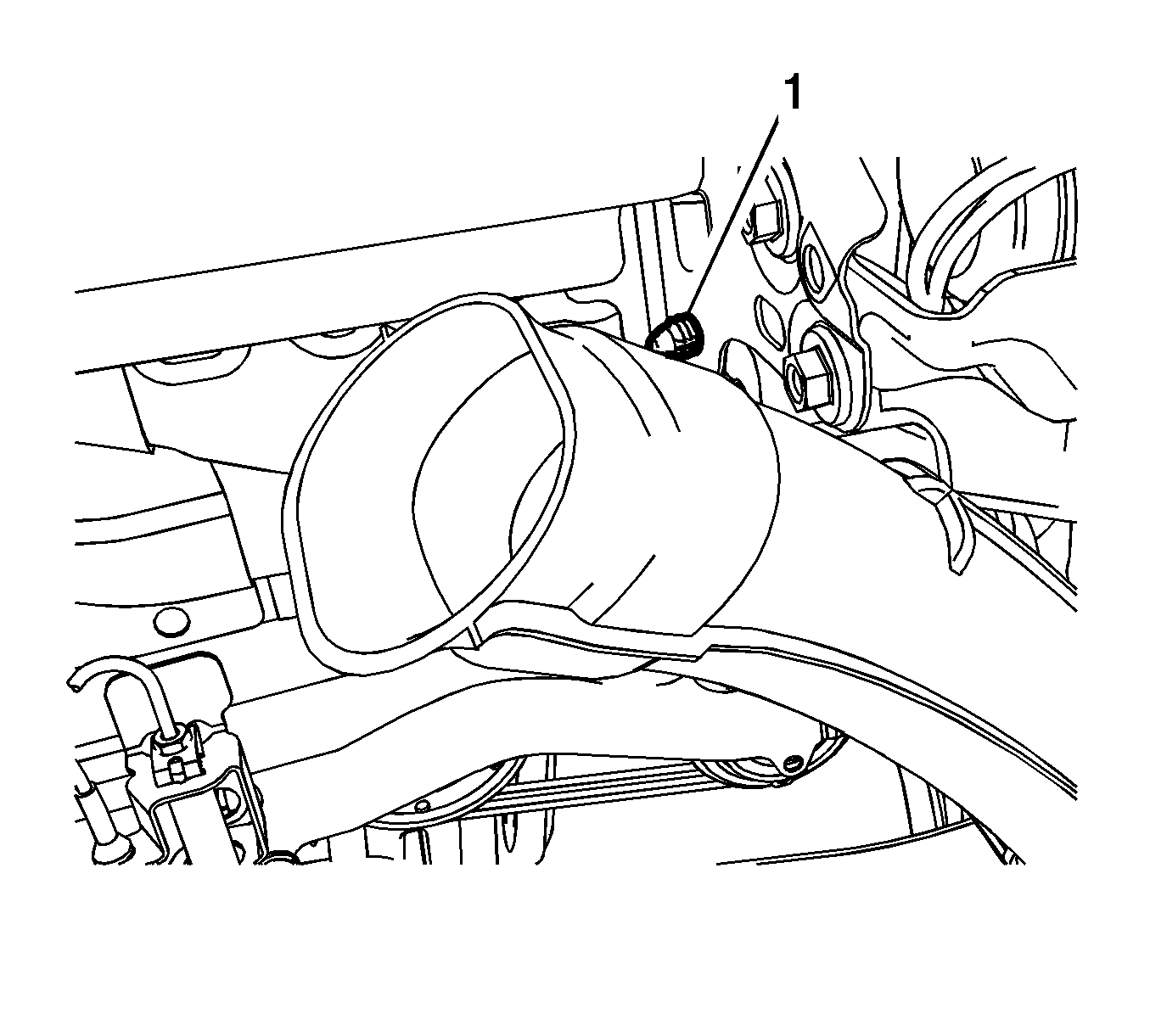

    3. Fig 2: Air Cleaner Inlet Duct Plastic Fastener
    GM2498132Courtesy of GENERAL MOTORS COMPANY
  3. Install the upper intake air duct plastic fastener (1) to the body bracket.
  4. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
