Installation Procedure

WARNING: This page is about a different variant/trim than selected.

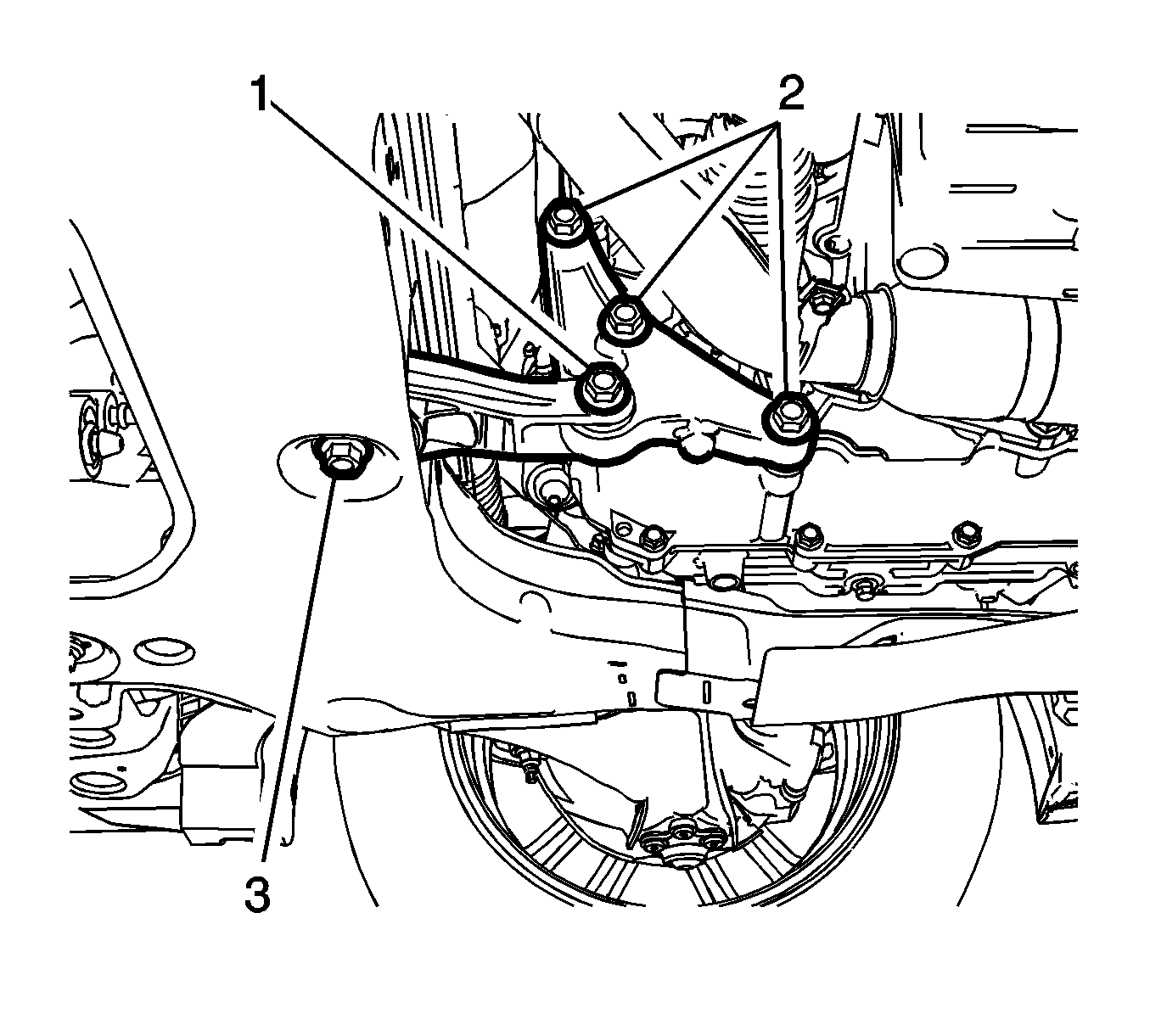

    Fig 1: Rear Transmission Bracket Mount Through Bolt
    GM2492702Courtesy of GENERAL MOTORS COMPANY
  1. Push and hold the powertrain assembly forward and then install rear transmission mount.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install rear transmission mount to frame bolt (3) and tighten to 100 N.m (74 lb ft).
  3. Install the NEW rear transmission mount bracket to rear mount through bolt (1) and tighten to 80 N.m (59 lb ft) plus 45-60 degrees.
  4. Lower the vehicle.
