Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Using a suitable jack stand, support the rear of the transmission.
    3. Fig 1: Rear Transmission Bracket Mount Through Bolt
    GM2492702Courtesy of GENERAL MOTORS COMPANY
  3. Remove and DISCARD the rear transmission mount bracket to rear mount through bolt (1).

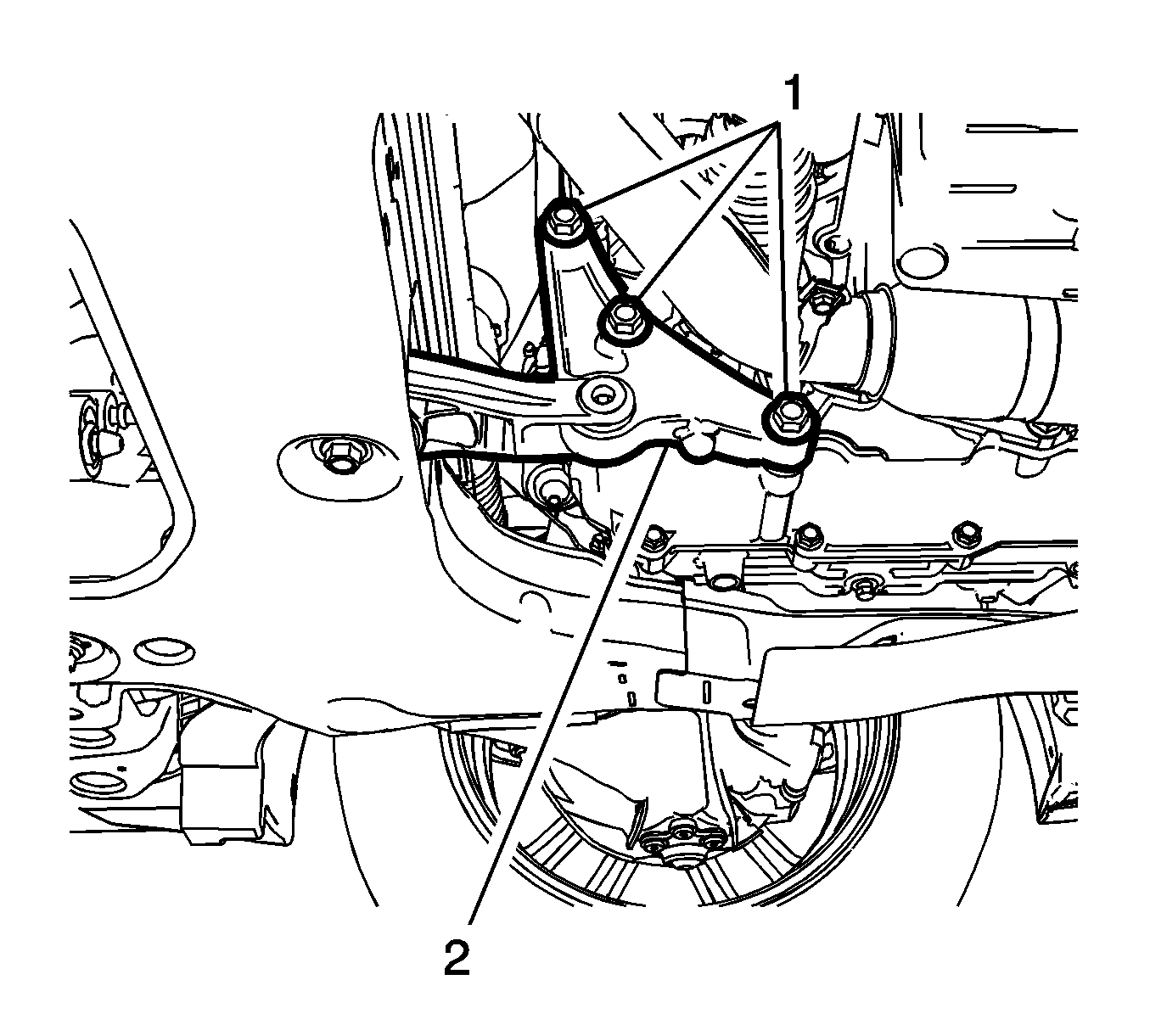

    4. Fig 2: Rear Transmission Mount Bracket & Bolts
    GM2507626Courtesy of GENERAL MOTORS COMPANY
  4. Remove and DISCARD the 3 rear transmission mount bracket to transmission bolts (1).
  5. Remove the rear transmission mount bracket (2).
