Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Set the park brake and chock the wheels.
    2. Fig 1: Range Selector Lever Cable
    GM2527095Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the range selector cable end (1) from the range selector lever.
  3. Disconnect the range selector cable (2) from the range selector cable bracket.

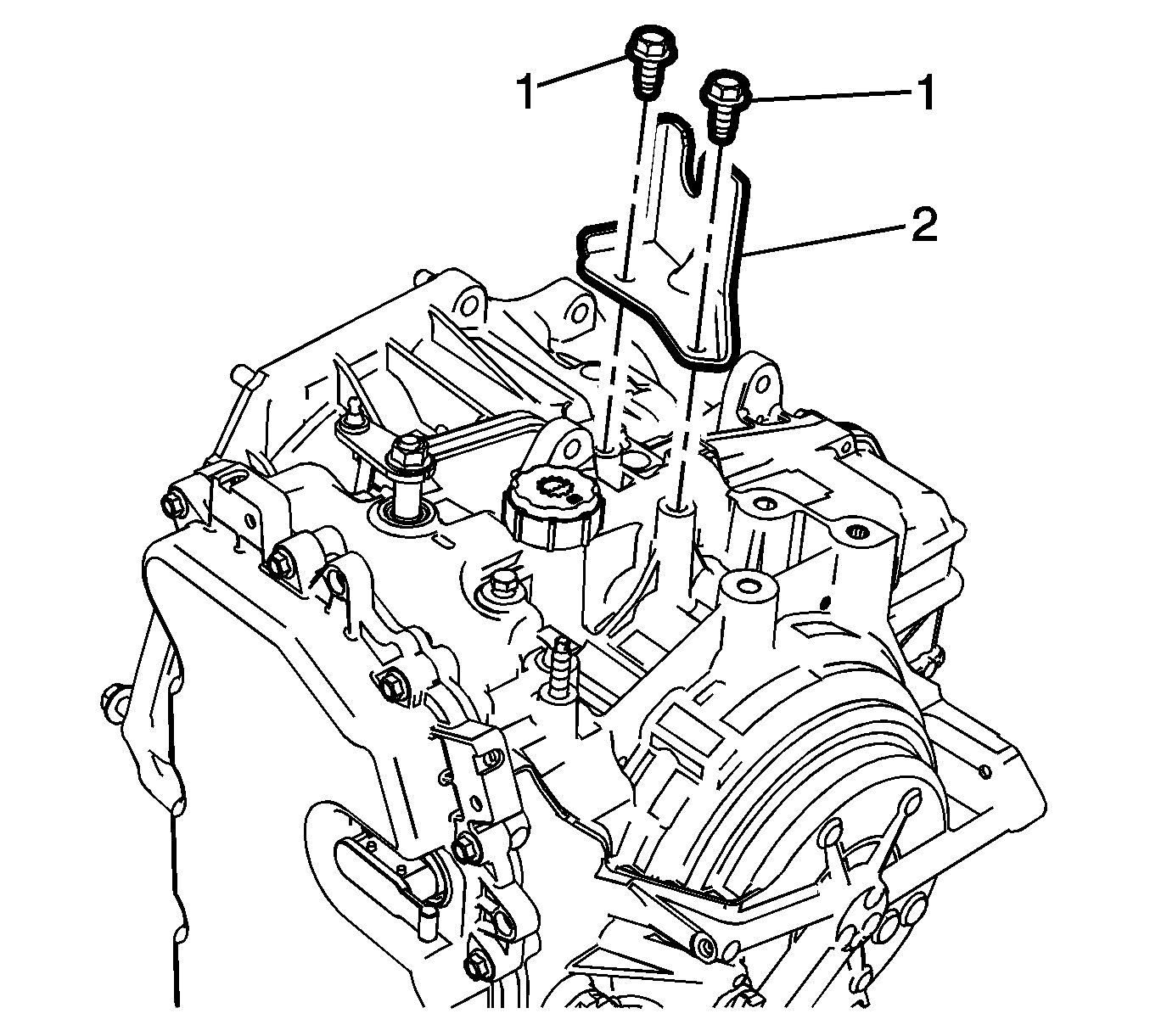

    4. Fig 2: Transmission Range Selector Cable Bracket & Bolts
    GM2527104Courtesy of GENERAL MOTORS COMPANY
  4. Remove the transmission range selector cable bracket bolts (1).
  5. Remove the transmission range selector cable bracket (2).
