Torque Converter Clutch Housing - Pump Side (Front)

WARNING: This page is about a different variant/trim than selected.

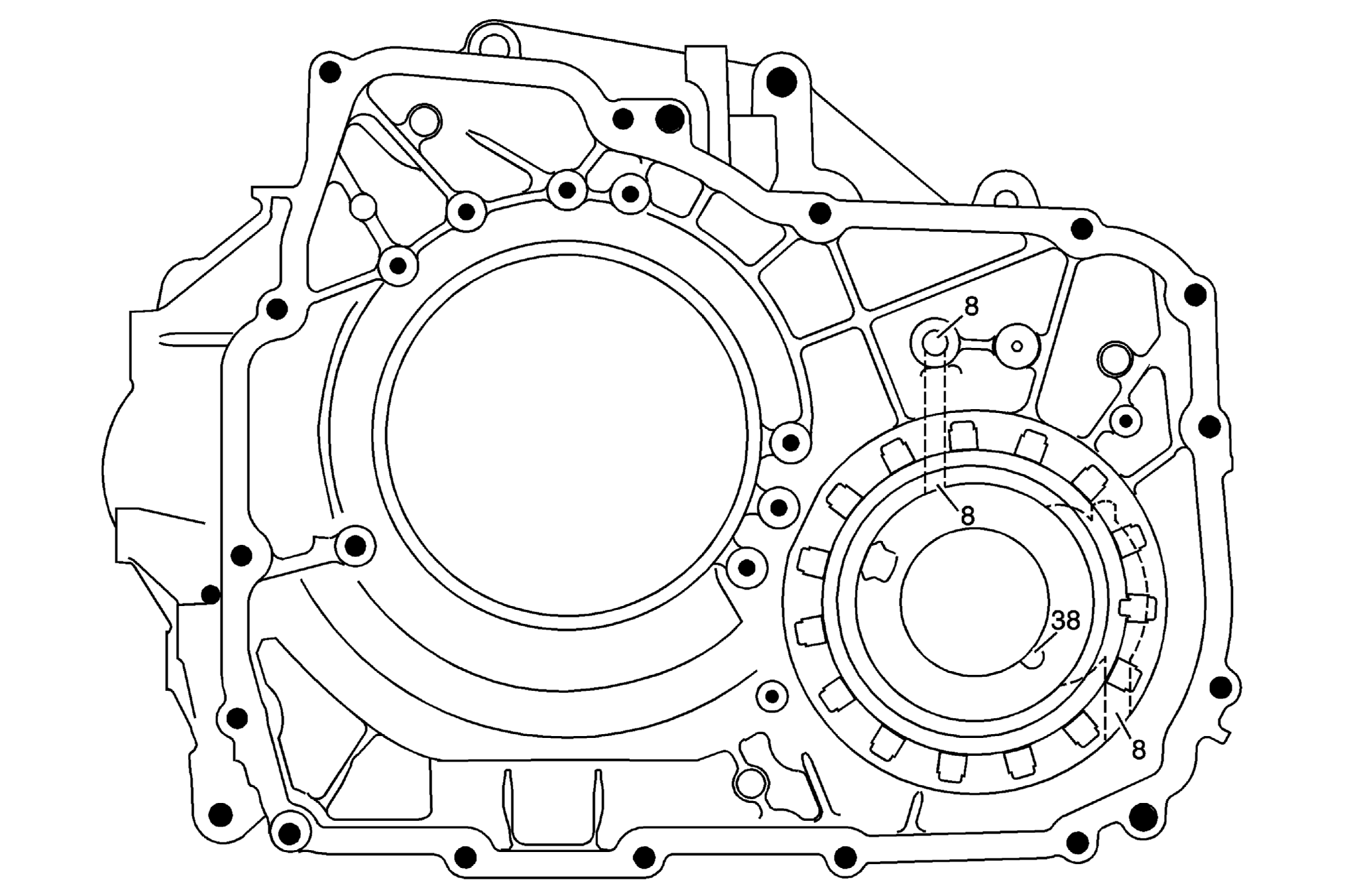

Fig 1: Identifying Torque Converter Clutch Housing Fluid Passages - Pump Side (Front)
GM1898245Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
8 Lube
38 Seal Drainback
