Pump Cover - Pump Body Side (Back)

WARNING: This page is about a different variant/trim than selected.

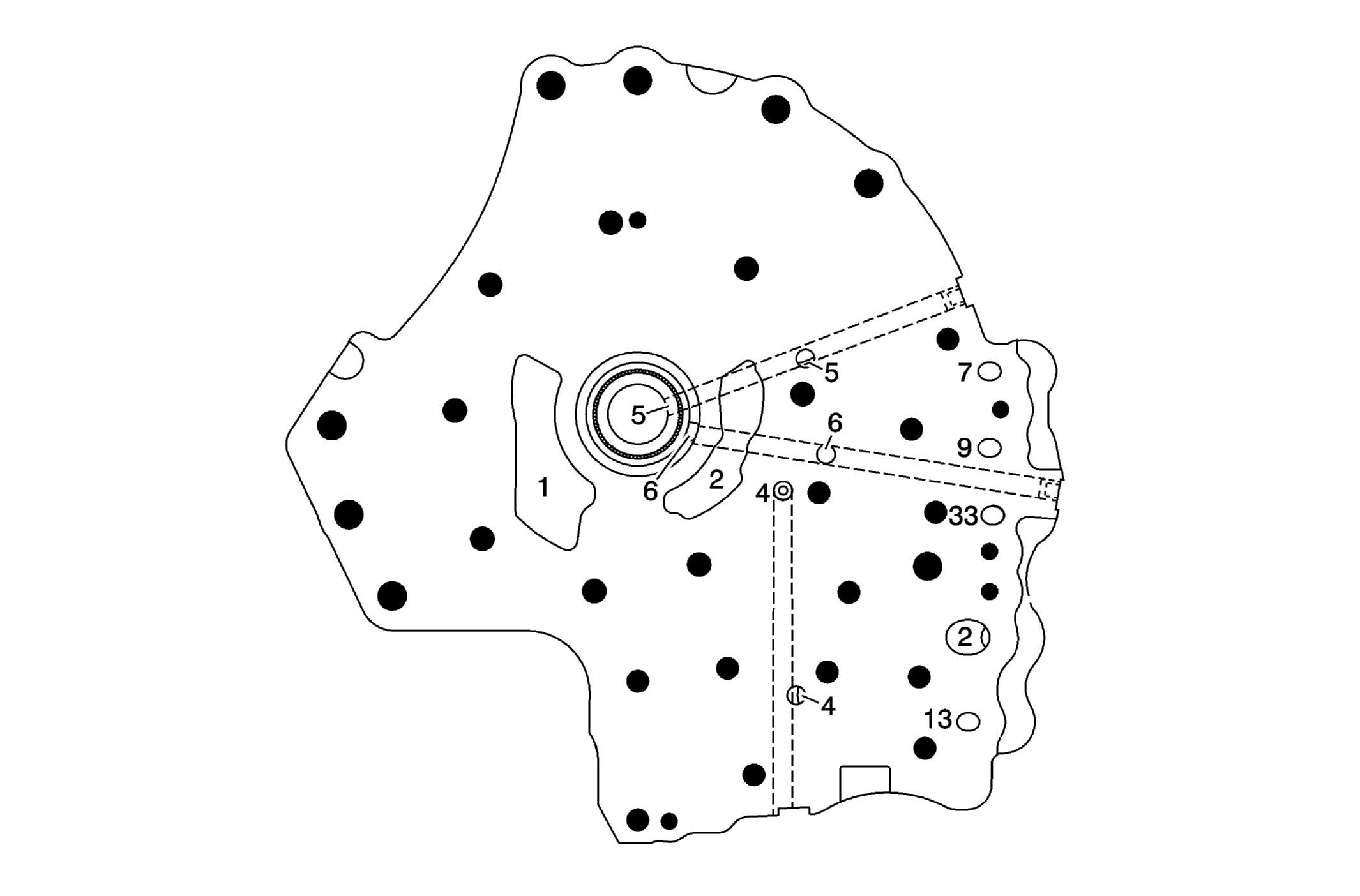

Fig 1: Identifying Pump Cover Fluid Passages - Pump Body Side (Back)
GM1898220Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Suction
2 Line
4 Converter Feed
5 TCC Released
6 TCC Apply
7 Cooler Feed
9 Regulated Apply
13 PCS Line
33 PCS TCC
