Control Valve Body - Channel Plate Side (Right - No Valves)
WARNING: This page is about a different variant/trim than selected.

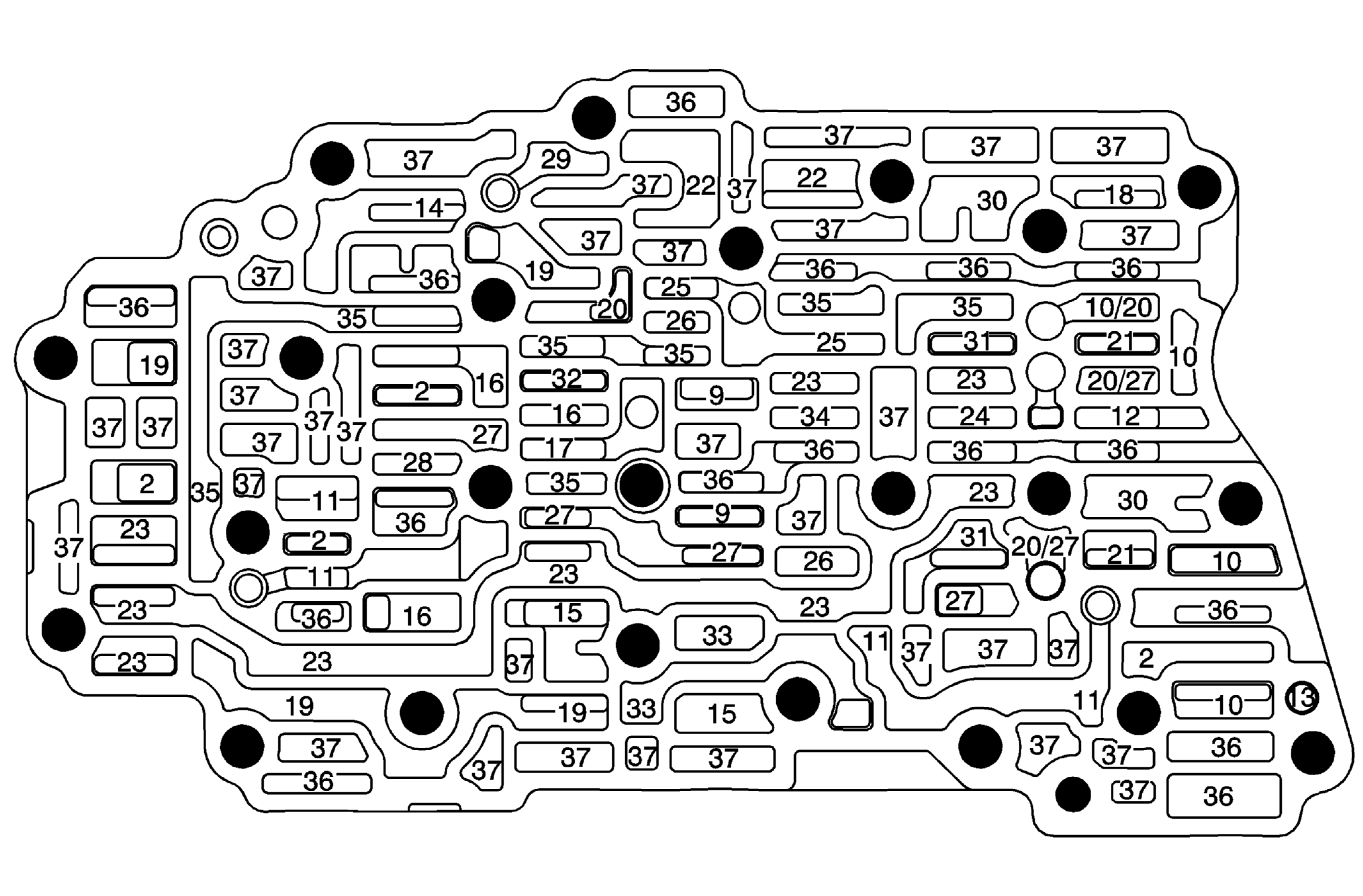

| Callout | Component Name |
|---|---|
| 2 | Line |
| 9 | Regulated Apply |
| 10 | Compensator Feed |
| 11 | Actuator Feed Limit |
| 12 | PS3 |
| 13 | PCS Line |
| 14 | PCS R1/456 Clutch |
| 15 | Shift Solenoid |
| 16 | R1/456 Clutch Feed |
| 17 | R1 |
| 18 | PCS 35 Reverse Clutch |
| 19 | Reverse |
| 20 | 35 Reverse Clutch Feed |
| 21 | 35 Reverse Clutch |
| 22 | PCS 1234 Clutch |
| 23 | Drive |
| 24 | PS2 |
| 25 | 1234 Clutch |
| 26 | 1234 Clutch Feedback |
| 27 | Drive 1-6 |
| 28 | PS4 |
| 29 | CSV2 Latch |
| 30 | PCS 26 Clutch |
| 31 | 26 Clutch |
| 32 | 456 Clutch |
| 33 | PCS TCC |
| 34 | PS1 |
| 35 | Exhaust Backfill |
| 36 | Exhaust |
| 37 | Void |
