Control Valve Body - Case Side (Left)

WARNING: This page is about a different variant/trim than selected.

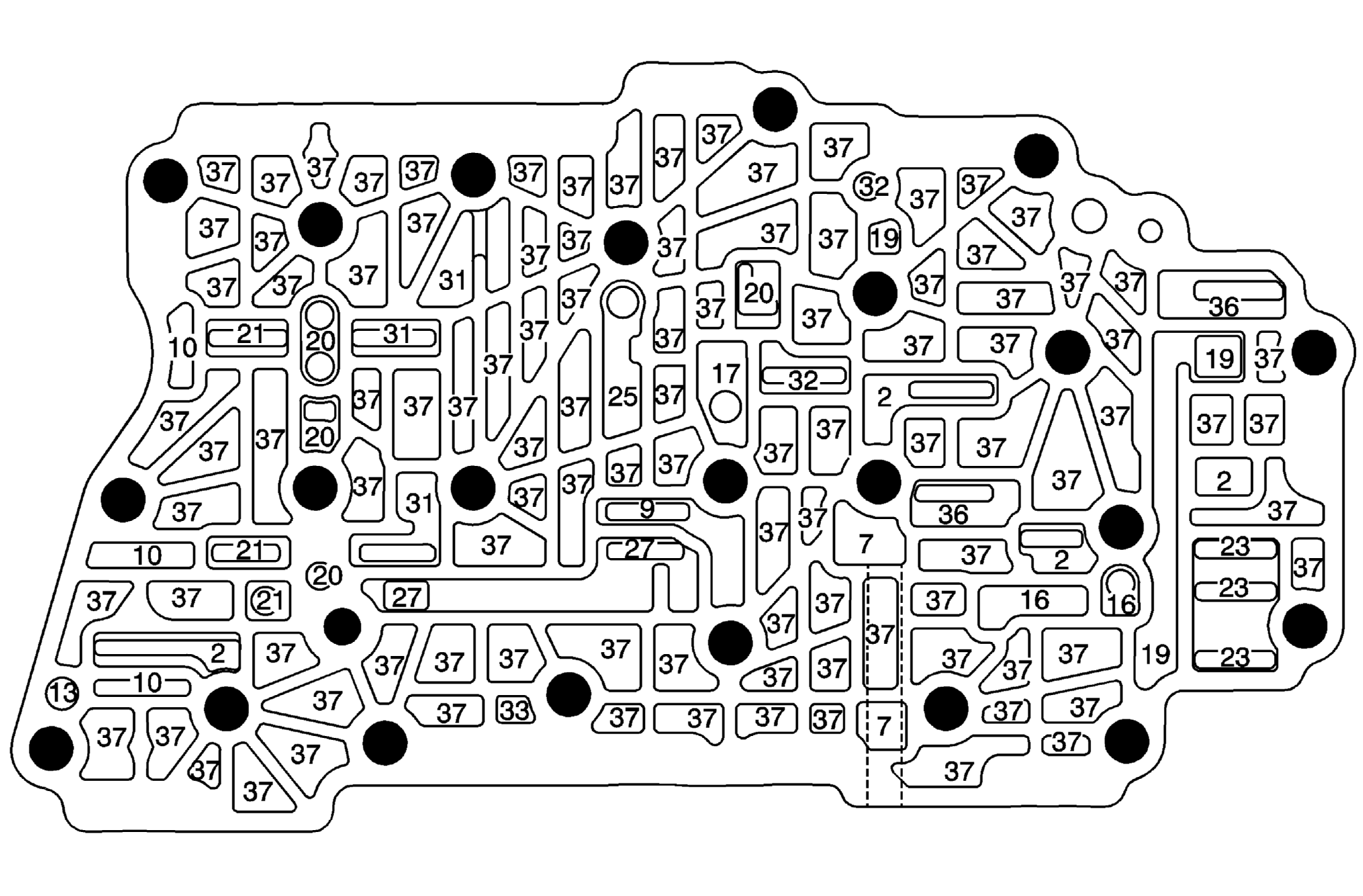

Fig 1: Identifying Control Valve Body Fluid Passages - Case Side (Left)
GM1898205Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
2 Line
7 Cooler Feed
9 Regulated Apply
10 Compensator Feed
13 PCS Line
16 R1/456 Clutch Feed
17 R1
19 Reverse
20 35 Reverse Clutch Feed
21 35 Reverse Clutch
23 Drive
25 1234 Clutch
27 Drive 1-6
31 26 Clutch
32 456 Clutch
33 PCS TCC
36 Exhaust
37 Void
