Channel Plate - Control Valve Body Side (Left)

WARNING: This page is about a different variant/trim than selected.

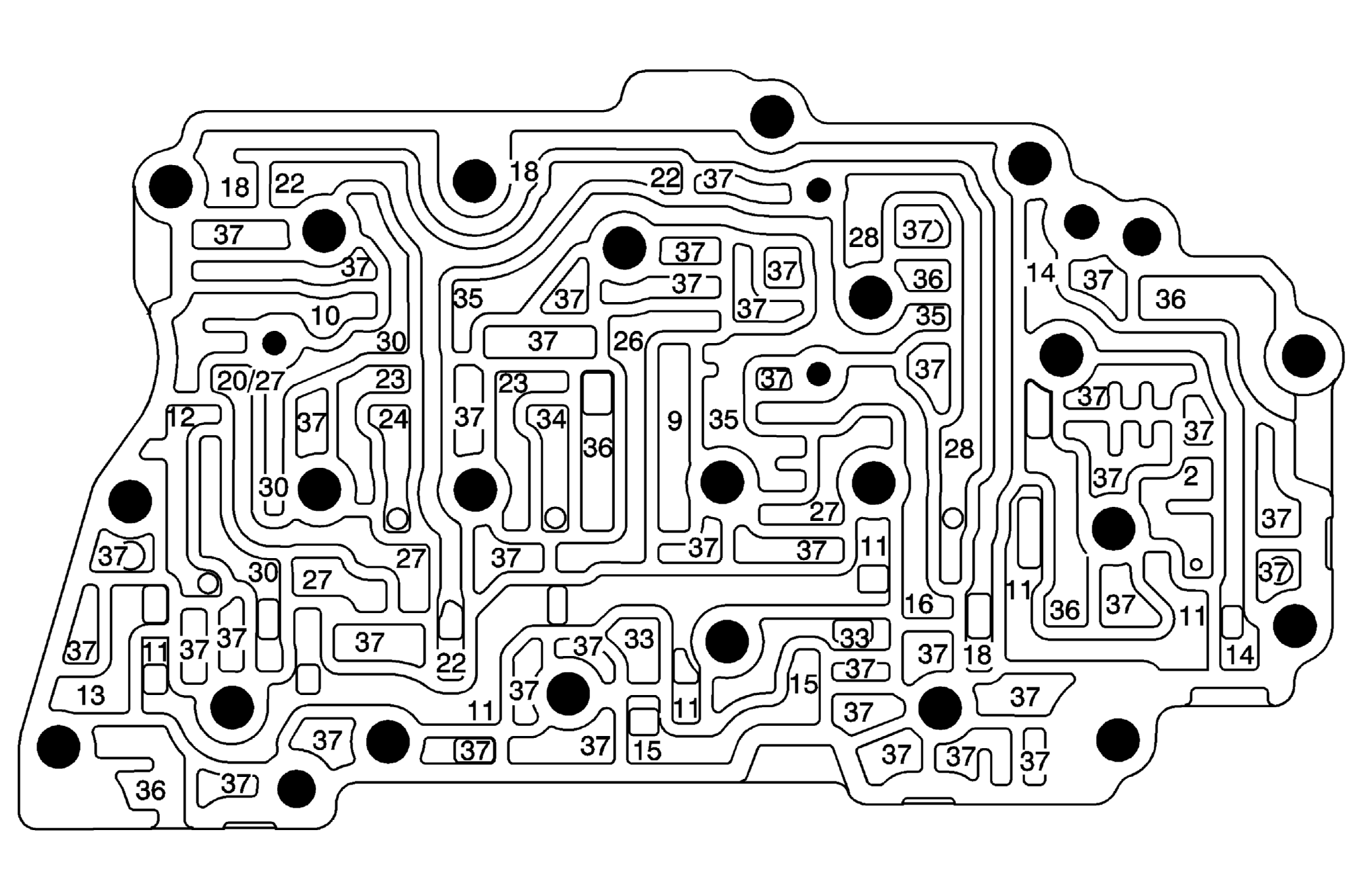

Fig 1: Identifying Channel Plate - Control Valve Body Side Fluid Passages (Left)
GM1898263Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
2 Line
9 Regulated Apply
10 Compensator Feed
11 Actuator Feed Limit
12 PS3
13 PCS Line
14 PCS R1/456 Clutch
15 Solenoid
16 R1/456 Clutch Feed
18 PCS 35 Reverse Clutch
20 35 Reverse Clutch Feed
22 PCS 1234 Clutch
23 Drive
24 PS2
26 1234 Clutch Feedback
27 Drive 1-6
28 PS4
30 PCS 26 Clutch
33 PCS TCC
34 PS1
35 Exhaust Backfill
36 Exhaust
37 Void
