Channel Plate - Control Solenoid Valve Assembly Side (Right)

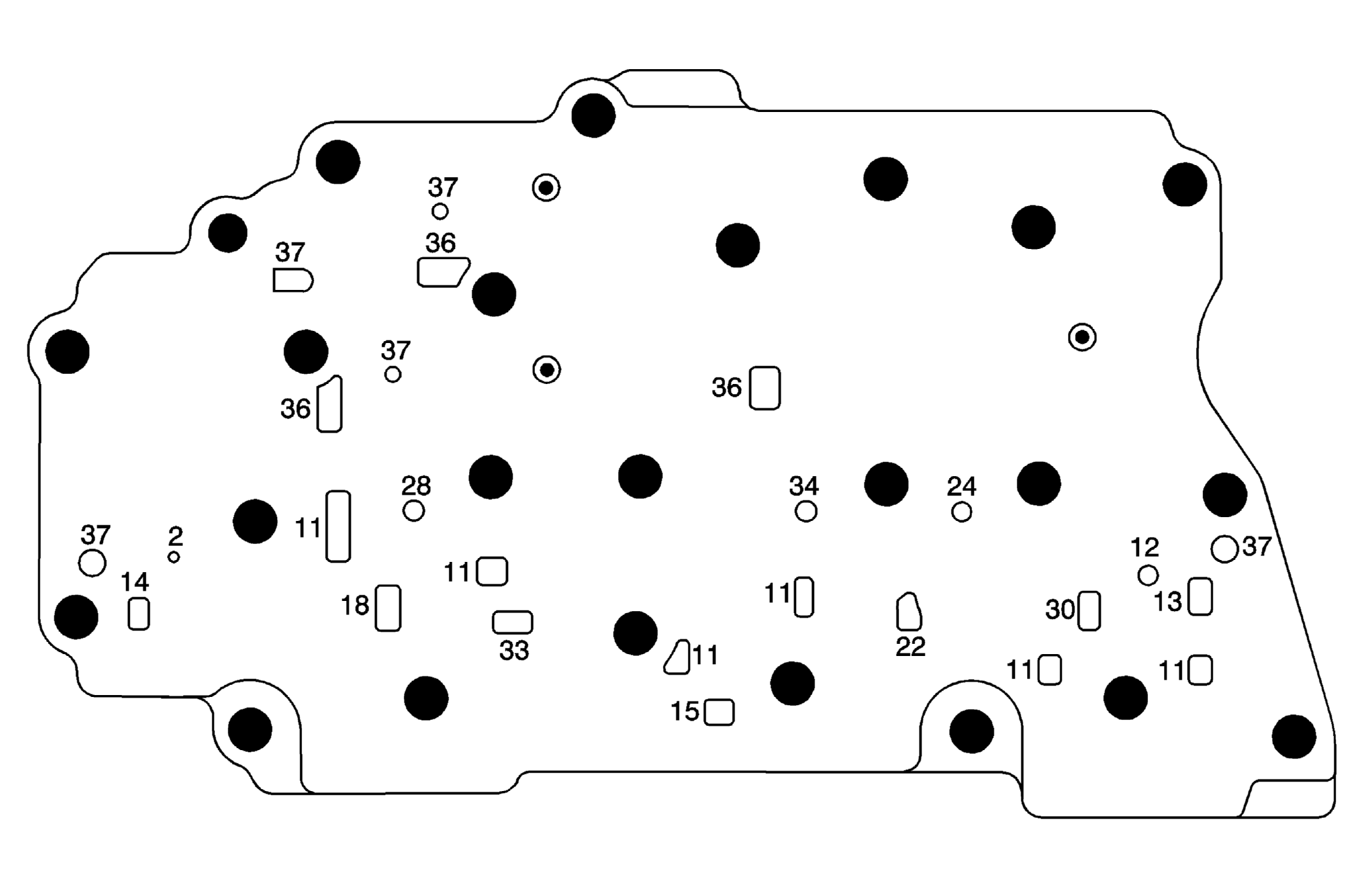

Fig 1: Identifying Channel Plate - Control Solenoid Valve Assembly Side Fluid Passages (Right)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
2	Line
11	Actuator Feed Limit
12	PS3
13	PCS Line
14	PCS R1/456 Clutch
15	Shift Solenoid
18	PCS 35 Reverse Clutch
22	PCS 1234 Clutch
24	PS2
28	PS4
30	PCS 26 Clutch
33	PCS TCC
34	PS1
36	Exhaust
37	Void
