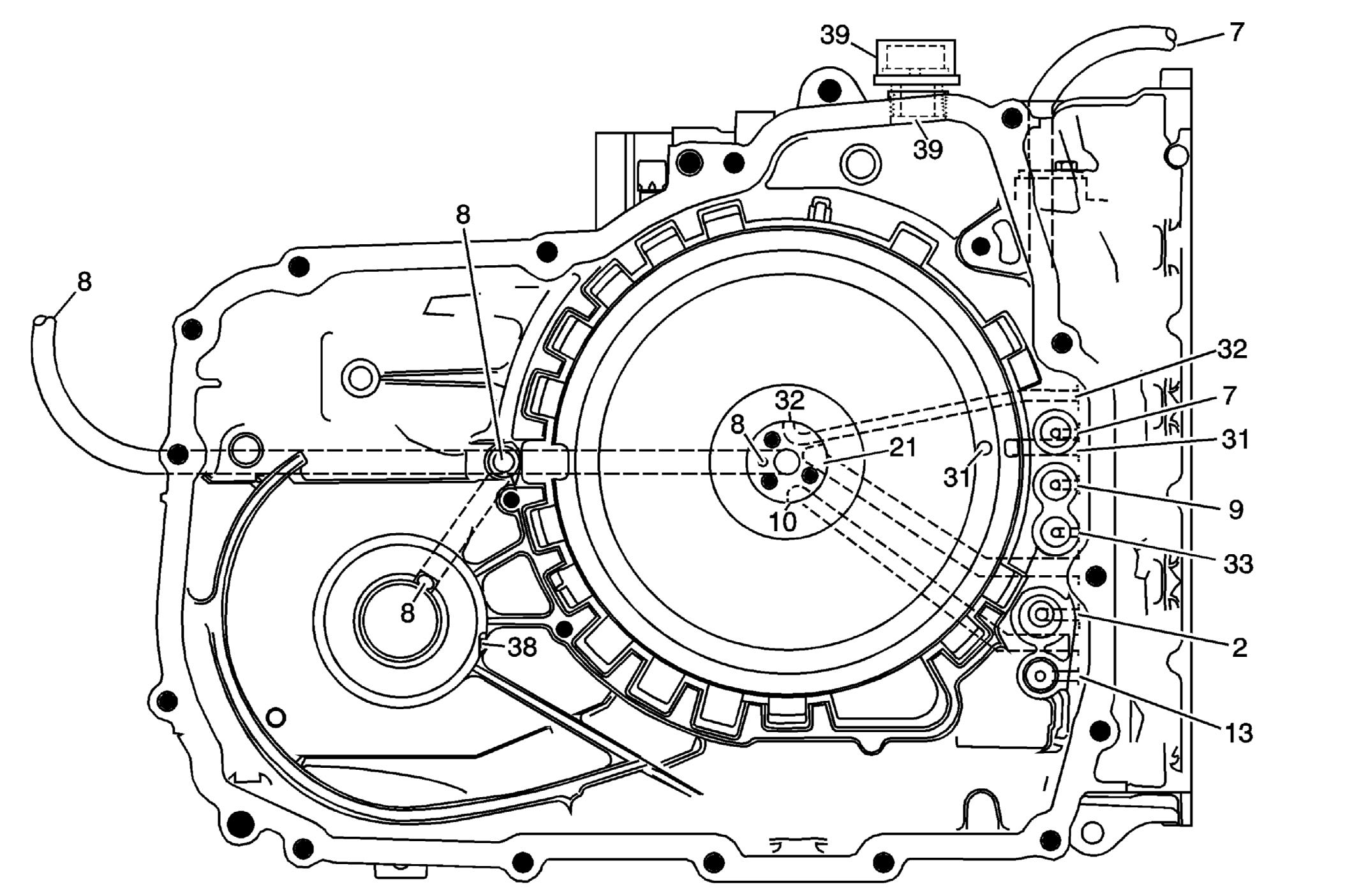

Case - Pump Side (Back)
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 2 |
Line |
| 7 |
Cooler Feed |
| 8 |
Lube |
| 9 |
Regulated Apply |
| 10 |
Compensator Feed |
| 13 |
PCS Line |
| 21 |
35 Reverse Clutch |
| 31 |
26 Clutch |
| 32 |
456 Clutch |
| 33 |
PCS TCC |
| 38 |
Seal Drainback |
| 39 |
Vent |
