Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal (6T30)
WARNING: This page is about a different variant/trim than selected.
Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal (6T30)

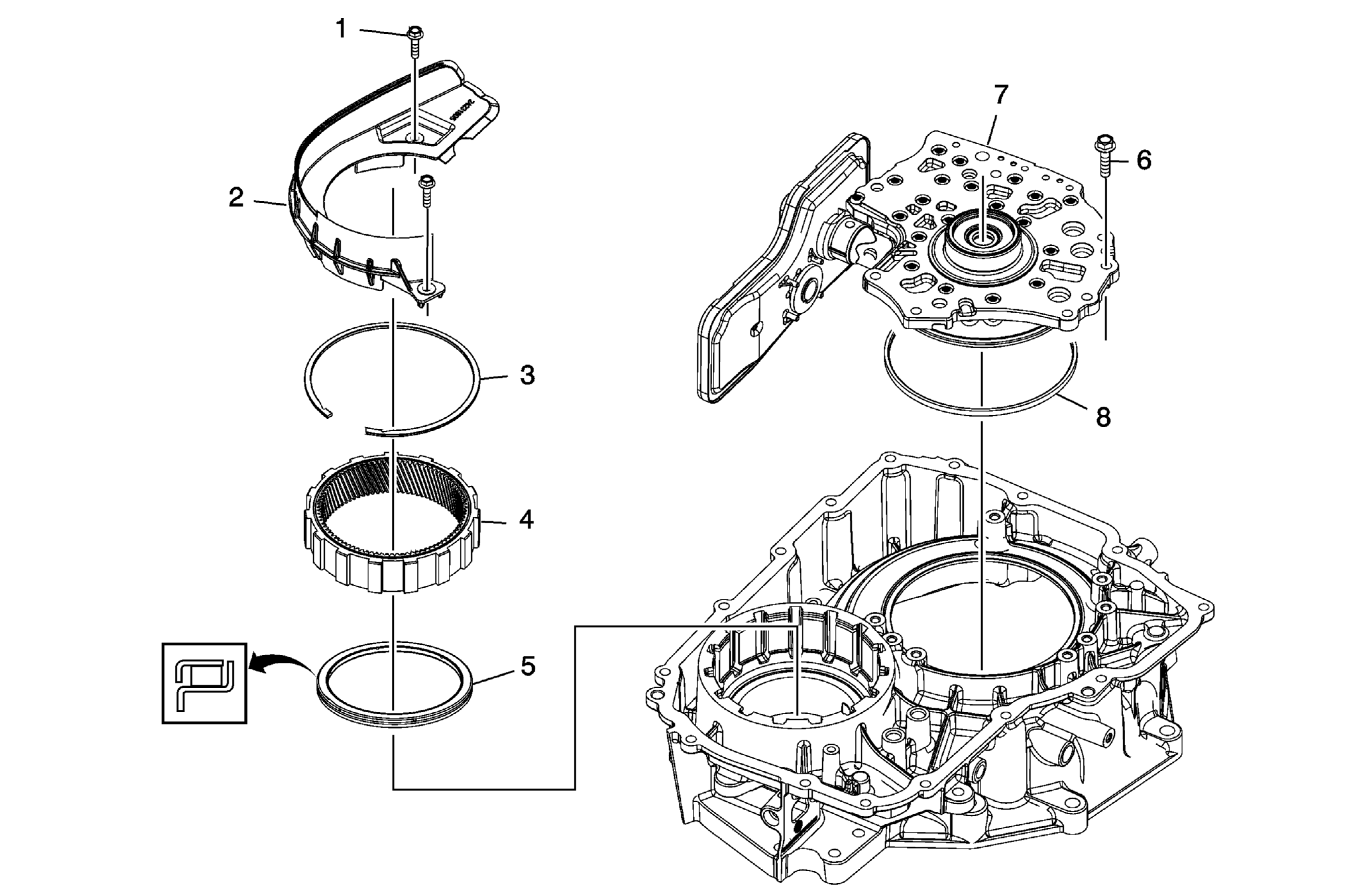

| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Baffle Bolts M6 x 25 (Qty: 2) |
| 2 | Front Differential Carrier Baffle |
| 3 | Front Differential Ring Gear Retainer TIP: Note the direction of the taper to ensure proper installation. |
| 4 | Front Differential Ring Gear |
| 5 | Front Differential Carrier Bearing Assembly |
| 6 | Fluid Pump Bolts M8 x 33 (Qty: 7) |
| 7 | Fluid Pump Assembly |
| 8 | Torque Converter and Differential Housing Seal |
