Fluid Pump w/Valve Trains Assemble
WARNING: This page is about a different variant/trim than selected.
Fluid Pump w/Valve Trains Assemble

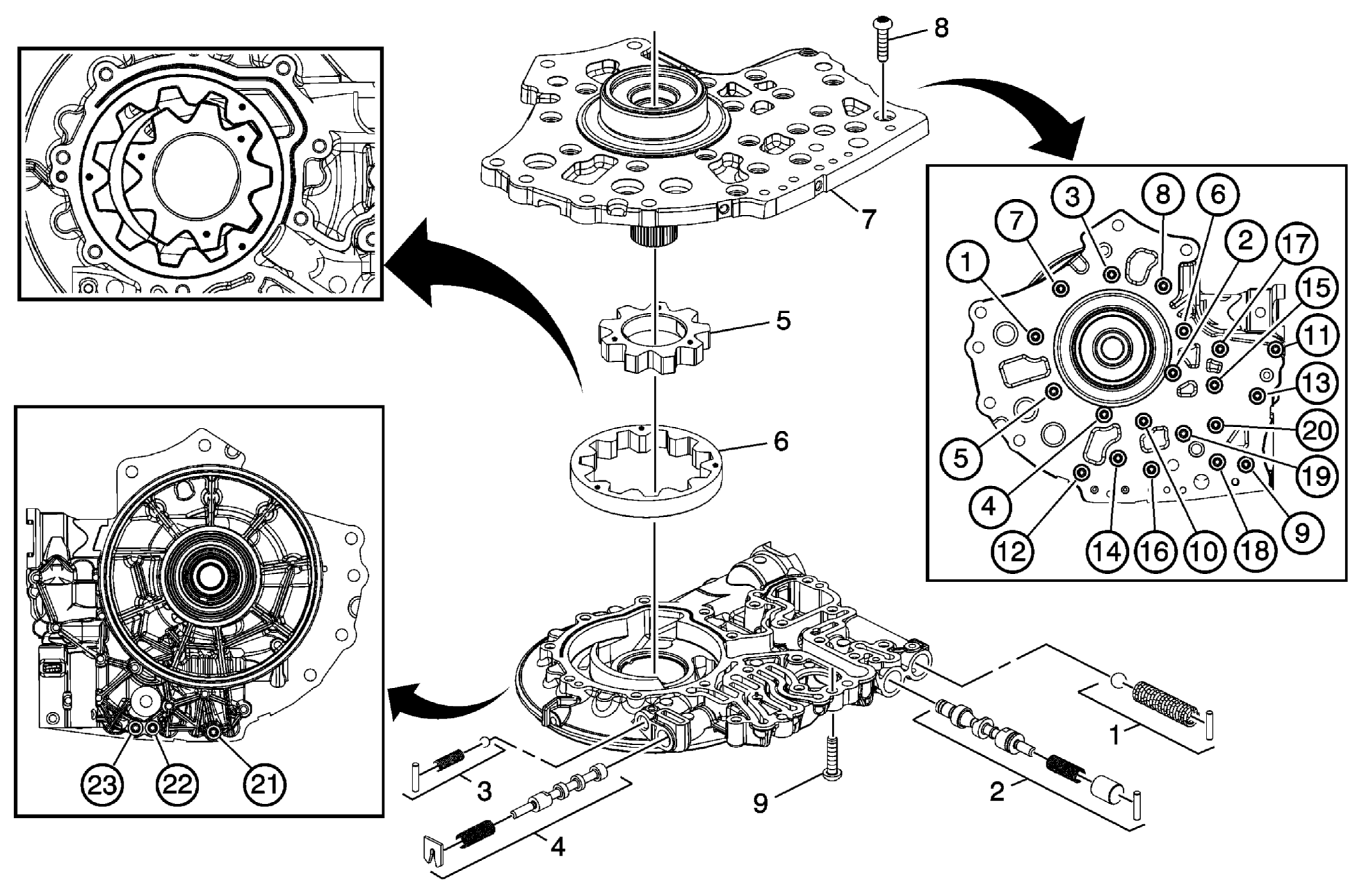

| Callout | Component Name |
|---|---|
| 1 | TCC Blow Off Ball Valve Train |
| 2 | Pressure Regulator Valve Train |
| 3 | Fluid Pump Blow Off Ball Valve Train |
| 4 | TCC Control Valve Train |
| 5 | Fluid Pump Drive Gear TIP: The chamfer on the drive gear teeth face towards the pump body. |
| 6 | Fluid Pump Driven Gear TIP: The chamfer on the driven gear O.D. faces the pump body. |
| 7 | Fluid Pump Cover |
| 8 | Fluid Pump Cover Bolts M6 x 21.5 (Qty: 20)
CAUTION:
Refer to Fastener Caution . Tighten 12 N.m (106 lb in) |
| 9 | Fluid Pump Cover Bolts M6 x 18.5 (Qty: 3) Tighten 12 N.m (106 lb in) |
