Park Pawl Actuator Guide Removal
WARNING: This page is about a different variant/trim than selected.

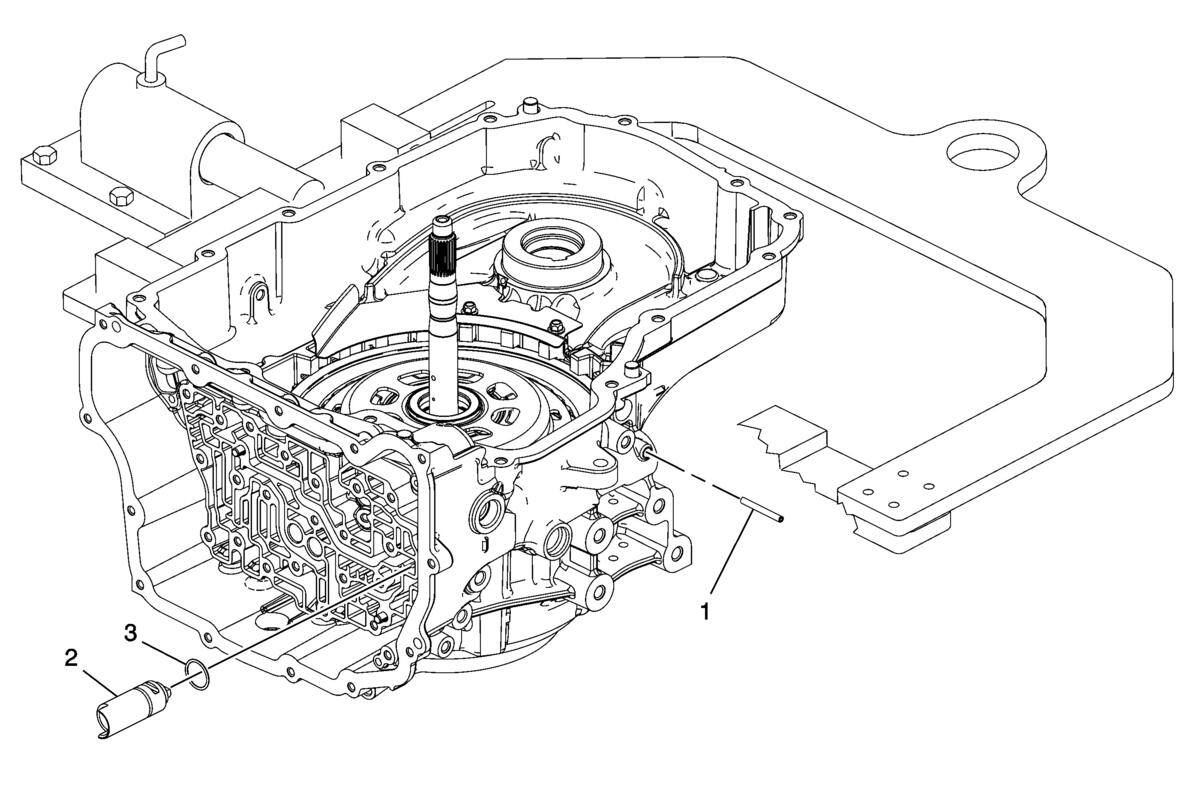

Courtesy of GENERAL MOTORS COMPANY Park Pawl Actuator Guide Removal
| Callout |
Component Name |
| 1 |
Park Pawl Actuator Guide Pin
NOTE:
Use side cutter to remove the pin (1) and discard.
|
| 2 |
Park Pawl Actuator Guide Assembly |
| 3 |
Park Pawl Actuator Guide Assembly Seal
NOTE:
Discard the seal. It is not reusable.
|
