Park Pawl Actuator Installation
WARNING: This page is about a different variant/trim than selected.

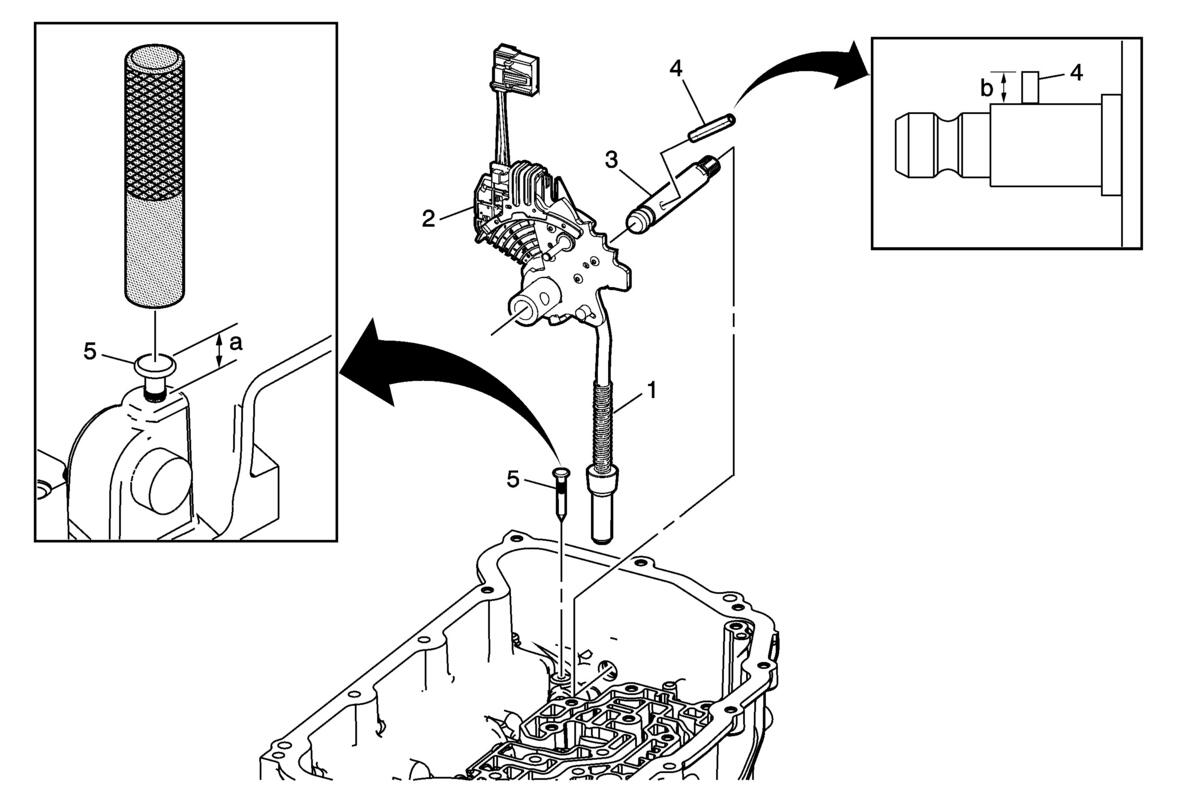

Fig 1: Identifying Manual Shift Detent Lever with Shaft Position Switch Assembly & Park Pawl Actuator
Park Pawl Actuator Installation
| Callout | Component Name |
|---|---|
| 1 | Park Pawl Actuator Assembly |
| 2 | Manual Shift Detent (w/Shaft Position Switch) Lever Assembly |
| 3 | Manual Shaft
NOTE:
Lubricate the shaft with ATF to prevent damage to the manual shift shaft seal during installation. |
| 4 | Manual Shaft Detent Lever Hub Pin
CAUTION:
Refer to Fastener Caution . Procedure Install the manual shaft detent lever hub pin to correct height.
NOTE:
Use a NEW pin to ensure proper engagement with the shaft. Specification 7.9 mm (0.38 in) (b) Special Tools DT-48550 Detent Lever Pin Remover For equivalent regional tools, refer to Special Tools . |
| 5 | Manual Shift Shaft Pin
CAUTION:
Use the manual shaft pin installer to install the pin at the correct height in order to properly secure the manual shaft. If you install the pin too deep, the case bore may crack. Procedure Inspect pin installed height is within specifications.
NOTE:
Use a NEW pin to ensure proper engagement with the case. Specification 7.2-8.2 mm (0.28-0.32 in) (a) Special Tools DT-41229 Manual Shaft Pin Installer For equivalent regional tools, refer to Special Tools . |
