Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble (Gen 1)
WARNING: This page is about a different variant/trim than selected.
Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble (Gen 1)

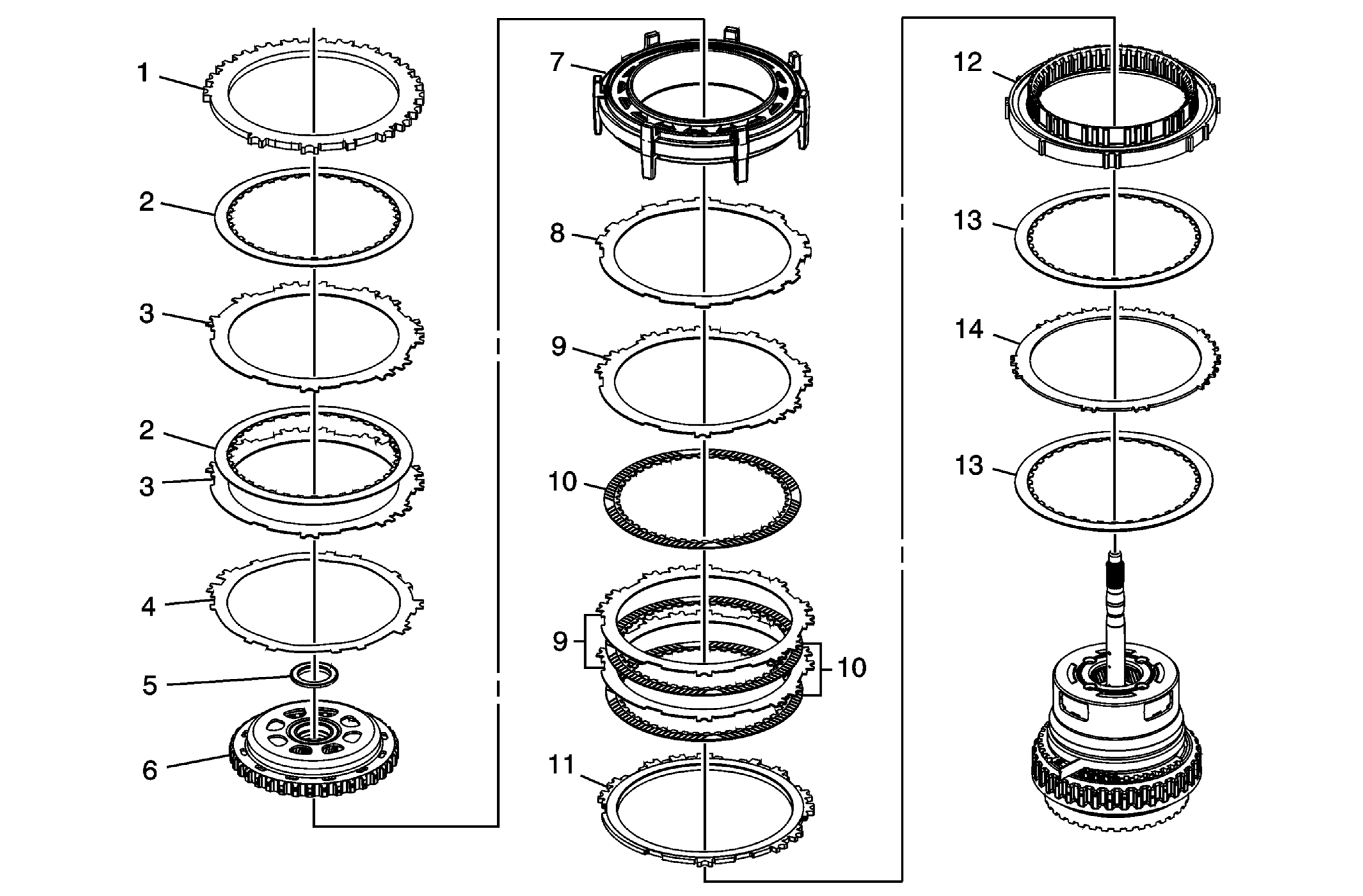

| Callout | Component Name |
|---|---|
| 1 | 1-2-3-4 Clutch Backing Plate |
| 2 | 1-2-3-4 Clutch Plate Assembly (Qty: 2) |
| 3 | 1-2-3-4 Clutch Plate (Qty: 2) |
| 4 | 1-2-3-4 Clutch Waved Plate |
| 5 | Output Sun Gear Thrust Bearing Assembly TIP: The sun gear thrust bearing may be stuck to the driven sprocket hub. |
| 6 | Output Sun Gear Assembly |
| 7 | Low-Reverse and 1-2-3-4 Clutch Housing Assembly |
| 8 | Low and Reverse Clutch Apply Plate |
| 9 | Low and Reverse Clutch Plate (Qty: 3) |
| 10 | Low and Reverse Clutch Plate Assembly (Qty: 3) |
| 11 | Low and Reverse Clutch Backing Plate |
| 12 | Low and Reverse Clutch Assembly (OWC) |
| 13 | 2-6 Clutch Plate Assembly (Qty: 2) |
| 14 | 2-6 Clutch Plate (Qty: 1) |
