Low and Reverse Clutch Piston Removal

WARNING: This page is about a different variant/trim than selected.

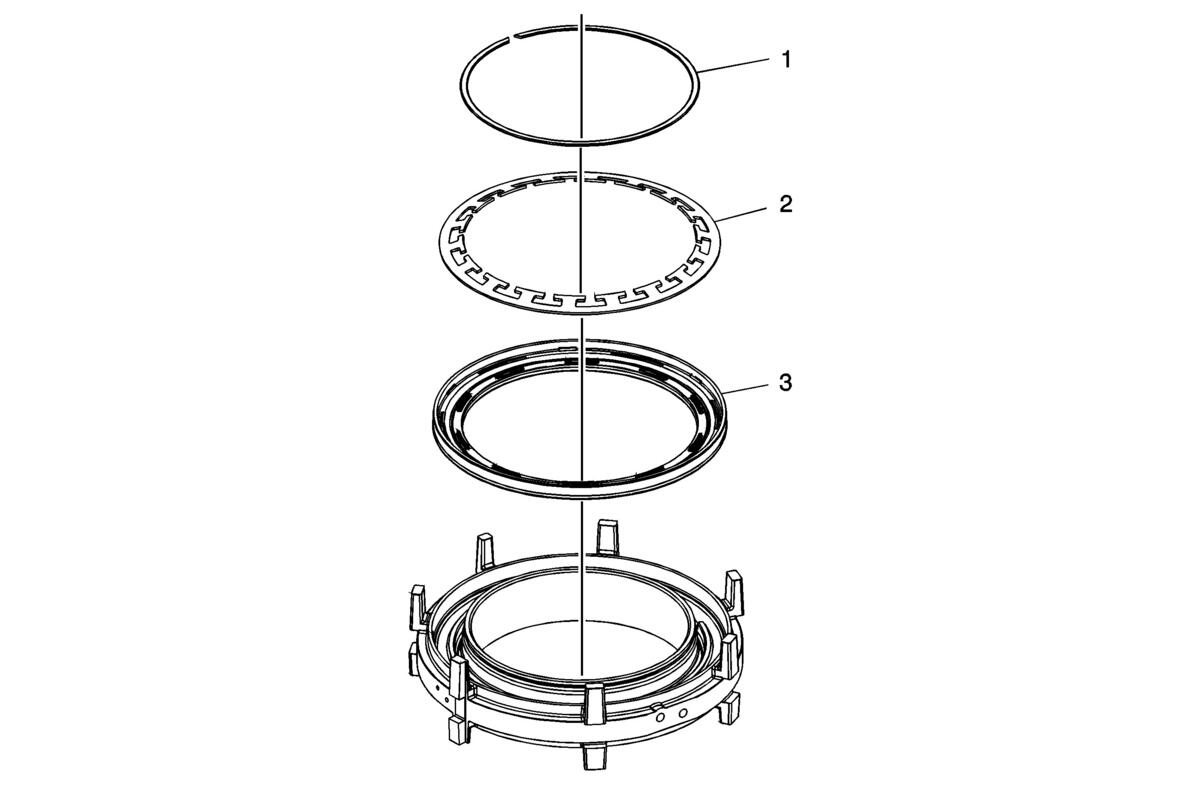

Fig 1: View Of Low & Reverse Clutch Piston
GM1891392Courtesy of GENERAL MOTORS COMPANY
Low and Reverse Clutch Piston Removal

Callout Component Name
1 Low and Reverse Clutch Spring Retainer
Special Tool
GE-8059  Snap Ring Pliers - Parallel Jaw
For equivalent regional tools, refer to Special Tools .
2 Low and Reverse Clutch Spring
3 Low and Reverse Clutch Piston
