1-2-3-4 Clutch Piston Removal

WARNING: This page is about a different variant/trim than selected.

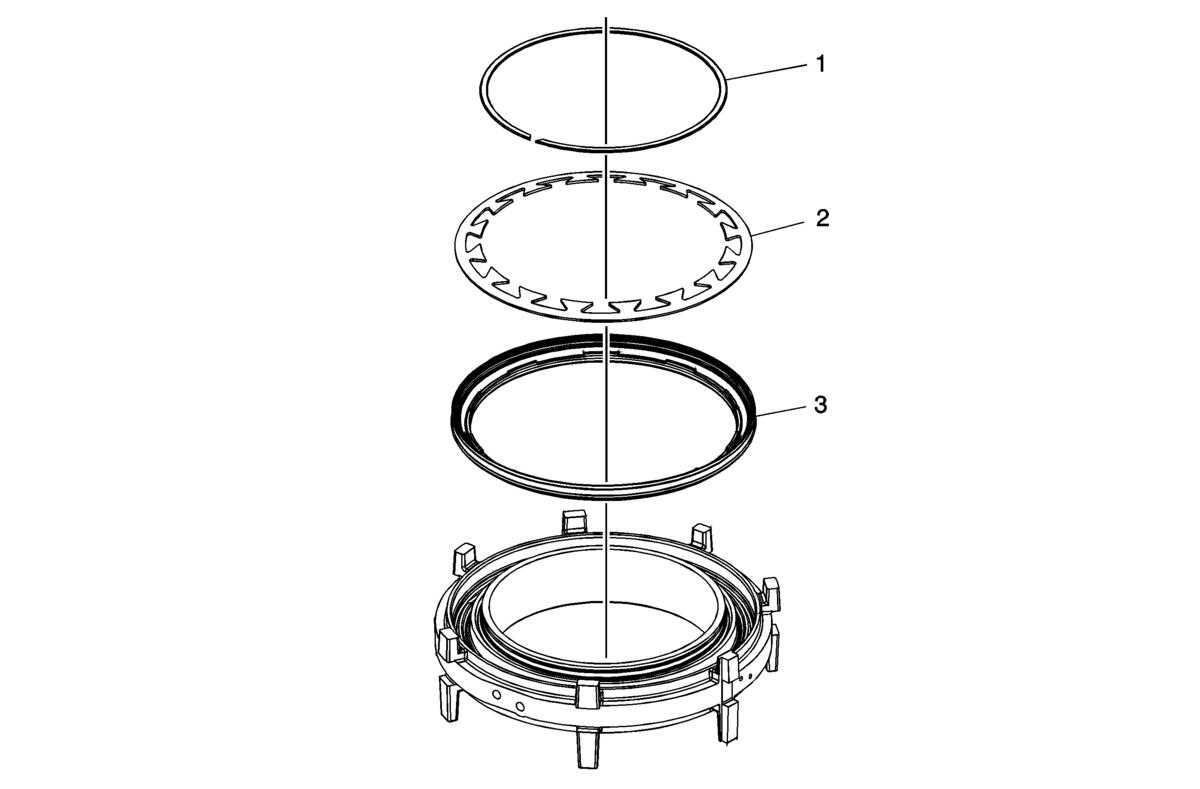

Fig 1: View Of 1-2-3-4 Clutch Piston
GM1891395Courtesy of GENERAL MOTORS COMPANY
1-2-3-4 Clutch Piston Removal

Callout Component Name
1 1-2-3-4 Clutch Spring Retainer
Special Tool
GE-8059  Snap Ring Pliers - Parallel Jaw
For equivalent regional tools, refer to Special Tools .
2 1-2-3-4 Clutch Spring
3 1-2-3-4 Clutch Piston
