Drive and Driven Sprocket, Drive Link, and Park Pawl Removal (6T30)

WARNING: This page is about a different variant/trim than selected.

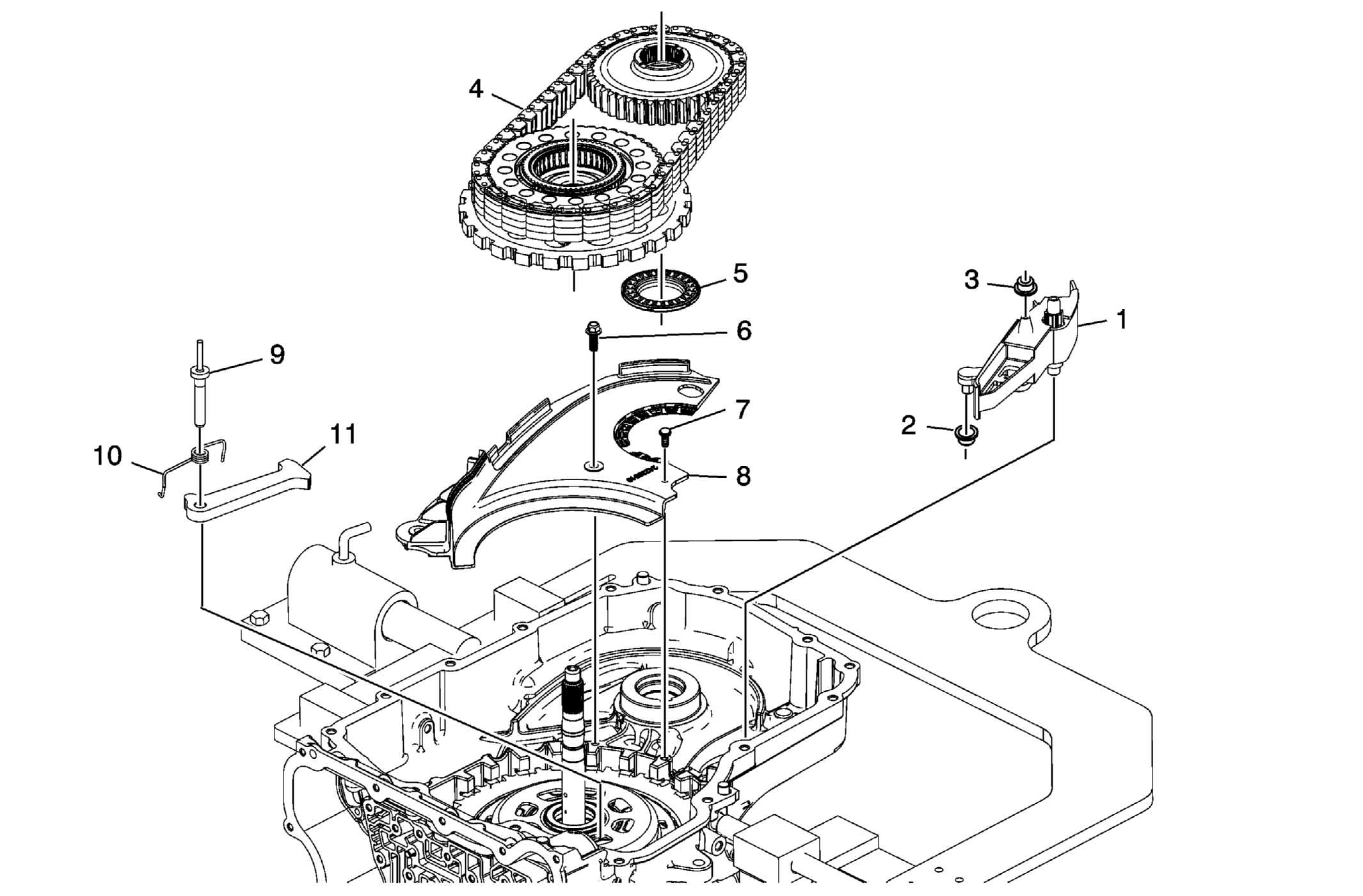

Fig 1: Drive And Driven Sprocket, Drive Link and Park Pawl Components (6T30)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Drive Link Lube Scoop
2	Drive Link Lube Scoop Seals
3	Drive Link Lube Fluid Seal
4	Driven Sprocket Assembly, Drive Sprocket and Park Gear Assembly and Drive Link The drive link, drive and driven sprocket assemblies must be removed at the same time. The driven sprocket ball bearing inner race has a slight interference fit with the case. Pull straight up to ease removal.
5	Driven Sprocket Bearing Assembly TIP: The driven sprocket bearing may be stuck to the driven sprocket.
6	Baffle Retainer
7	Front Differential Carrier Baffle Bolts M6 x 16 (Qty: 2)
8	Front Differential Carrier Baffle
9	Park Pawl Shaft
10	Park Pawl Spring
11	Park Pawl
