Drive and Driven Sprocket, Drive Link, and Park Pawl Installation (6T30)

WARNING: This page is about a different variant/trim than selected.

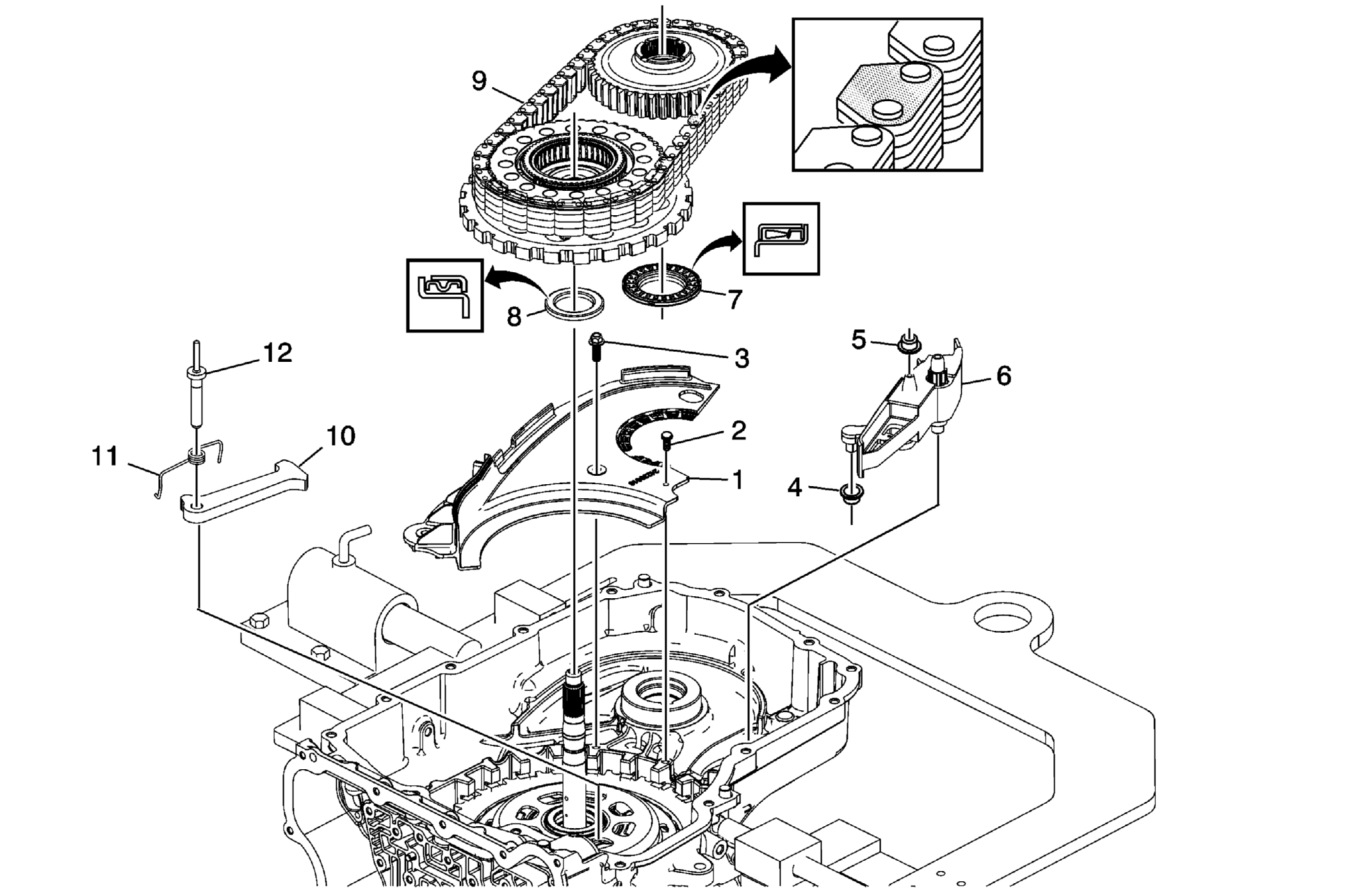

Fig 1: Drive And Driven Sprocket, Drive Link And Park Pawl Components

GM2202232

Courtesy of GENERAL MOTORS COMPANY

Drive and Driven Sprocket, Drive Link, and Park Pawl Installation (6T30)

Callout	Component Name
1	Front Differential Carrier Baffle
2	Baffle Retainer
3	Front Differential Carrier Baffle Bolt M6 x 16 (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
4	Drive Link Lube Scoop Seal
5	Drive Link Lube Fluid Seal
6	Drive Link Lube Scoop
7	Driven Sprocket Bearing Assembly
8	Drive Sprocket Bearing Assembly
9	Driven Sprocket Assembly, Drive Sprocket Assembly and Drive Link Install the drive link with the colored links and/or part number facing up. The drive link, drive, and driven sprocket assemblies must be installed at the same time. The ball bearing should spin freely and smoothly. The driven sprocket ball bearing inner race has a slight interference fit with the case. Tap gently with the palm of a hand or a soft tip hammer to install.
10	Park Pawl
11	Park Pawl Spring
12	Park Pawl Shaft TIP: Check to ensure that the park pawl operates freely and is not binding.
