Timing Belt Upper Front Cover Replacement

WARNING: This page is about a different variant/trim than selected.

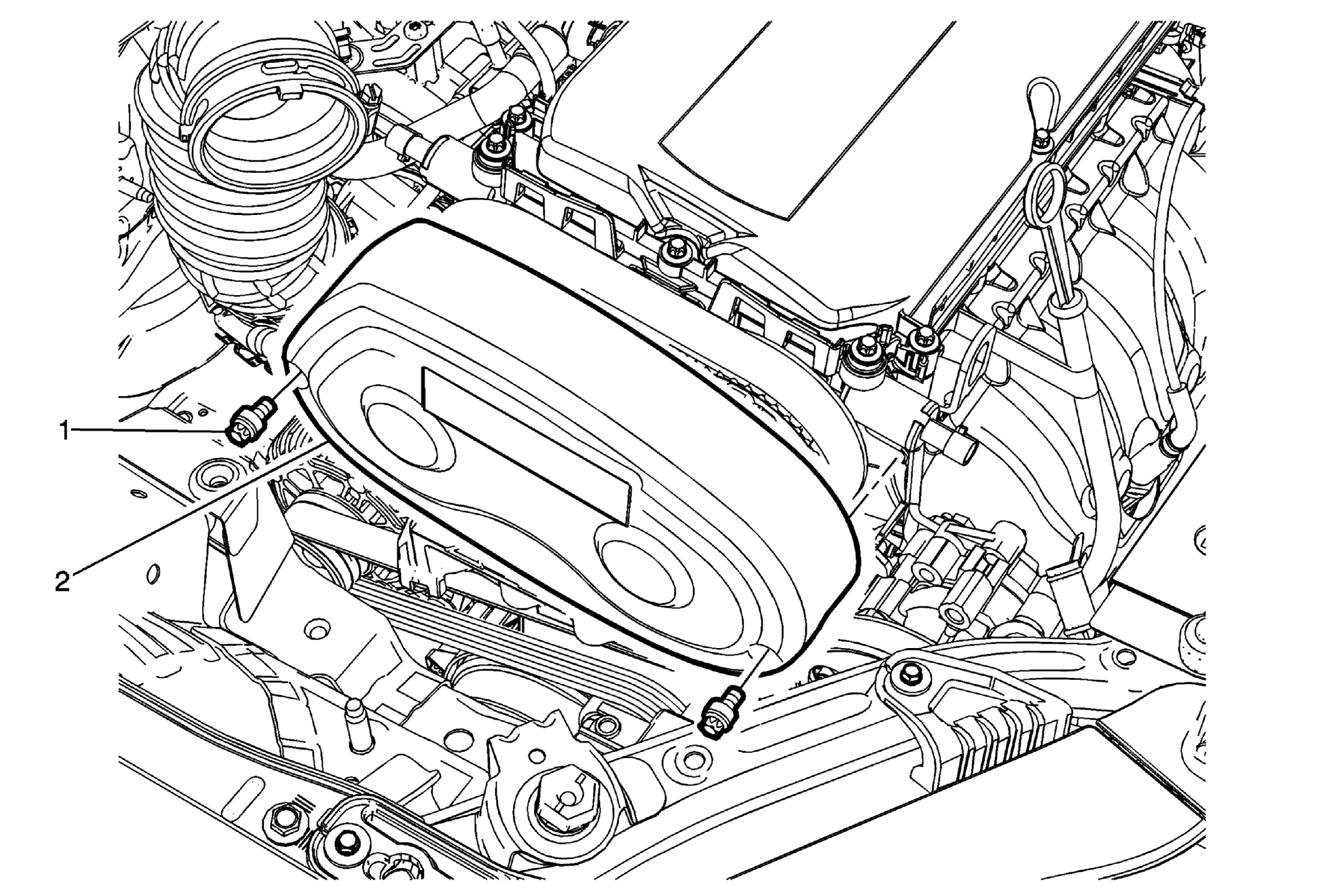

Fig 1: Timing Belt Upper Front Cover & Fasteners
GM2495359Courtesy of GENERAL MOTORS COMPANY
Timing Belt Upper Front Cover Replacement

Callout Component Name
1 Timing Belt Upper Front Cover Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Timing Belt Upper Front Cover
