Timing Belt Idler Pulley Replacement

WARNING: This page is about a different variant/trim than selected.

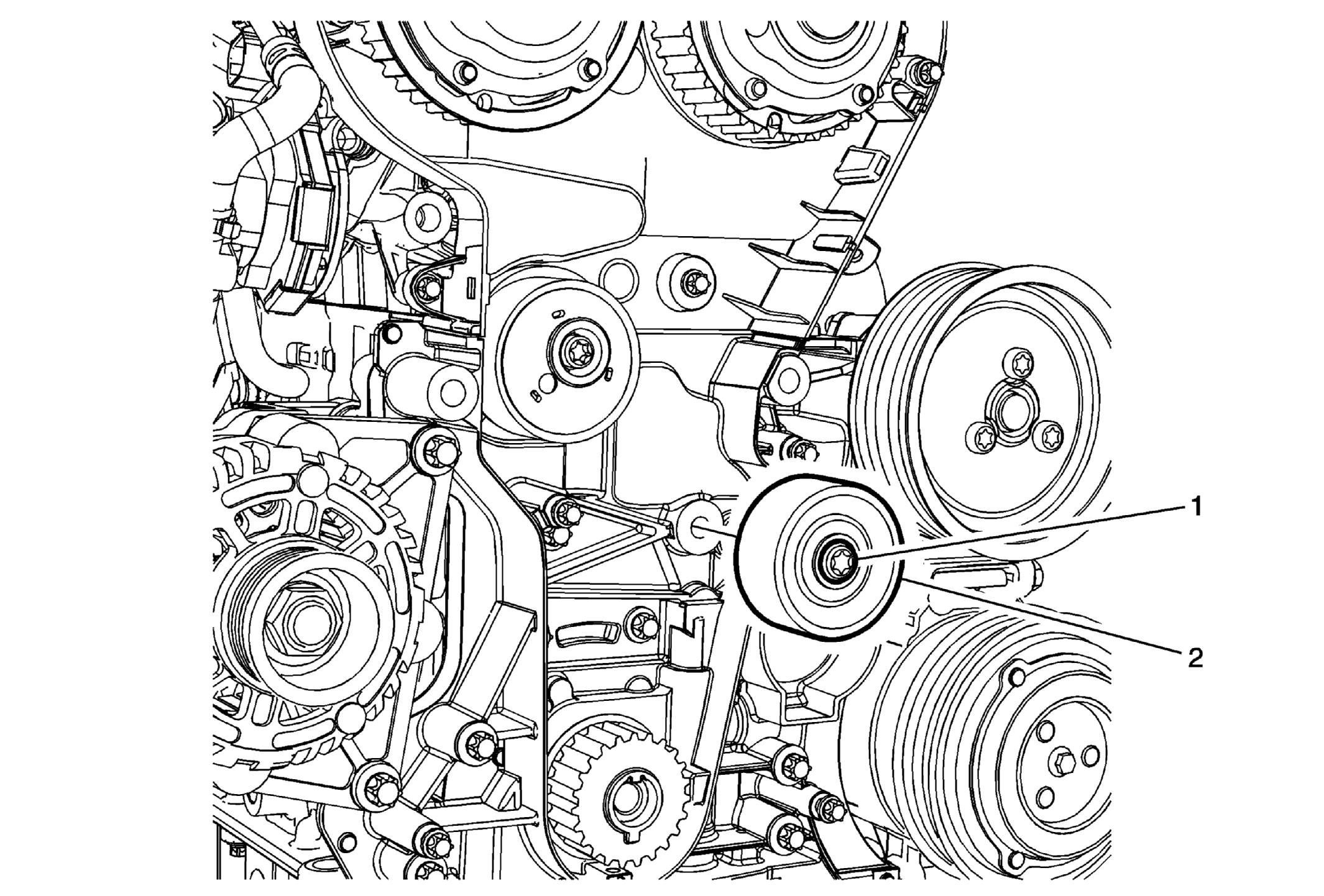

Fig 1: Timing Belt Idler Pulley & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the timing belt. Refer to Timing Belt Replacement .
1	Timing Belt Idler Pulley Bolt CAUTION: Refer to Fastener Caution . Tighten First pass 20 (15 lb ft) Second pass 120 degrees Third pass 15 degrees Special Tools EN-45059 Torque Angle Sensor Kit For equivalent regional tools, refer to Special Tools .
2	Timing Belt Idler Pulley Procedure Ensure to use a NEW BOLT whenever the timing belt idler pulley is removed.

Callout

Component Name

Preliminary Procedure
Remove the timing belt. Refer to Timing Belt Replacement .

Timing Belt Idler Pulley Bolt

CAUTION:

Tighten

Special Tools
EN-45059 Torque Angle Sensor Kit
For equivalent regional tools, refer to Special Tools .

Timing Belt Idler Pulley
Procedure
Ensure to use a NEW BOLT whenever the timing belt idler pulley is removed.
