Installation Procedure

WARNING: This page is about a different variant/trim than selected.

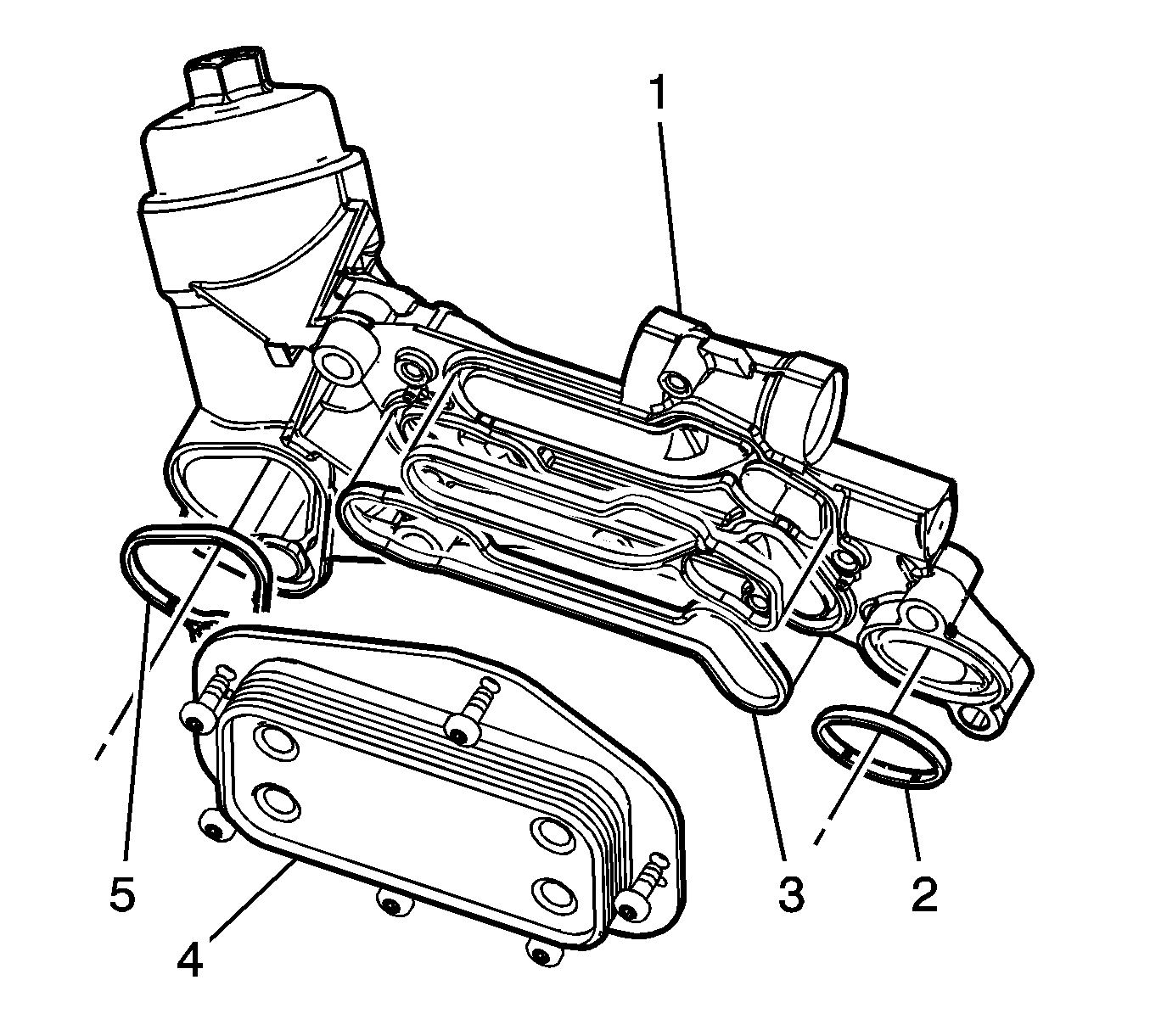

    Fig 1: Heat Exchanger & Gasket
    GM2049565Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Check for damage or leakage on the oil cooler gaskets. If damage or leakage, replace the related gasket with a new one.

  1. Install the heat exchanger (4) with the gasket to the oil cooler housing.

    Tighten

    Tighten the heat exchanger bolts to 8 N.m (70.8 lb in).

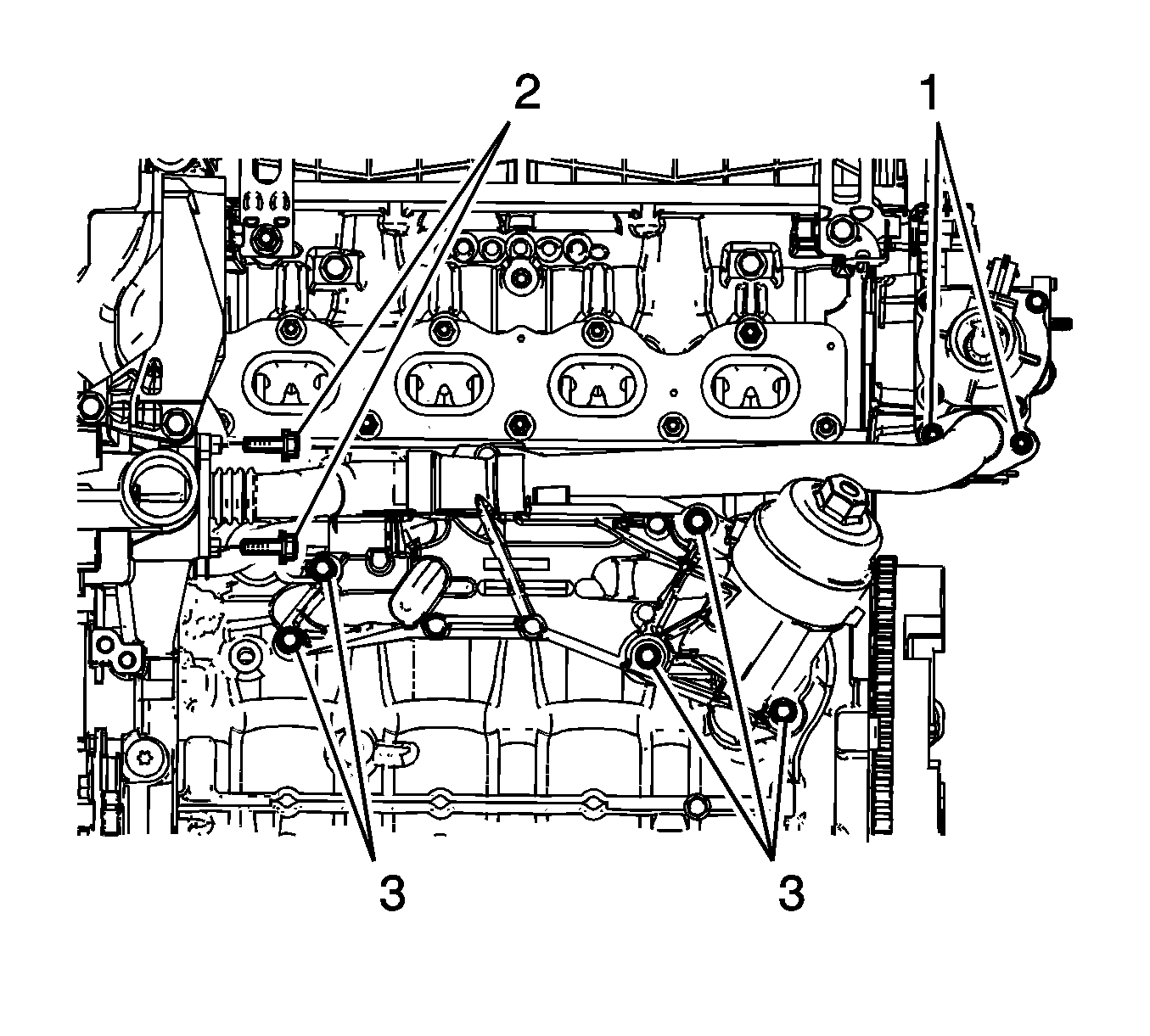

    2. Fig 2: Coolant Pipe Bolts And Engine Coolant Distributor Case
    GM2049564Courtesy of GENERAL MOTORS COMPANY
  2. Insert the coolant pipes to the oil cooler housing with the gasket.
  3. Install the oil cooler tightening bolts (3).

    Tighten

    Tighten the oil cooler tightening bolts to 25 N.m (18 lb ft).

  4. Install the coolant pipe bolts (2) to the engine front cover.

    Tighten

    Tighten the coolant pipe bolts to 8 N.m (71 lb in).

  5. Install the coolant pipe bolts (1) to the engine coolant distributor case.

    Tighten

    Tighten the coolant pipe bolts to 8 N.m (71 lb in).

    6. Fig 3: View of Exhaust Manifold And Catalytic Converter
    GM2049036Courtesy of GENERAL MOTORS COMPANY
  6. Install the exhaust manifold. Refer to Exhaust Manifold with Catalytic Converter Replacement (LUW) .
  7. Refill the engine oil. Refer to Engine Oil and Oil Filter Replacement .
  8. Refill the engine coolant. Refer to Cooling System Draining and Filling .
