Engine Flywheel Replacement

WARNING: This page is about a different variant/trim than selected.

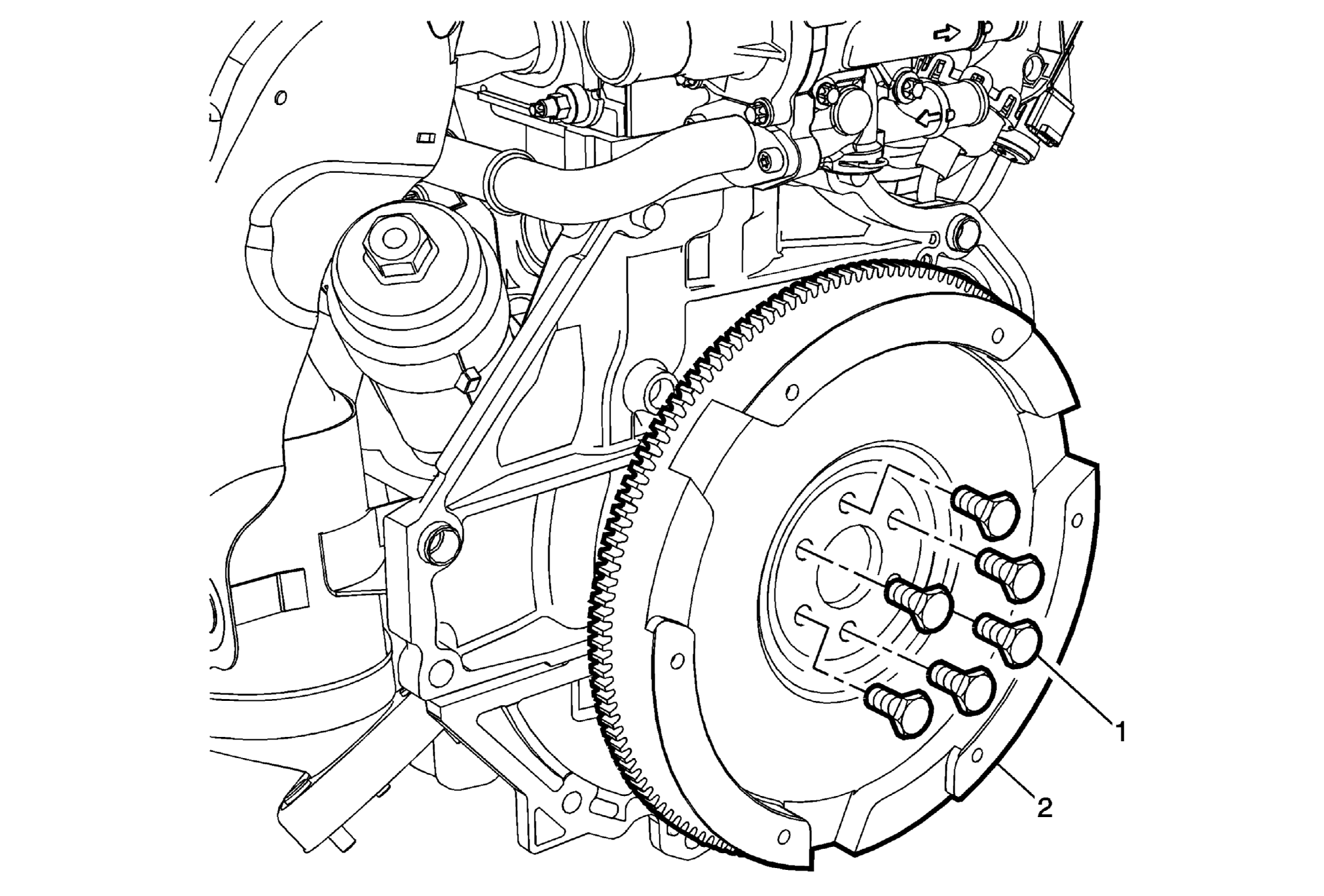

Fig 1: Engine Flywheel & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the clutch pressure and driven Plate . Refer to Clutch Pressure and Driven Plate Replacement (1.8L) . Special Tools EN-652 Flywheel Holder EN-45059 Torque Angle Sensor Kit For equivalent regional tools. Refer to Special Tools .
1	Flywheel Fastener (Qty: 6) CAUTION: Refer to Fastener Caution . Procedure Discard the flywheel fastener and use a NEW fastener for installation. Tighten First pass to 35 N.m (26 lb ft) Second pass to additional 30°. Final pass to an additional 15°.
2	Flywheel Procedure Inspect the engine flywheel for the following: Stress cracks around the engine flywheel. Cracks at welded areas that retain the ring gear onto the engine flywheel. Damaged or missing ring gear teeth. Do not attempt to repair the welded areas that retain the ring gear to the engine flywheel plate. Install a new engine flywheel.

Callout

Component Name

Preliminary Procedure
Remove the clutch pressure and driven Plate . Refer to Clutch Pressure and Driven Plate Replacement (1.8L) .

Special Tools

For equivalent regional tools. Refer to Special Tools .

Flywheel Fastener (Qty: 6)

CAUTION:

Procedure
Discard the flywheel fastener and use a NEW fastener for installation.

Tighten

Flywheel
Procedure
Inspect the engine flywheel for the following:

Stress cracks around the engine flywheel.
Cracks at welded areas that retain the ring gear onto the engine flywheel.
Damaged or missing ring gear teeth.
Do not attempt to repair the welded areas that retain the ring gear to the engine flywheel plate. Install a new engine flywheel.
