Crankshaft Sprocket Replacement

WARNING: This page is about a different variant/trim than selected.

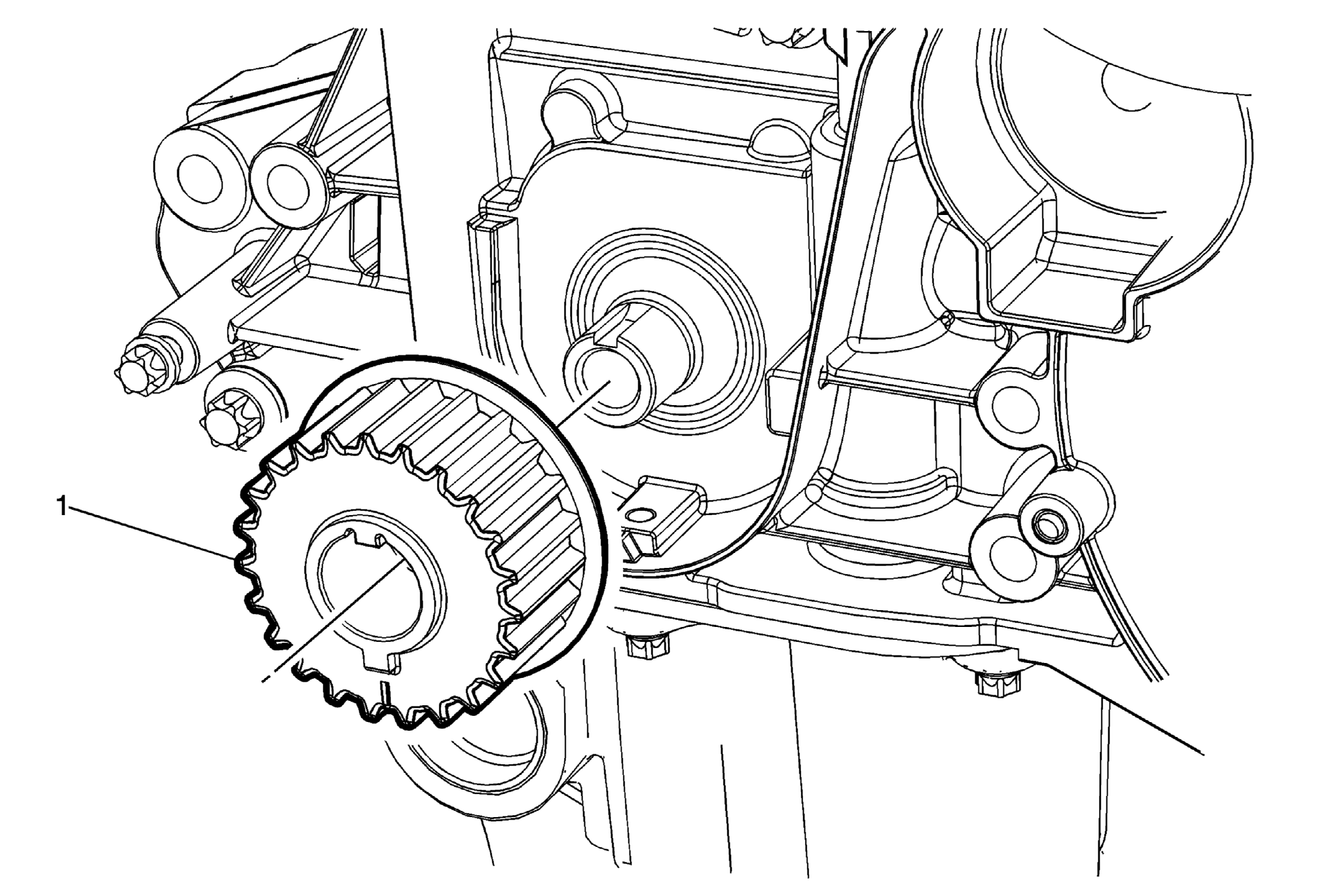

Fig 1: Crankshaft Sprocket
GM2506945Courtesy of GENERAL MOTORS COMPANY
Crankshaft Sprocket Replacement

Callout Component Name
Preliminary Procedure
Remove the timing belt. Refer to Timing Belt Replacement .
1 Crankshaft Sprocket
Procedure
When installing the crankshaft sprocket, the sprocket and the groove must align.
