Automatic Transmission Flex Plate Replacement

WARNING: This page is about a different variant/trim than selected.

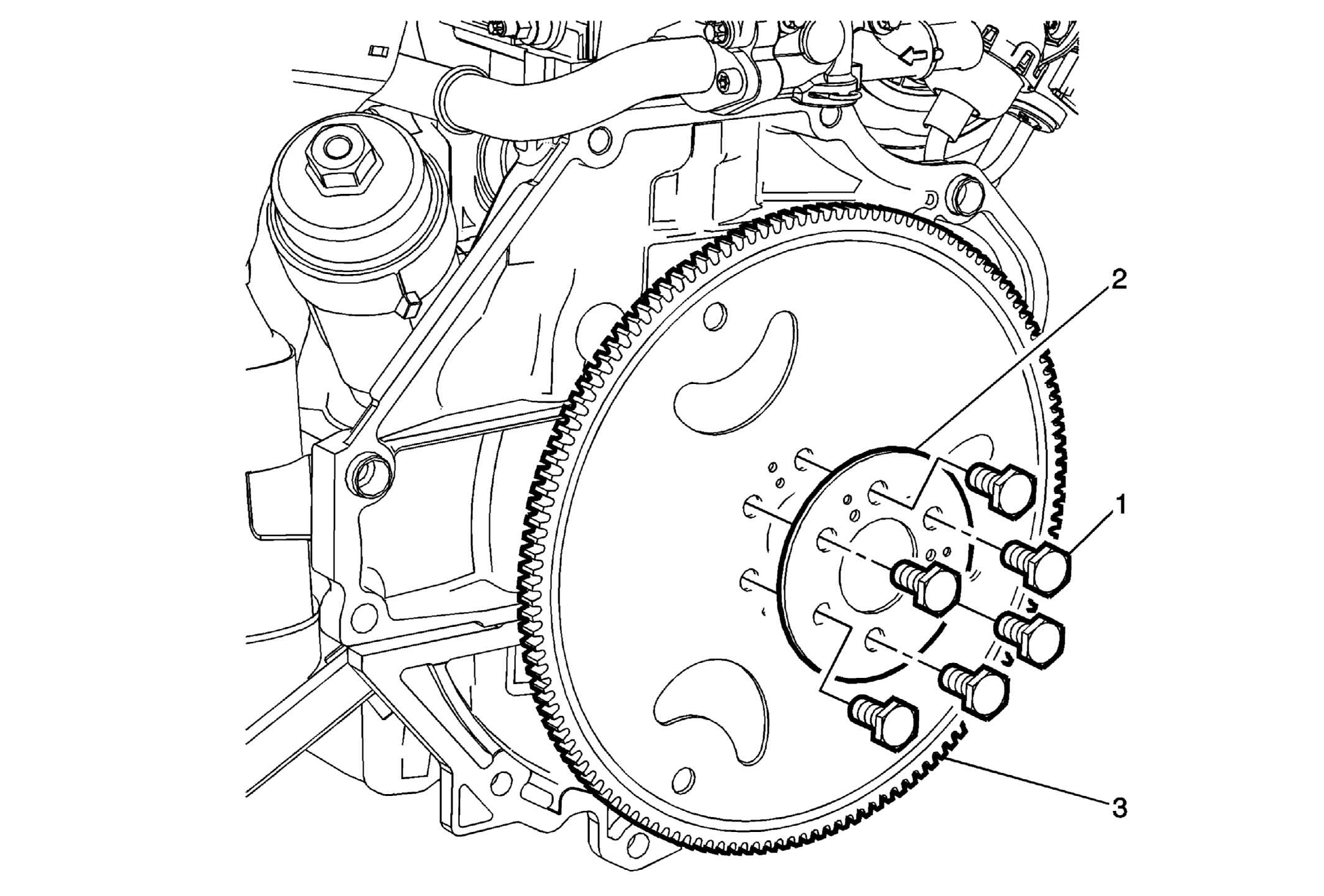

Fig 1: Automatic Transmission Flex Plate & Components
GM2498791Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Flex Plate Replacement

Callout Component Name
Preliminary Procedure
Remove the transmission. Refer to Transmission Replacement (With 1.6L or 1.8L Engine) .
Special Tools
EN 652  Automatic Transmission Flex Plate Holder.
For equivalent regional tools. Refer to Special Tools .
1 Automatic Transmission Flex Plate Fastener (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
  • 60 N.m (44 lb ft)
  • Tighten the bolt an additional 5 degrees.
2 Flex Plate
3 Automatic Transmission Flex Plate
Procedure
Inspect the engine flex plate for the following:
  1. Stress cracks around the engine flex plate.
  2. Cracks at welded areas that retain the ring gear onto the engine flex plate.
  3. Damaged or missing ring gear teeth.
  4. Do not attempt to repair the welded areas that retain the ring gear to the flex plate.
