Power Steering Pump Belt Removal

WARNING: This page is about a different variant/trim than selected.

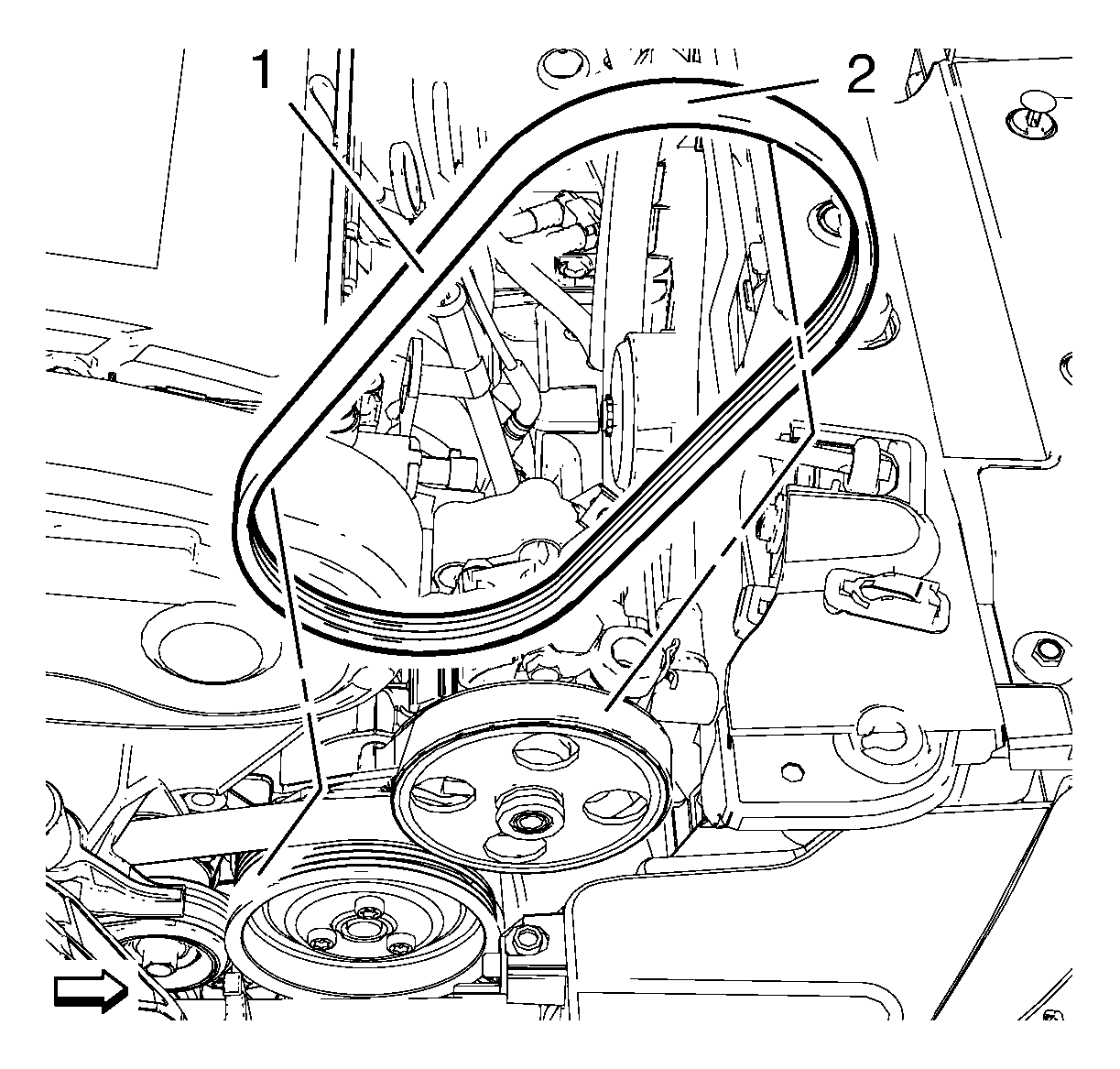

    Fig 1: Power Steering Pump Belt
    GM2028350Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Do not use belt dressing on the drive belt. Belt dressing causes the breakdown of the composition of the drive belt. Failure to follow this recommendation will damage the drive belt.

  1. Cut the power steering pump belt (2) with a appropriate cutting tool at position (1).
  2. Remove the power steering pump belt (2).
