Catalytic Converter Heat Shield Replacement (LUV)

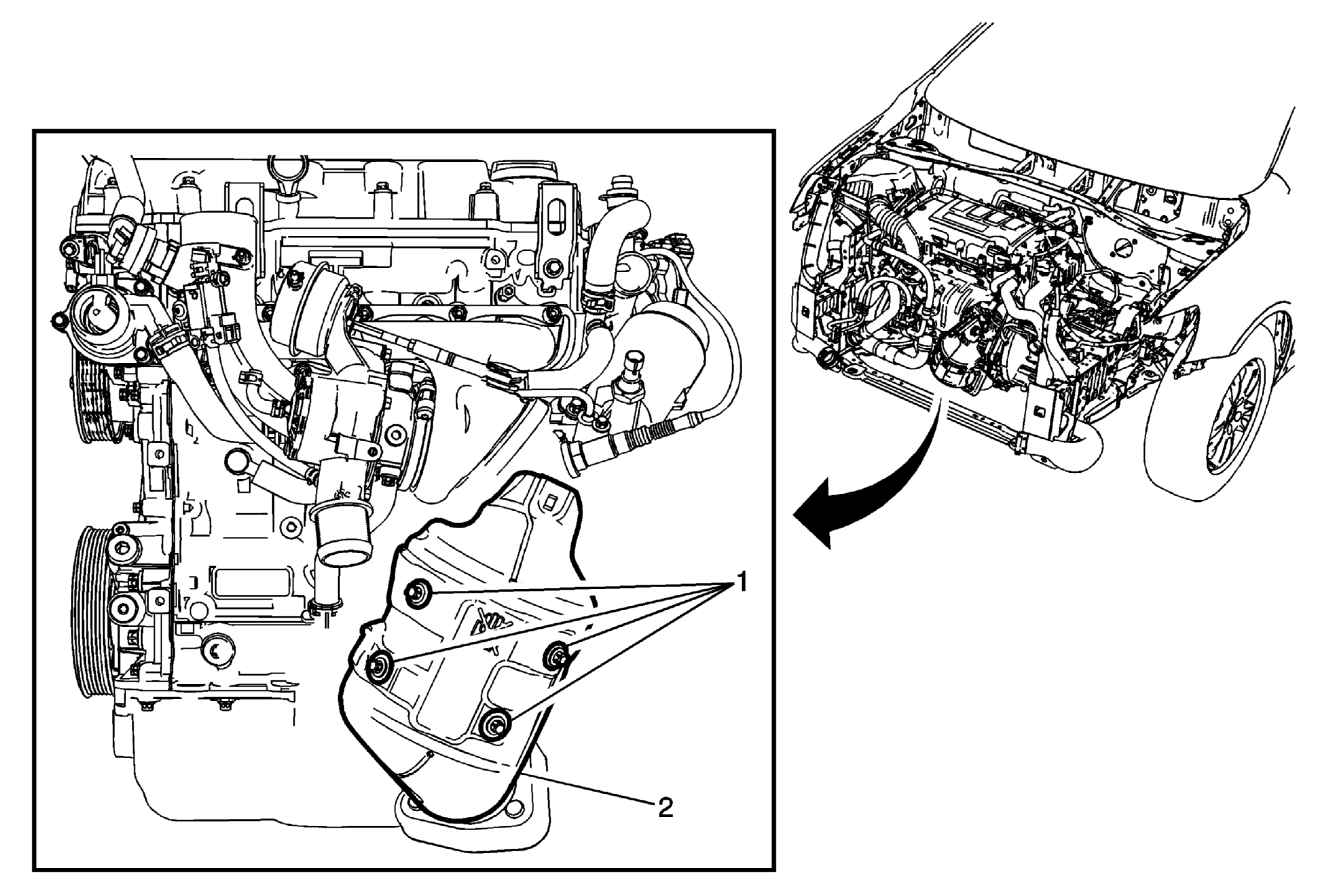

Fig 1: Catalytic Converter Heat Shield & Fasteners (LUV)

Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Heat Shield Replacement (LUV)

Callout	Component Name
WARNING: Refer to Exhaust Service Warning .
1	Catalytic Converter Heat Shield Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in).
2	Catalytic Converter Heat Shield
