Q40 Turbocharger Bypass Solenoid Valve
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 90347618
- Service Connector: 89046833
- Description: 2-Way F 2.8 Junior Power Timer Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-4A (PU) |
J-38125-557 |
60012941 |
7 |
C |
1 |

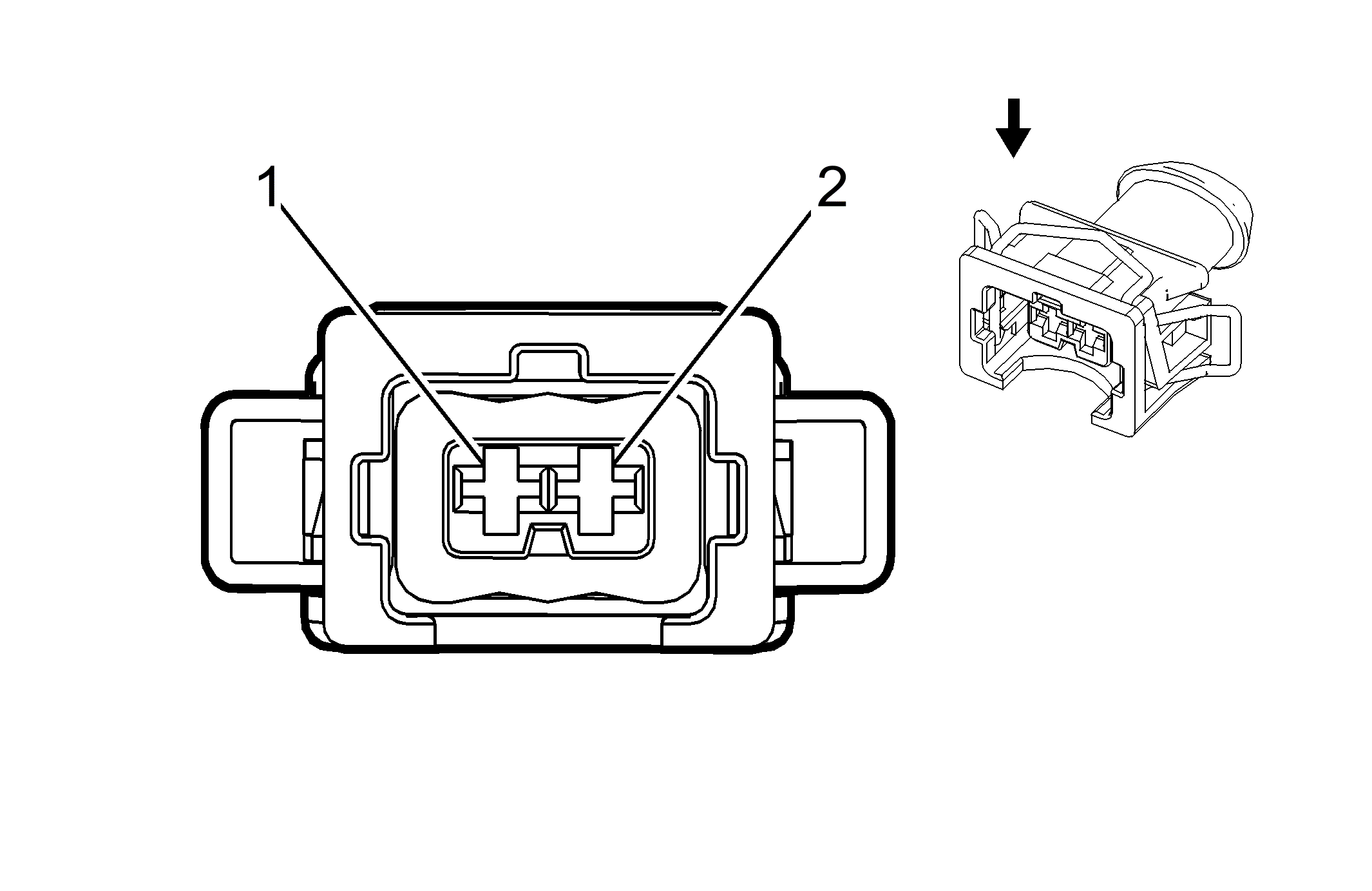

Q40 Turbocharger Bypass Solenoid Valve
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN/YE |
5268 |
Overrun Air Valve Solenoid |
I |
- |
| 2 |
0.75 |
VT/L-BU |
5291 |
Powertrain Main Relay Fused Supply (2) |
I |
- |
