M77P Outside Rearview Mirror Motor - Passenger (DG6)
|
|

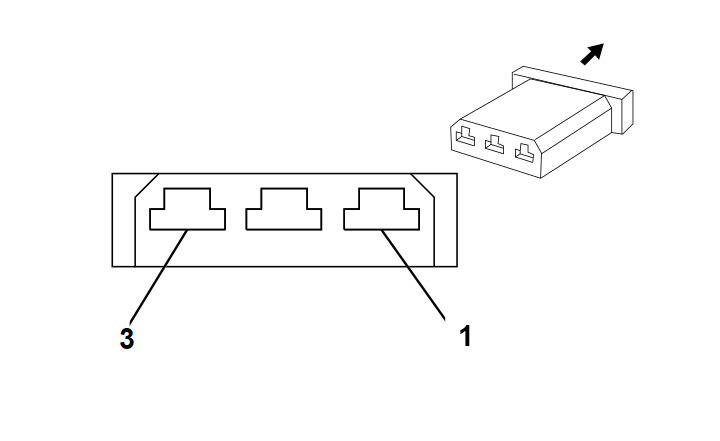

Connector Part Information
- Harness Type: Outside Rearview Mirror - Passenger
- OEM Connector: 925-015
- Service Connector: Service by Component Assembly
- Description: 3-way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Component Assembly |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
M77P Outside Rearview Mirror Motor - Passenger (DG6)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BK |
3396 |
Co-Driver Mirror Motor Right (+) Left (-) Control |
I |
- |
| 2 |
- |
BK |
3398 |
Co-Driver Mirror Motor Common Control |
I |
- |
| 3 |
- |
BK |
3397 |
Co-Driver Mirror Motor Up (+) Down (-) Control |
I |
- |
