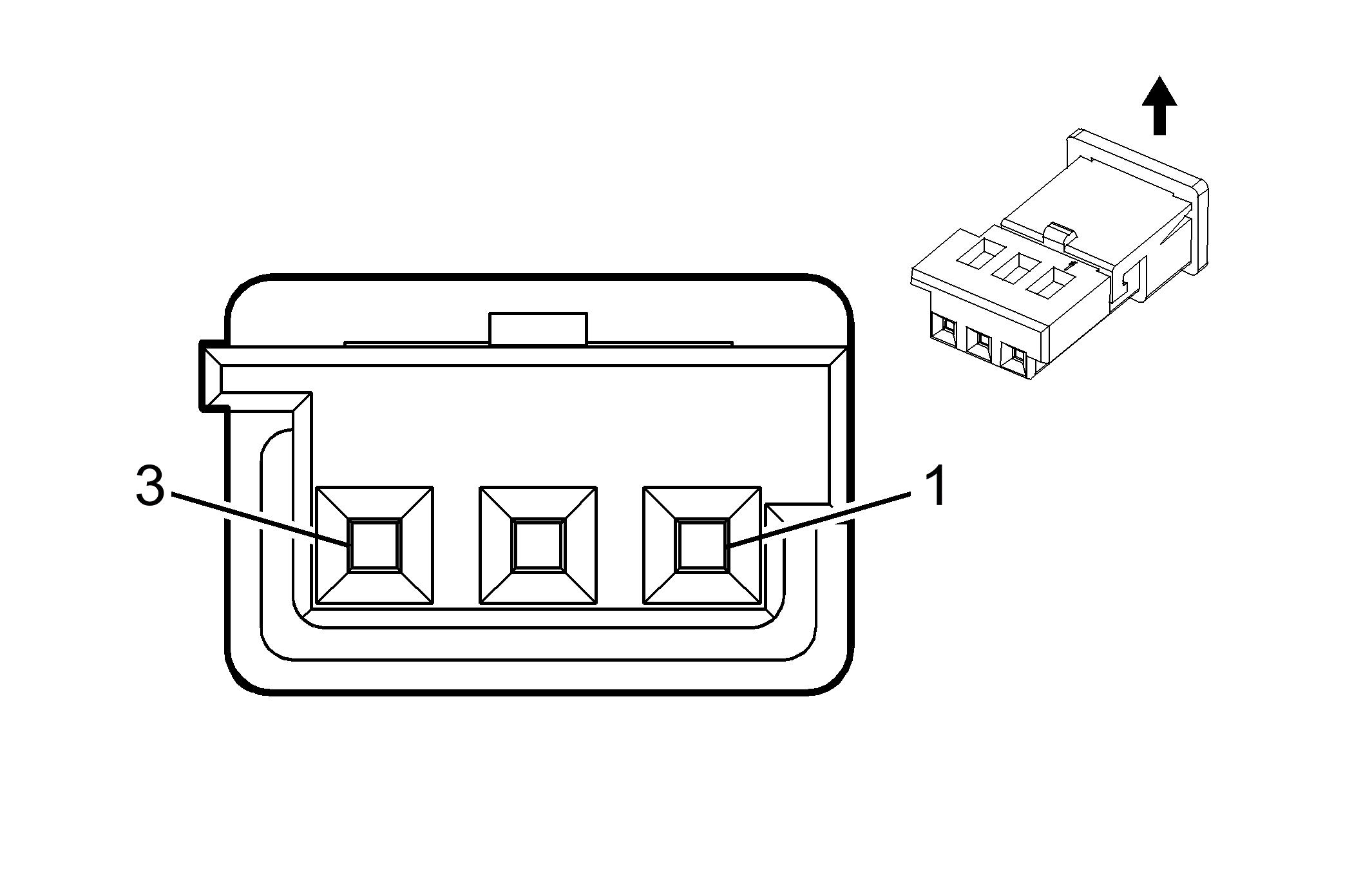

K89 Immobilizer Control Module
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 968705-4
- Service Connector: 13395419
- Description: 3-Way F Micro-Quadlock Series (VT)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575585 |
J-35616-64B (L-BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
K89 Immobilizer Control Module
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
L-GN/GY |
3277 |
Vehicle Anti-Theft System Immobilizer Return |
I |
- |
| 2 |
0.35 |
L-GN/VT |
7533 |
Linear Interconnect Network Bus 11 |
I |
- |
| 3 |
0.35 |
GY/BK |
3276 |
Vehicle Anti-Theft System Immobilizer Supply Voltage |
I |
- |
