E5AA Tail/Stop Lamp - Left
|
|

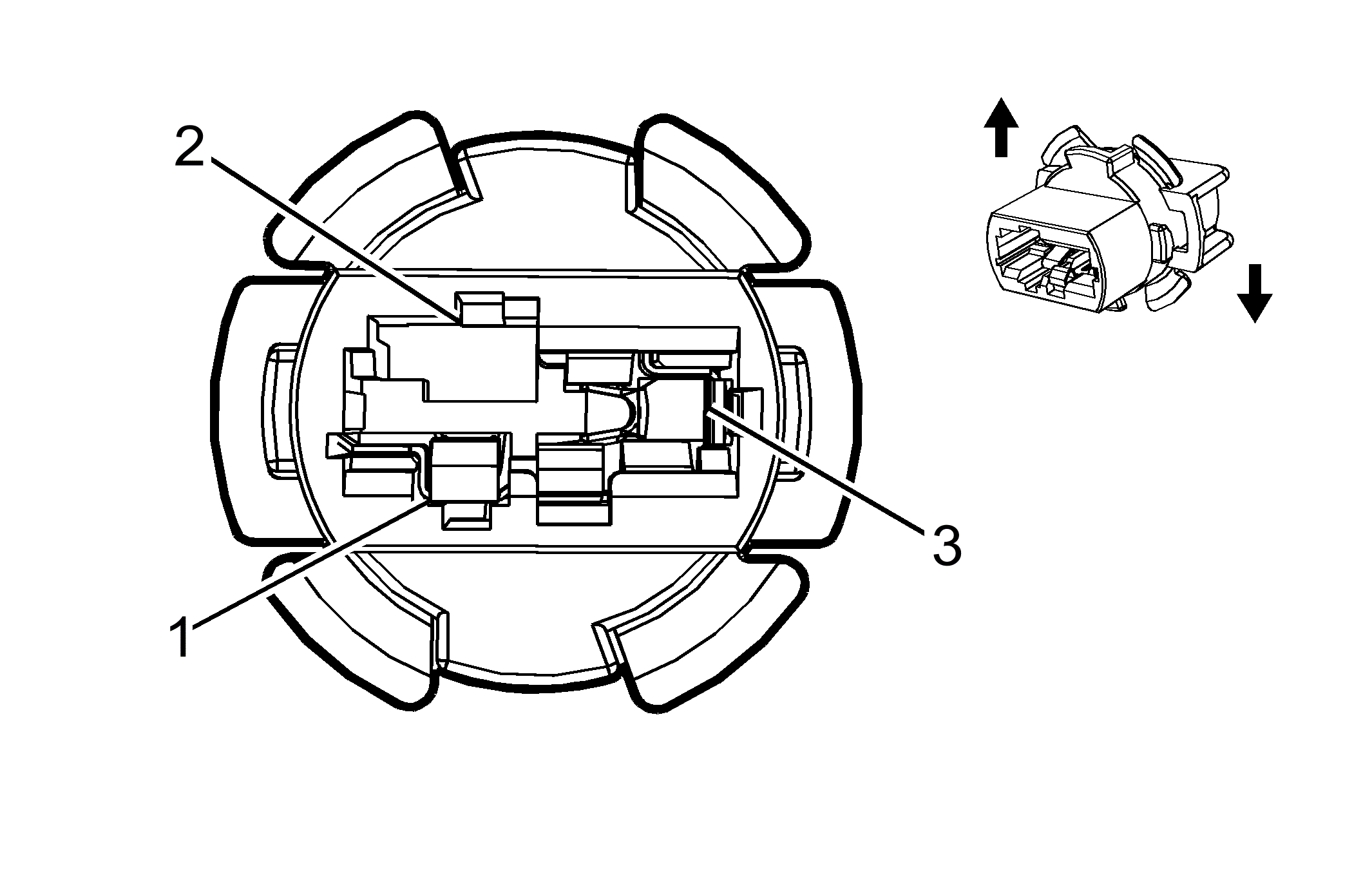

Connector Part Information
- Harness Type: Tail Lamp
- OEM Connector: 5098-5100
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F Lamp Socket (BK), Sealed
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Service by Harness - See Part Catalog |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
E5AA Tail/Stop Lamp - Left
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
L-BU |
- |
Not Used |
I |
- |
| 2 |
0.5 |
RD |
2509 |
Left Rear Park Lamp Supply Voltage |
I |
- |
| 3 |
0.5 |
BK/WH |
1050 |
Ground |
I |
- |
