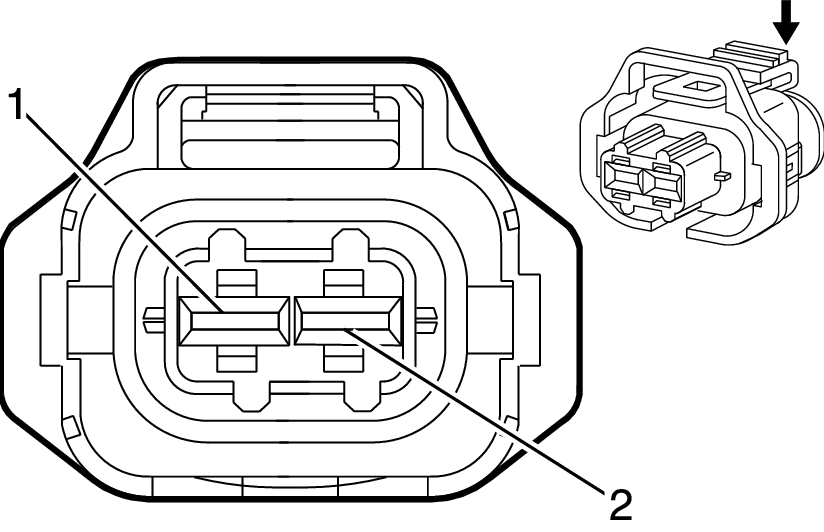

B68 Knock Sensor (LUW/LWE)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 24456972
- Service Connector: 13580950
- Description: 2 F 2.8 Junior Power Timer Series, Sealed NA
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-35 (VT) |
J-38125-36 |
Not Available |
Not Available |
Not Available |
Not Available |
B68 Knock Sensor (LUW/LWE)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/GY |
496 |
Knock Sensor Signal (1) |
I |
- |
| 2 |
0.5 |
BK/YE |
1716 |
Low Reference |
I |
- |
