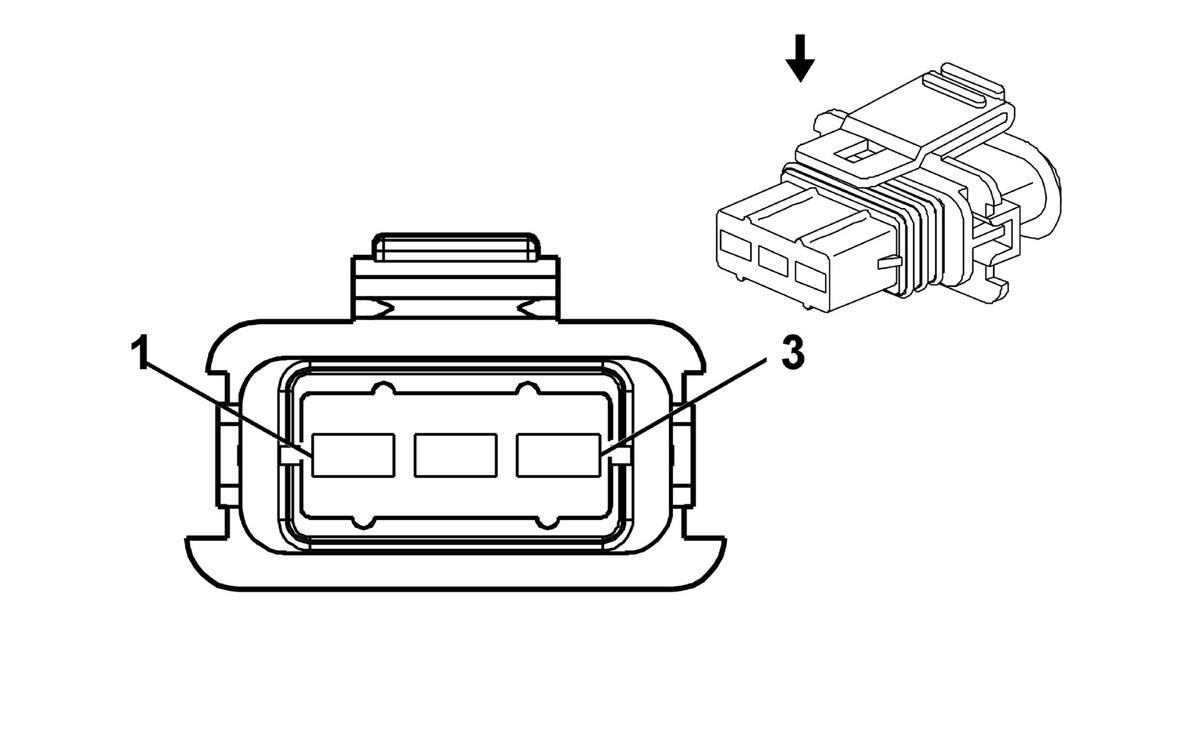

B14A Transmission Output Shaft Speed Sensor (M26)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 90508602
- Service Connector: 13355796
- Description: 3-Way F 2.8 Junior Power Timer Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
B14A Transmission Output Shaft Speed Sensor (M26)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/YE |
401 |
Vehicle Speed Sensor Low Reference |
I |
- |
| 2 |
0.5 |
YE |
400 |
Vehicle Speed Sensor Signal |
I |
- |
| 3 |
0.5 |
YE/BN |
3604 |
Transmission Output Speed Sensor Supply |
I |
- |
