Transmission Rear Case Disassemble
Transmission Rear Case Disassemble

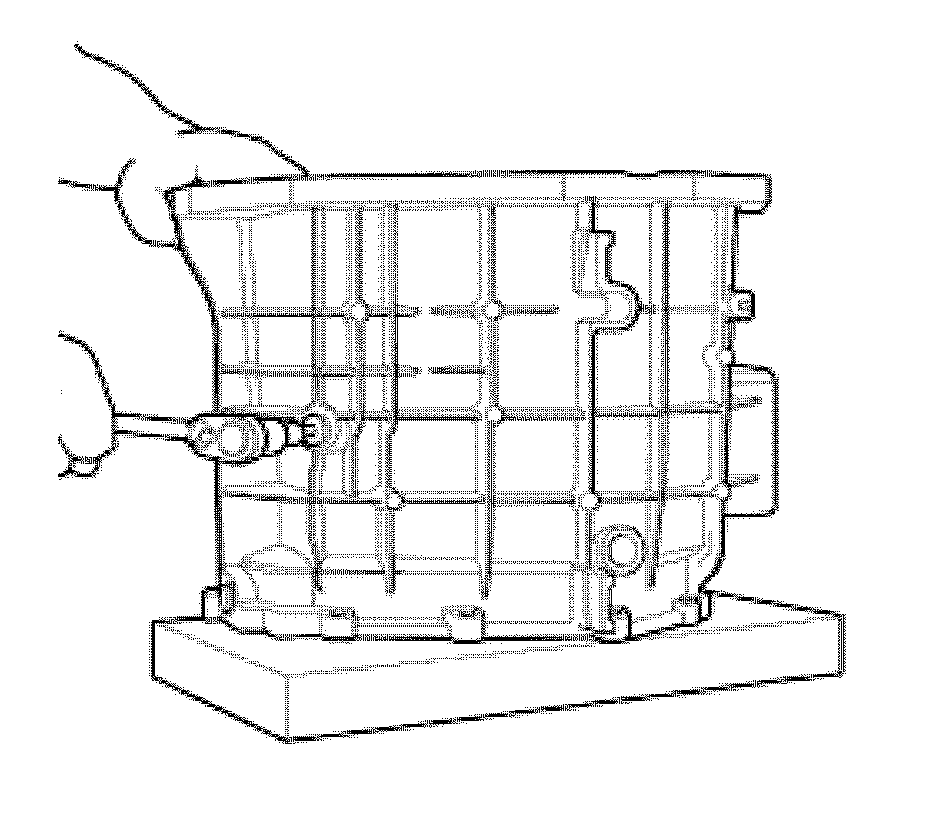

1. Using a GMM Allen wrench, remove the reverse gear support screw.
2. Remove the reverse shaft support.

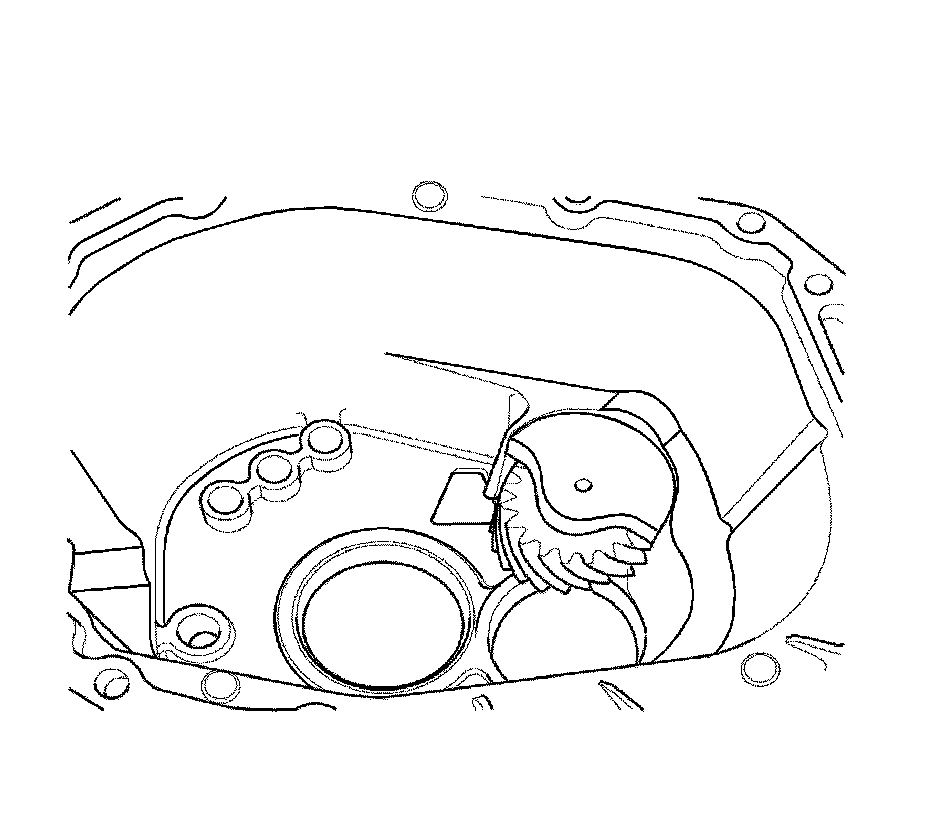

3. Remove the reverse gear, 2 roller cages, and spacer.
Transmission Rear Case Disassemble
1. Using a GMM Allen wrench, remove the reverse gear support screw.
2. Remove the reverse shaft support.
3. Remove the reverse gear, 2 roller cages, and spacer.
